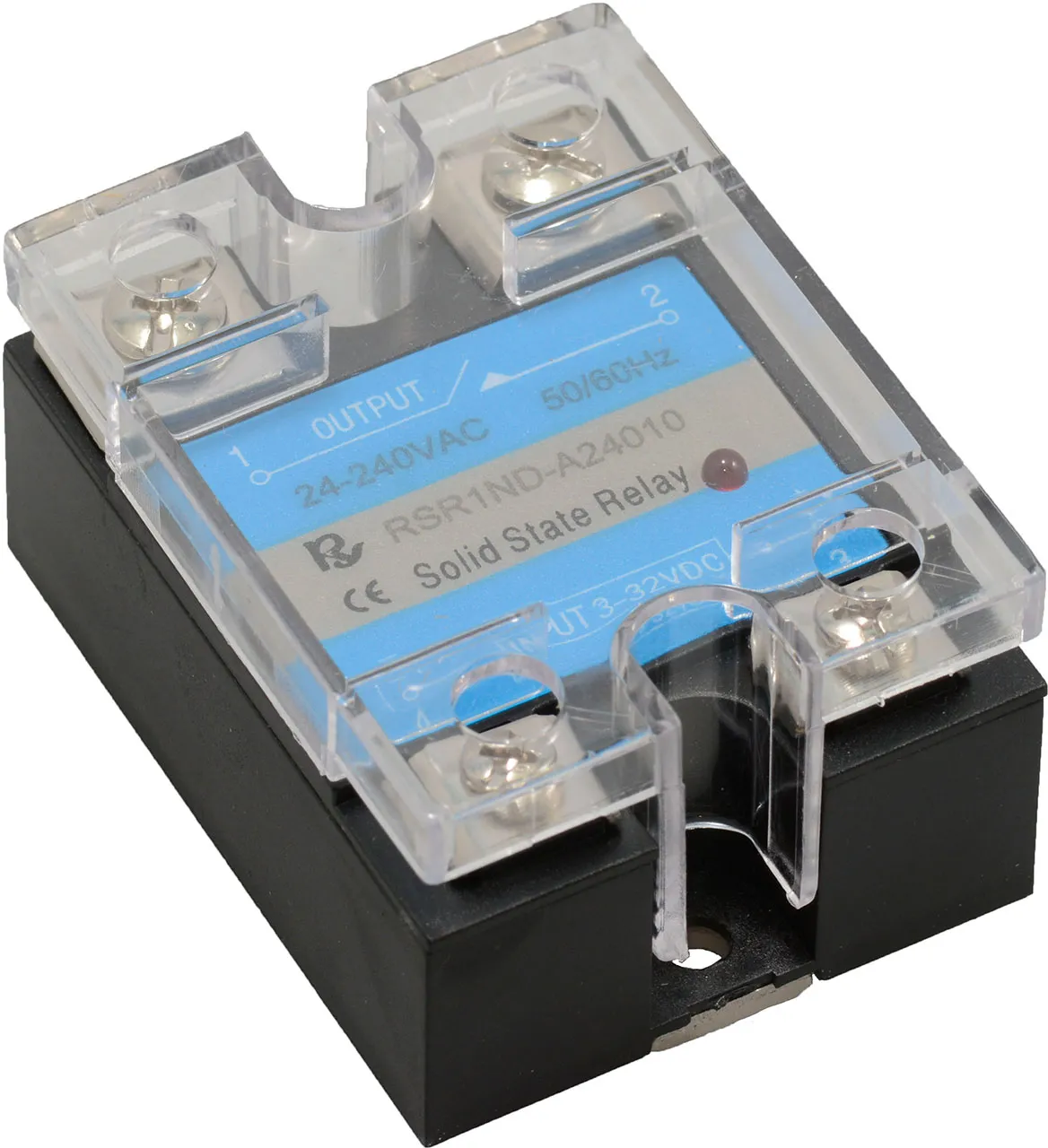

DC-AC Solid State Relay 240VAC 10A with LED Indicator

Features

  • Zero voltage turn-on, zero current turn-off
  • Input LED indicator
  • Output snubber circuit protection
  • TTL and CMOS compatible
  • High dv/dt and high blocking voltage
  • UL: E126157

Specifications

  • Load voltage: 240 VAC
  • Load current: 10 A
  • Control voltage: 3 to 32 VDC
  • Control current: 3 to 25 mA (DC)
  • Size: 2.26"L x 1.1"H

Product Identification

Family:RSR1
Product Type:DC-AC Solid State Relay

Dimensions & Appearance

Height:28 mm
Width:40 mm
Length:57.4 mm

Features

Circuit Arrangement:1 Form A
I/O Isolation Voltage:2500V
Pins:4
Control Voltage:3 VDC to 32 VDC
Contact Current:10 A
Terminal Type:Screw Terminal
Contact Voltage:240 VAC
Contact Form:SPST
,
