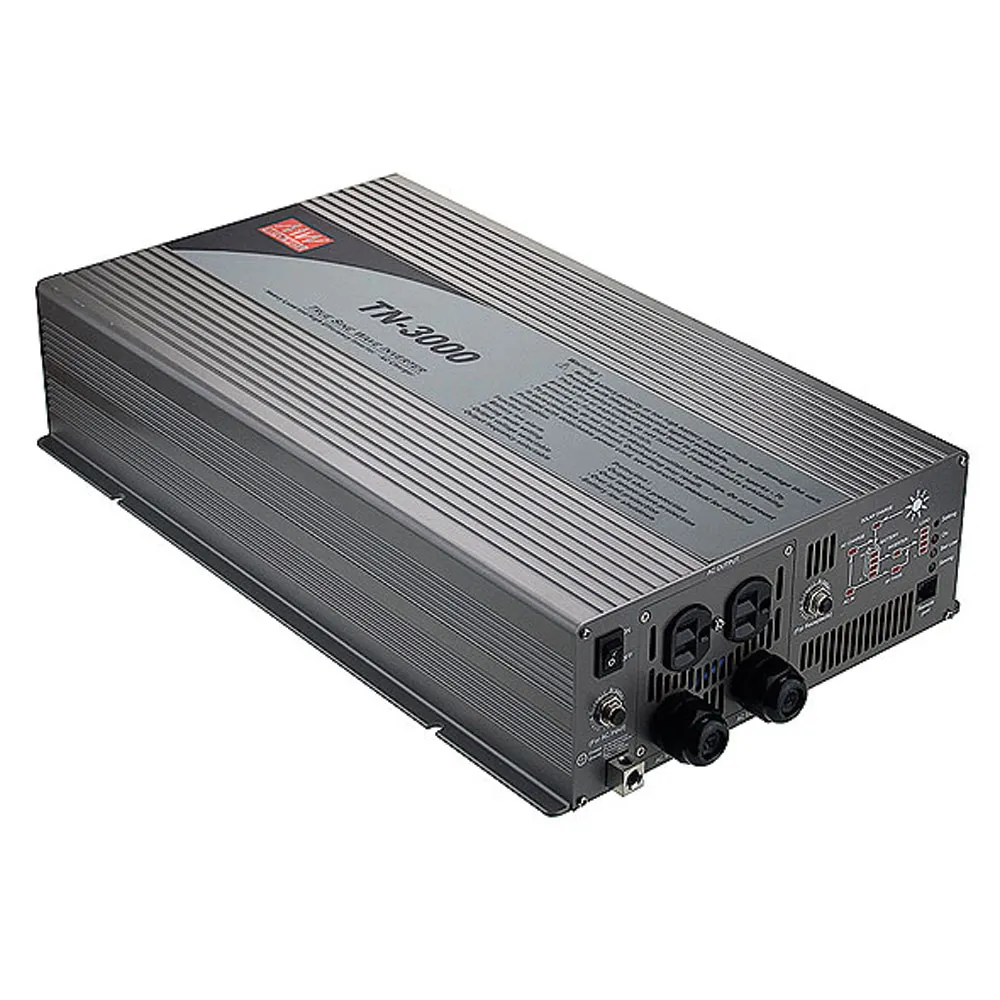

3000W True Sine Wave DC-AC Inverter with Solar Charger

3000W,42 to 60VDC

Features:
  • Europe outlet
  • Output:230VAC
  • True sine wave output (THD<3%)
  • High surge power up to 6000W
  • U.P.S. mode and energy saving mode (selectable)
  • High efficiency up to 92%
  • Power ON-OFF switch
  • Standby saving mode can be selectable
  • Front panel indicator for operation status
  • Thermostatically controlled cooling fan
  • Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp./ Output short / Input polarity reverse / Overload / AC circuit breaker
  • Application : Home appliance, power tools, office and portableequipment, vehicle and yacht ...etc.
  • Built-in solar / AC charger
  • 3 years warranty

    • Product Identification

    Product Type:True Sine DC-AC Inverter with Solar Charger
    Manufacturer Series:TN-3000

    Compliance

    Agency Approvals: CB, CE, EAC, UKCA, FCC, FCC, CB, CE, EAC, UKCA

    Dimensions & Appearance

    Color:Gray
    Width:11.16 in.
    Height:3.94 in.
    Length:18.38 in.
    Mounting:Chassis

    Operating conditions

    Minimum Operating Temperature:0°C
    Maximum Operating Temperature:40°C

    Input

    Input Frequency:50 Hz, 60 Hz
    Input Voltage:48 VDC
    Input Voltage Range:42 VDC to 60 VDC
    Maximum Input Current:75 A

    Output

    Number of Outputs:1
    Output Connector Type:Euro Plug
    Output Voltage:200 VAC, 220 VAC, 230 VAC, 240 VAC
    Output Current:N/A

    Features

    AC Power Cord:NOT INCLUDED
    Efficiency:92%
    Power Rating:3000 W
    ,
