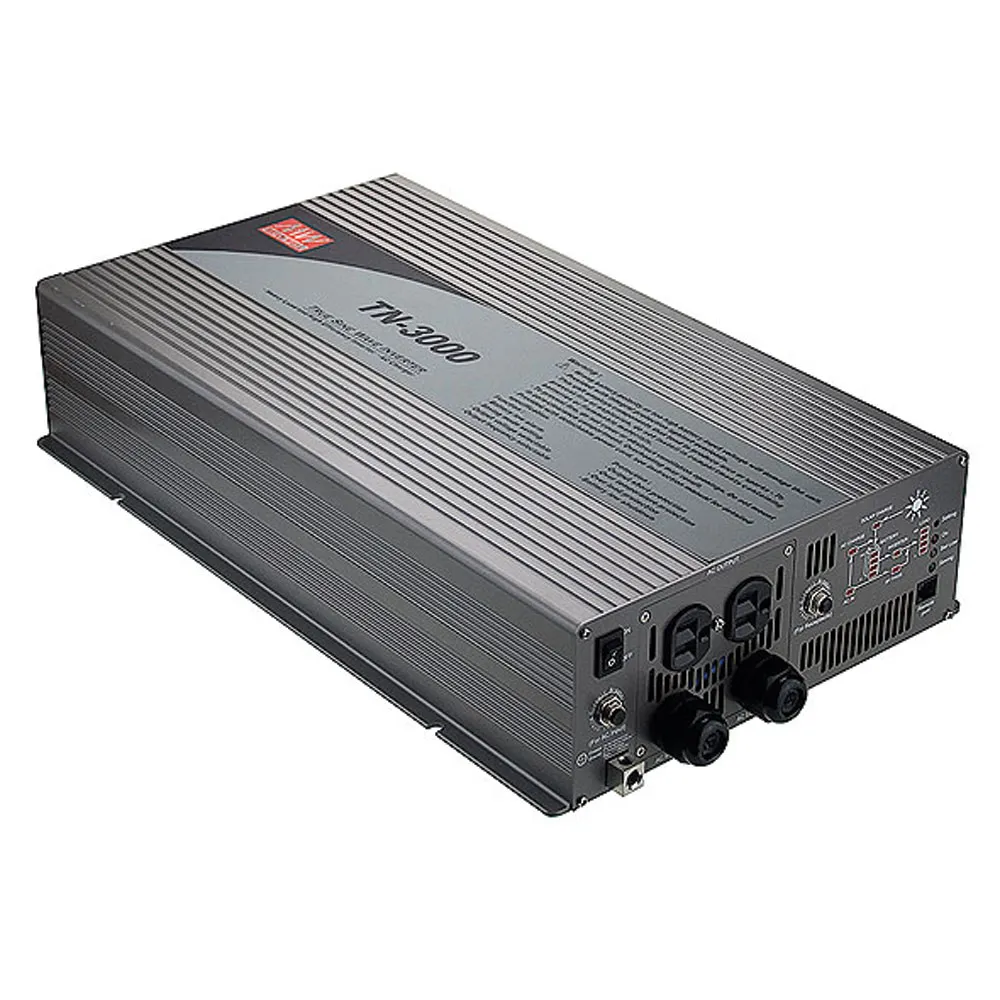

3000W True Sine Wave DC-AC Inverter with Solar Charger
3000W,42 to 60VDCFeatures
- USA outlet
- 110V output
- True sine wave output (THD<3%)
- High surge power up to 6000W
- U.P.S. mode and energy saving mode (selectable)
- High efficiency up to 92%
- Power ON-OFF switch
- Standby saving mode can be selectable
- Front panel indicator for operation status
- Thermostatically controlled cooling fan
- Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp./ Output short / Input polarity reverse / Overload / AC circuit breaker
- Application : Home appliance, power tools, office and portable equipment, vehicle and yacht, etc.
- Built-in solar / AC charger
- 3 years warranty
Product Identification
Product Type:True Sine DC-AC Inverter with Solar Charger
Manufacturer Series:TN-3000
Compliance
Agency Approvals: CE, EAC, UKCA, FCC, FCC, CE, EAC, UKCA
Dimensions & Appearance
Color:Gray
Width:11.16 in.
Height:3.94 in.
Length:18.38 in.
Mounting:Chassis
Operating conditions
Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C
Input
Input Frequency:50 Hz, 60 Hz
Input Voltage:48 VDC
Input Voltage Range:42 VDC to 60 VDC
Maximum Input Current:75 A
Output
Number of Outputs:1
Output Connector Type:NEMA 5-15R
Output Voltage:100 VAC, 110 VAC, 115 VAC, 120 VAC
Output Current:N/A
Features
AC Power Cord:NOT INCLUDED
Efficiency:91%
Power Rating:3000 W
