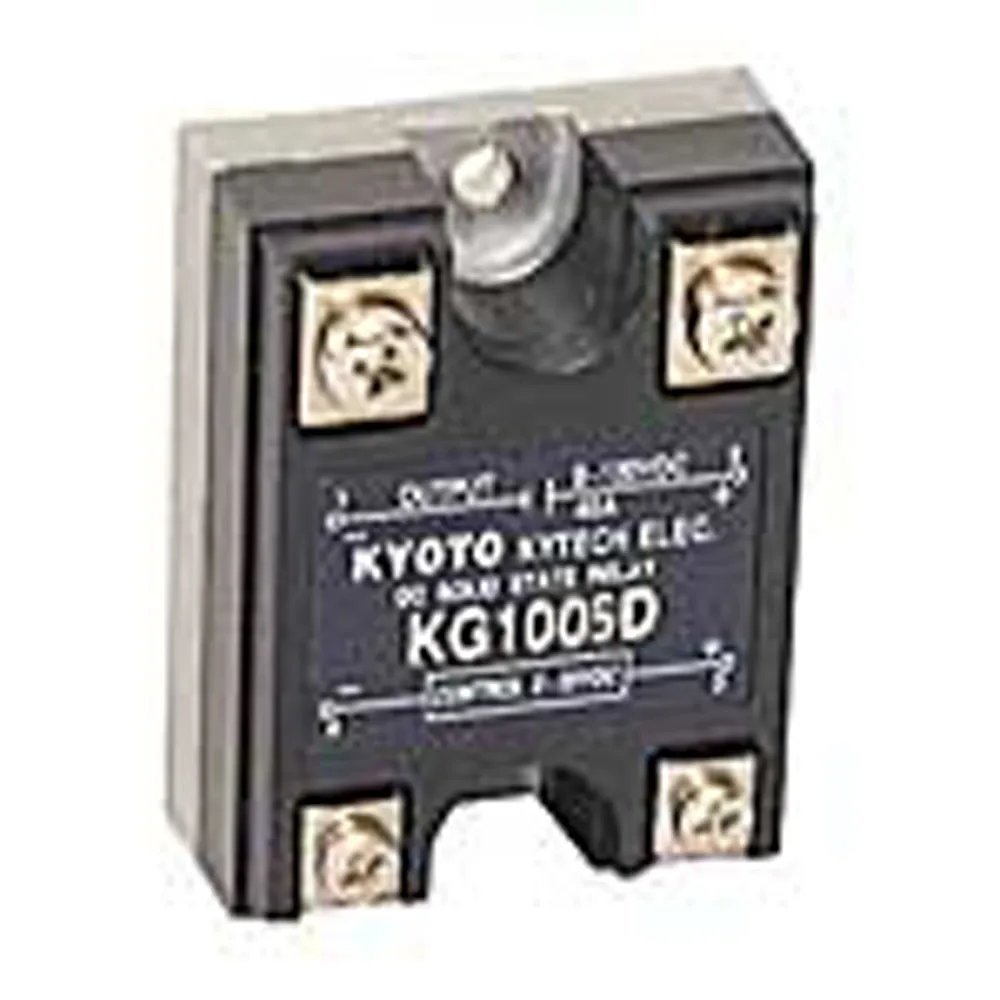

DC Solid State Relay
Designed for the appliance and temperature control markets, these relays are also well suited for automotive load management.Features
- Control voltage range: 3-32VDC
- Contact form: SPST
- Contact voltage: 120 VDC
- Max load current: 5A
- Size: 2.3"L x 1.7"W x 0.98"H
- 4-terminal package
- Terminal type: Screw terminal
- Built-in heat sink
- Agency approvals: CE
Product Identification
Product Type:DC/DC Solid State Relay
Family:KG
Dimensions & Appearance
Height:25 mm
Width:43.5 mm
Length:57 mm
Features
I/O Isolation Voltage:2500V
Pins:4
Control Voltage:3 VDC to 32 VDC
Contact Voltage:120 VDC
Contact Current:5 A
Terminal Type:Screw Terminal
Contact Form:SPST
