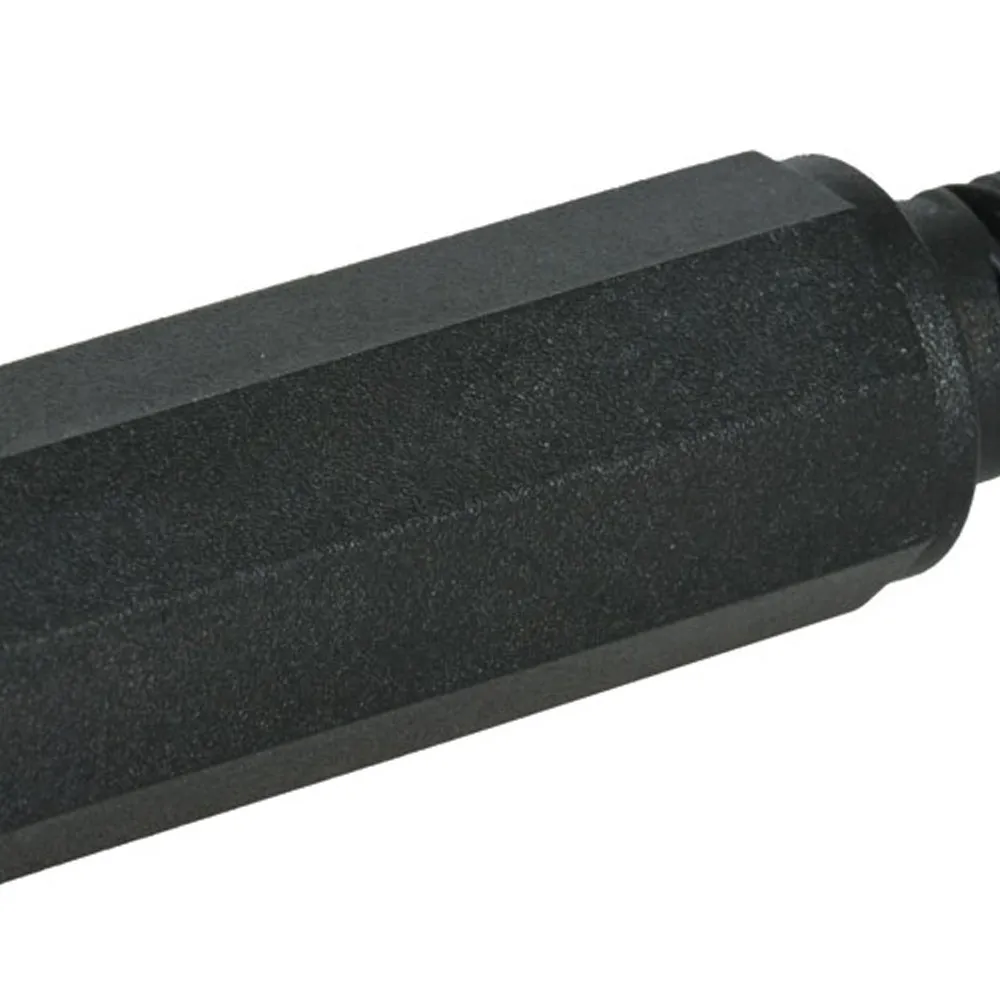

DC Power Jack Inline 2.1mm with Strain Relief

Features
  • Maximum Rating: 5A 12V DC
  • Jack type: 2.1mm male
  • Cable mounting
  • Solder eyelet terminals
  • Size: 57.5mm length x 12.6mm diameter (body)
  • Strain Relief: 0.235" ID x 0.70" L (5.96 mm ID x 17.9 mm L)

Product Identification

Product Type:DC Power Jack
Manufacturer Series:ValuePro

Dimensions & Appearance

Mounting Type:Cable Mount
Body Orientation:Straight
Body/Shell Style:Jack

Features

Pin/Inner Diameter (mm):2.1mm
Voltage Rating:12 VDC
Termination:Solder Cup
Outer Diameter:5.5mm
Current Rating:5 A
,
