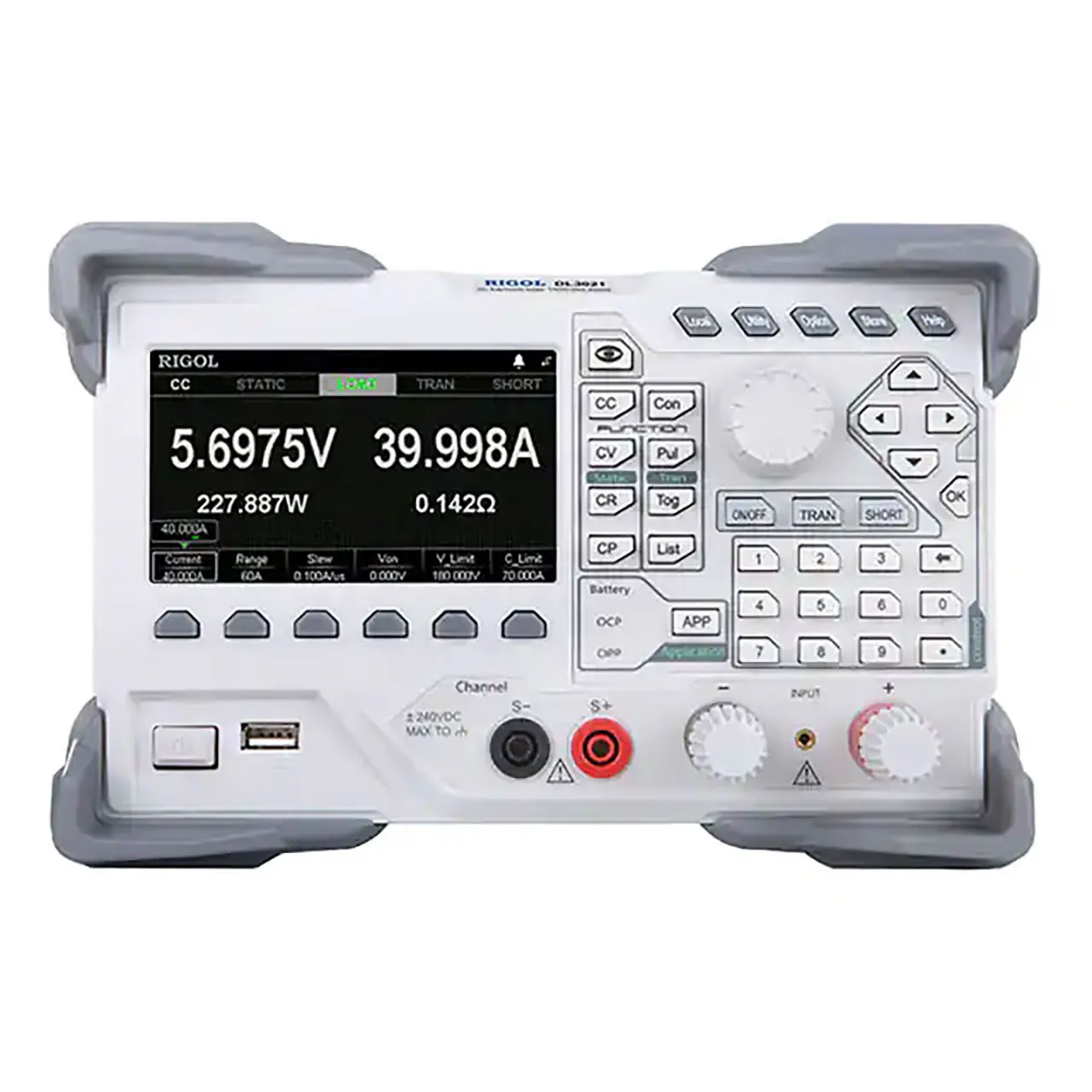

DC Electronic Load 1 Channel 150V 40A 200W

Features

• Programmable DC Electronic Load
• Dynamic mode: up to 30 kHz
• Adjustable current rising speed: 0.001 A/ s to 5 A/ s
• Min. readback resolution: 0.1 mV, 0.1 mA
• 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
• Overvoltage/overcurrent/overpower/overtemperature/reverse voltage protection
• 4 static modes: CC, CV, CR, CP
• 3 dynamic modes: continuous, pulsed, toggled
• List function supports editing as many as 512 steps
• Battery test function, OCP test, OPP test, factory test function, etc.
• Short-circuit test function
• Power-off memory function
• Built-in RS232/USB/LAN communication interface

Specifications

• Voltage: 0 to 150 V
• Current: 0 to 40 A
• Power: Up to 200 W
• Minimum Operating Voltage: 40 A @ 1 V
