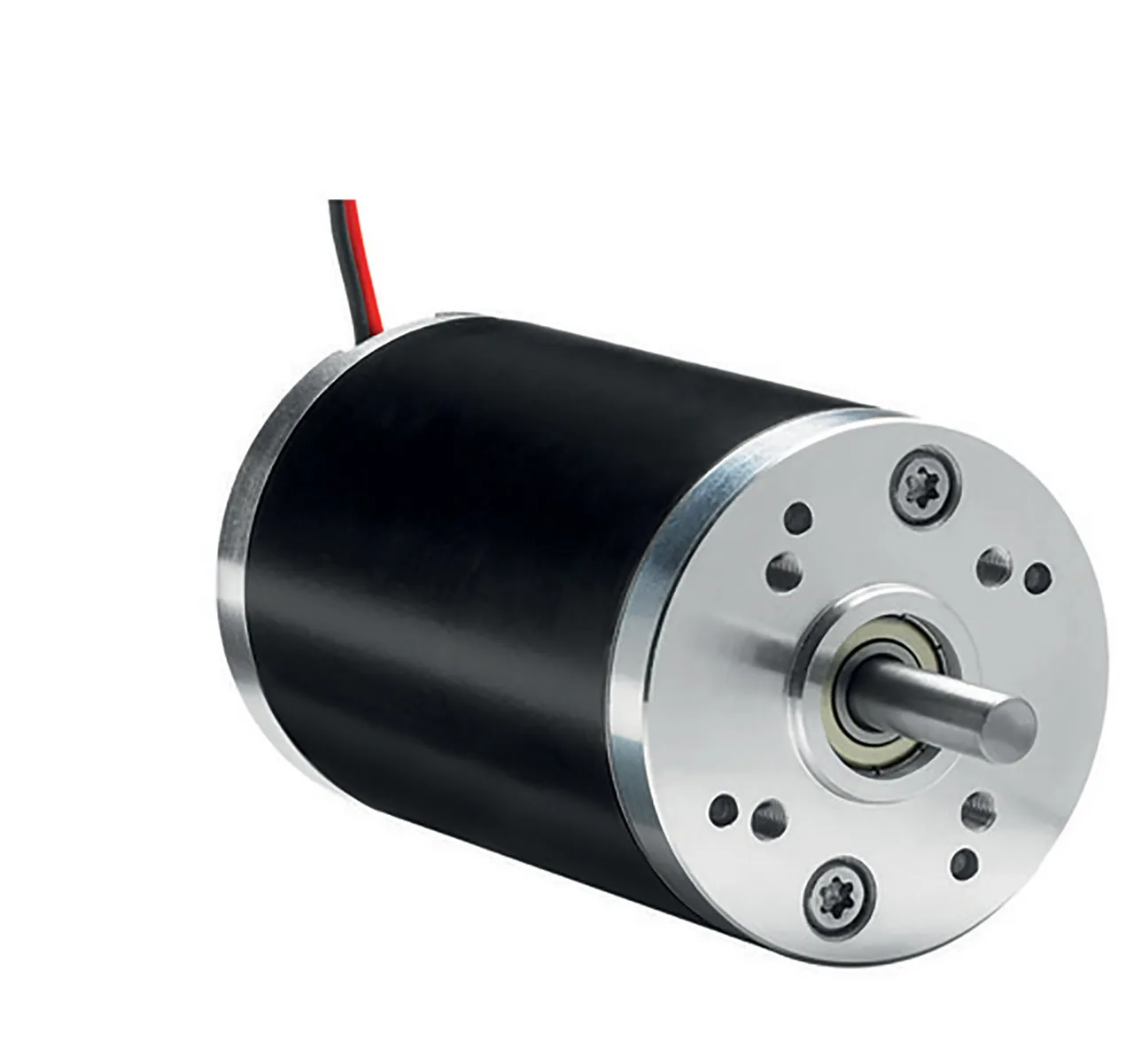

DC Brush Motor 898300 3600Rpm VDC-24 Reversible Shaft-8 Filter-B
Features
- Product Type: DC Motor
- Manufacturer Series: DCmind, 89830
- Function: Standard
- Motor Drive Type: Brushed
- Voltage Rating: 24 VDC
- Speed: 3000 RPM
- Holding Torque: 25.49 oz-in (180 mNm)
- Power Rating: 57W
- Size: Round - 2.488" Dia (63.20mm)
- Shaft Diameter: 0.315" (8.00mm)
- Shaft Length: 0.984" (25.00mm)
- Termination Style: Wire Leads
- Minimum Operating Temperature: -30°C
- Maximum Operating Temperature: 70°C
- Harmonized Code: 8501310099
- ECCN: EAR99
Overview
DC Brush Motor 898300 3600Rpm VDC-24 Reversible Shaft-8 Filter-B.
