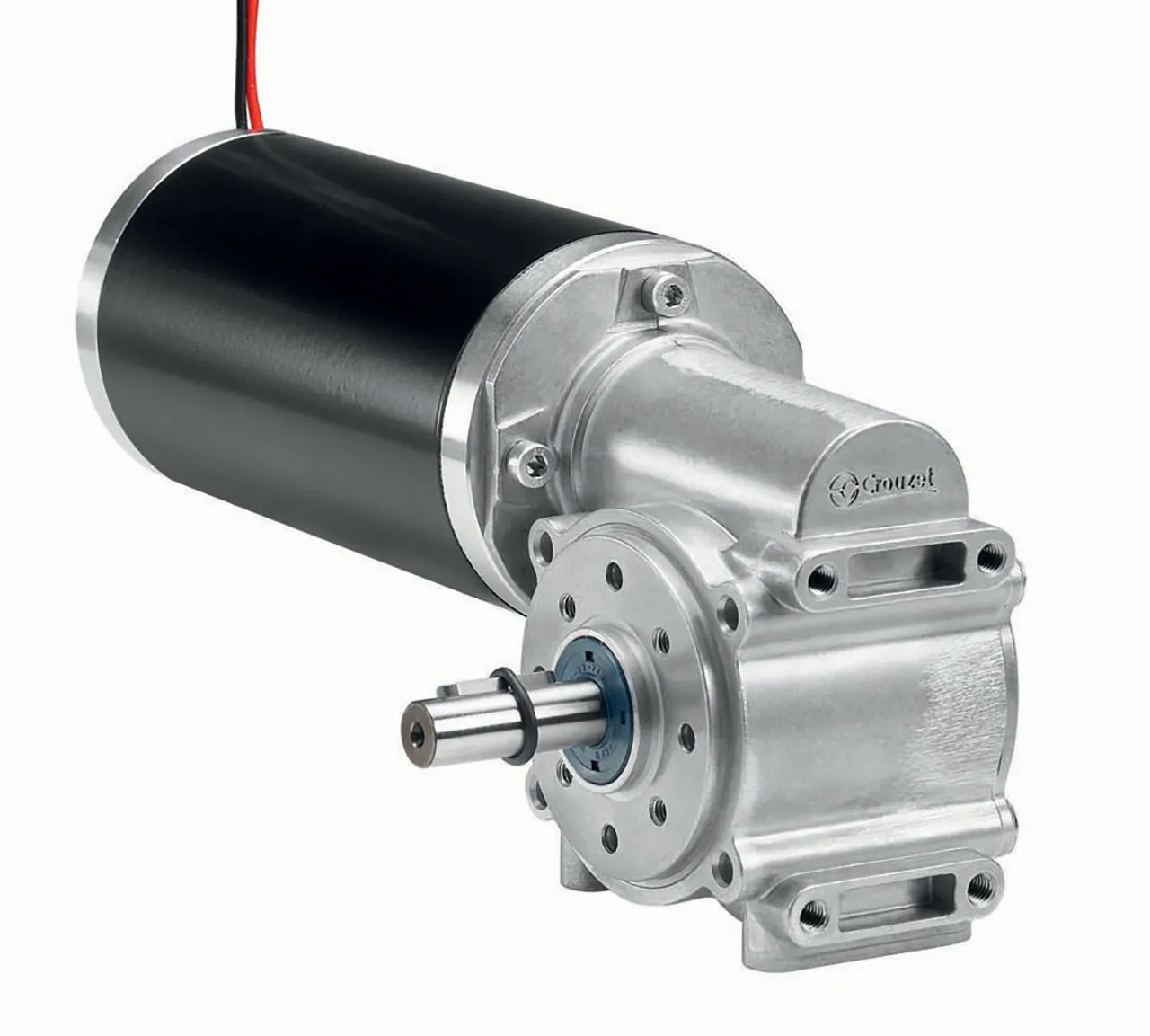

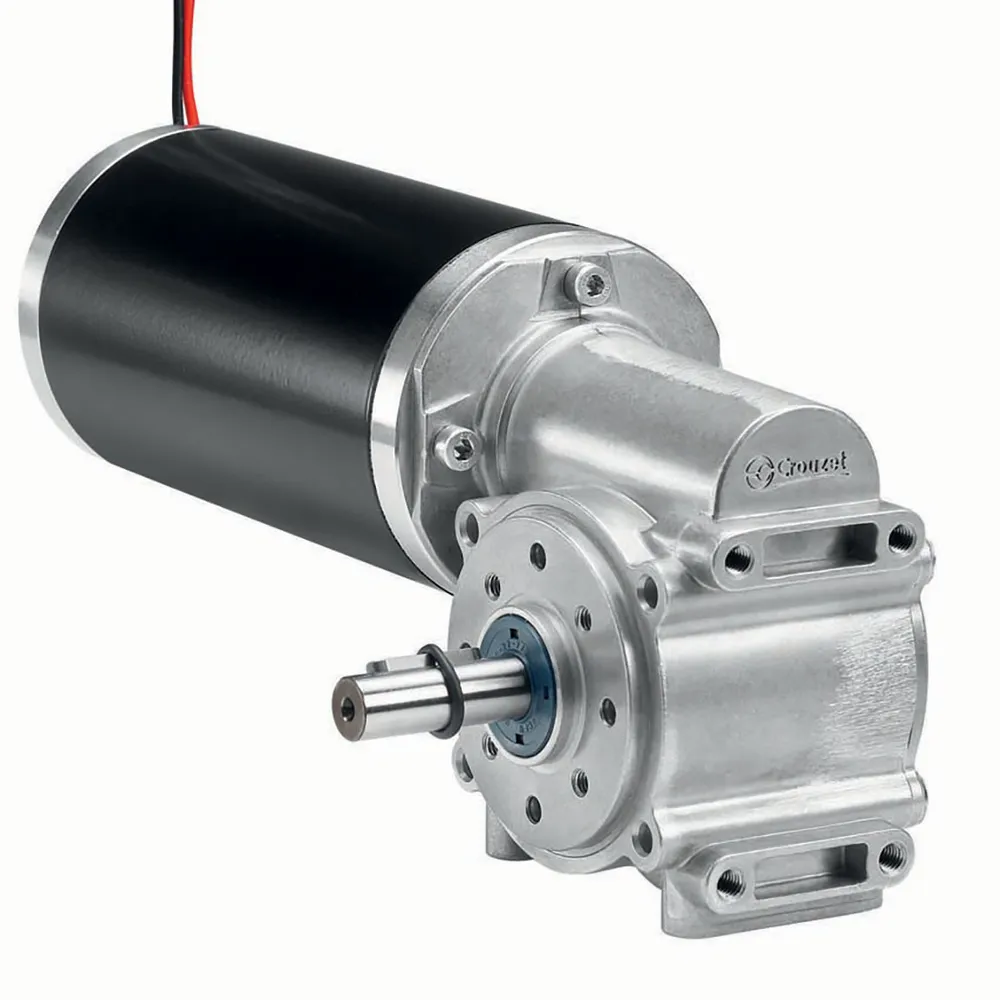

DC Brush Geared Motor 898910 Reversible 3800Rpm VDC-24 Ratio-50 Output-Left(B)
Features
- Product Type: DC Motor
- Manufacturer Series: DCmind, 89891
- Function: Gearmotor
- Motor Drive Type: Brushed
- Voltage Rating: 24 VDC
- Speed: 68.5 RPM
- Holding Torque: 698.2 oz-in (4930 mNm)
- Power Rating: 104W
- Shaft Diameter: 0.394" (10.00mm)
- Shaft Length: 1.319" (33.50mm)
- Termination Style: Wire Leads
- Additional Feature: Key, Noise Filter
- Gear Ratio: 50
- Maximum Operating Torque: 1416 oz-in (10000 mNm)
- Minimum Operating Temperature: -20°C
- Maximum Operating Temperature: 70°C
- Harmonized Code: 8501310099
- ECCN: EAR99
Overview
DC Brush Geared Motor 898910 Reversible 3800Rpm VDC-24 Ratio-50 Output-Left(B).
