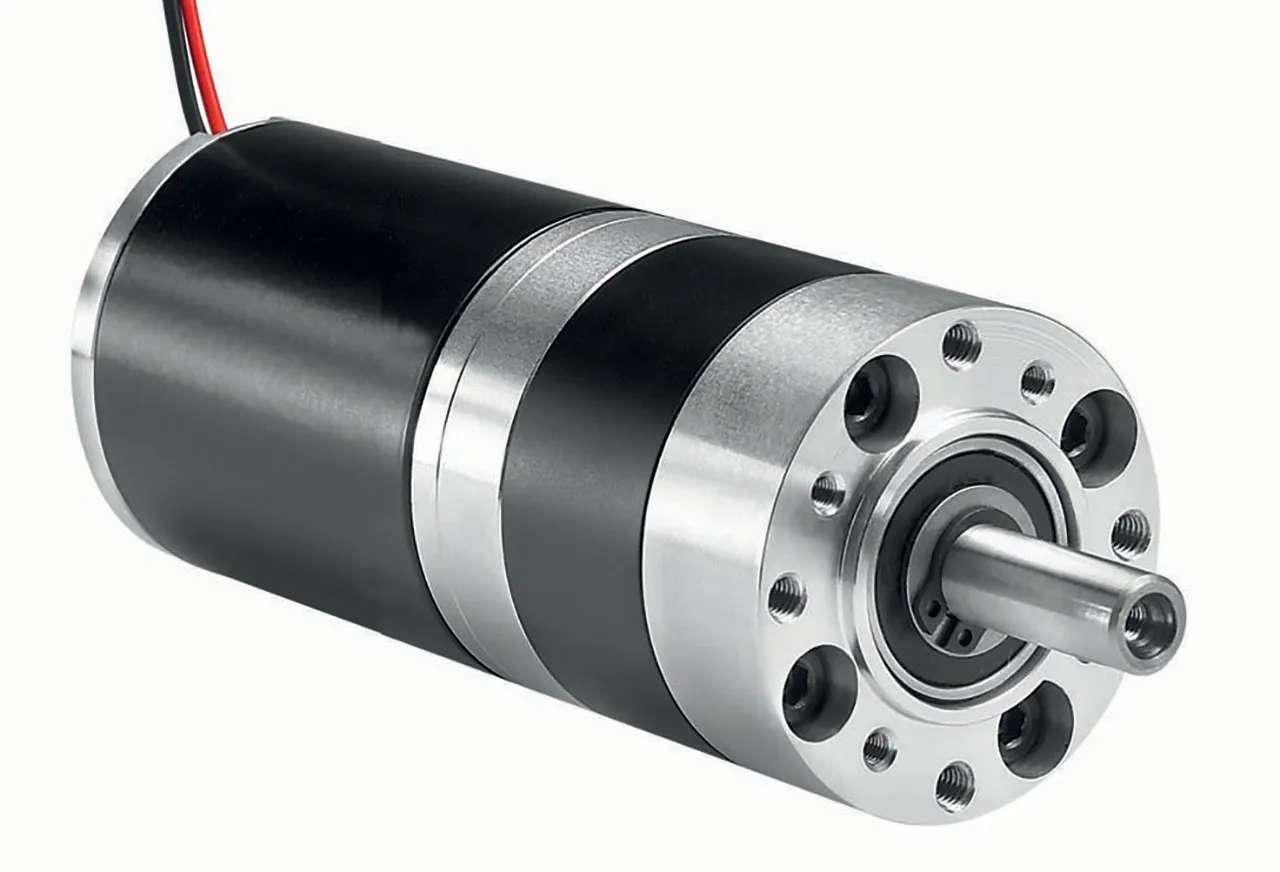

DC Brush Geared Motor 8981A1 Reversible 4000Rpm VDC-12 Filter-B Ratio-8.63
Features
- Product Type: DC Motor
- Manufacturer Series: DCmind, 8981A
- Function: Gearmotor
- Motor Drive Type: Brushed
- Voltage Rating: 12 VDC
- Speed: 336 RPM
- Holding Torque: 48.86 oz-in (345 mNm)
- Power Rating: 15W
- Shaft Diameter: 0.315" (8.00mm)
- Shaft Length: 1.095" (27.80mm)
- Mounting Hole: 1.260" (32.00mm), 1.417" (36.00mm)
- Termination Style: Wire Leads
- Additional Feature: Key, Noise Filter
- Gear Ratio: 8.63
- Maximum Operating Torque: 424.8 oz-in (3000 mNm)
- Minimum Operating Temperature: -20°C
- Maximum Operating Temperature: 70°C
- Harmonized Code: 8501109990
- ECCN: EAR99
Overview
DC Brush Geared Motor 8981A1 Reversible 4000Rpm VDC-12 Filter-B Ratio-8.63.
