AC DC Bidirectional Power Supply with Energy Recycle Function 230VAC 48VDC

Features

• 1U low profile design
• Full digital design with 93% conversion efficiency for both AC/DC and DC/AC conversion
• Ultrafast switching time between AC/DC and DC/AC of 1ms
• CB/TUV/UL 62368-1 certified, and design refers to IEC 62477 regulation
• Active current sharing up to 11,000 W (4+1)
• Low <3% low THD in both conversion modes
• Force charging and discharging mode with CANBus model (call for details)
• Complete protections: Anti-islanding, AC fail, DC over voltage, overload, over current, over temperature
• 5-year warranty

AC to DC Specifications

Output
• DC Voltage: 48 V
• Full Power Voltage Range: 48 V to 65 V
• Voltage Adjustment Range: 38 V to 65 V
• Rated Current: 45 A
• Rated Power: 2160 W

Input
• AC Voltage Range: 180 VAC to 264 VAC
• AC Current: 11 A @ 230 VAC
• PFC: 98%
• Efficiency: 93%

DC to AC Specifications

Input
• Rated Input Power: 1800 W
• Full Power Voltage Range: 48 V to 65 V
• DC Voltage Range: 38 V to 65 V
• Max. Input Current: 37.5 A

Output
• Rated Output Power (typ. @230V, 50Hz): 1725 VA
• Voltage Range: 180 to 264 VAC determined by AC main
• AC Current (typ.): 7.5 A @ 230VAC
• PFC: 99%
• Efficiency: 93%

Overview

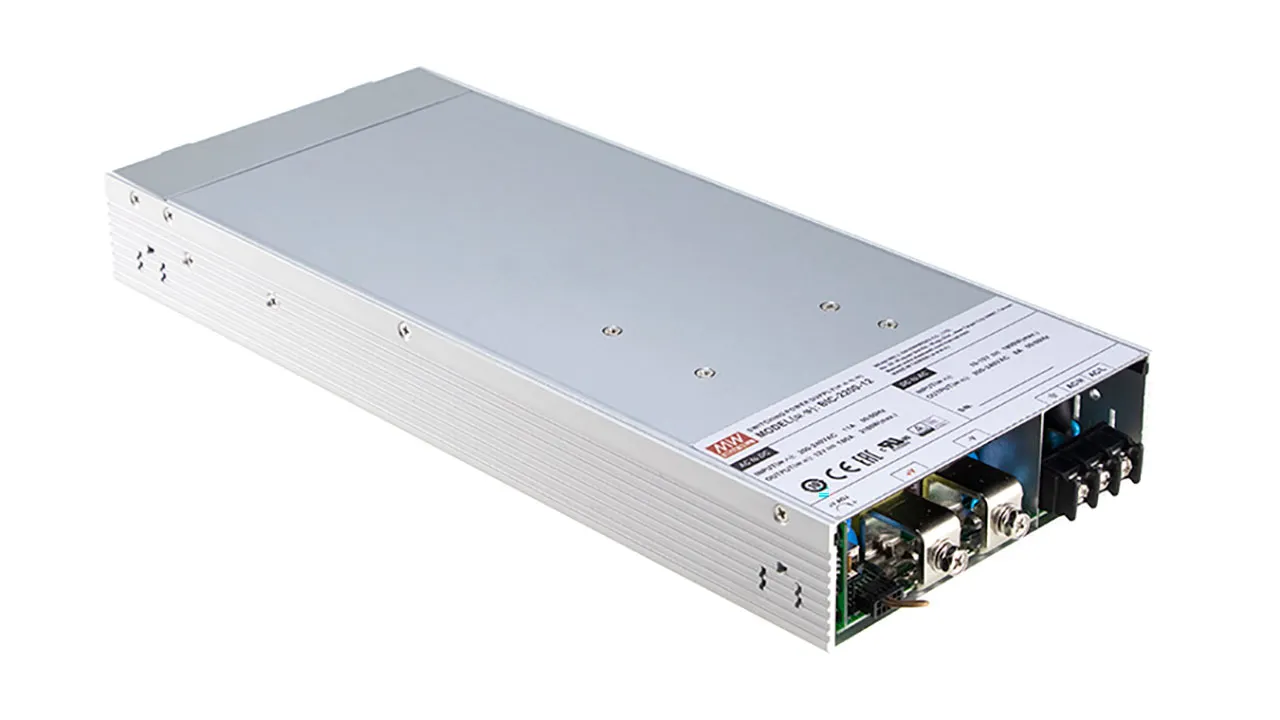

The BIC-2200 is a 2.2KW bidirectional power supply with an energy recycling function. It is fully digital and 1U height designed to control the power transferred from AC grid to DC and DC to AC grid for energy recycle. The implementation of a bidirectional power supply of the BIC-2200 allows battery manufacturers to charge the battery from AC grid and recycle the DC energy back into AC grid in one single unit. With built-in functions such as active current sharing, remote ON/OFF control and optional CANBus models available, the BIC-2200 provides vast design flexibility for battery formation and test equipment, V2G (vehicle-to-grid) system, charging station, laser system and kinetic energy recovery systems.

Applications

• Battery cell formation & grading
• V2G (vehicle-to-grid) system
• Marine battery charger module
• Electric scooter or vehicle charger station
• Kinetic energy recovery system
• Electrolysis system
• Wastewater treatment system
