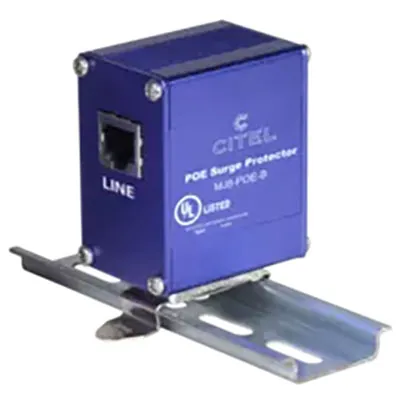

Dataline Surge Protection Device for POE++ Hybrid GDT+Diode Single Line 16kA IMAX

This surge suppression device (SPD) is designed for POE++ Ethernet networks and is compatible with all 10/100/1000 Mbps configurations. It features Hybrid GDT and diode technology for surge current rating up to 16 kA IMAX. It offers bi-directional protection and has shielded connectors. It mounts on a DIN rail but supports flange mounting, and it has screw lugs. This SPD comes with a 10-year warranty.

Specifications

• Data Speed (Mbps): 10/100/1000
• Insertion Loss (@ Freq): <1 dB
• Impulse Current (Iimp): 500 A
• Max Load Current (IL): 1200 mA
• Line Current Max: 1.6 A
• Power Rating: 95 W
• Ambient Temp: -40°C to +85°C
• Surge Current (IMAX): 16 kA
• Technology: Hybrid GDT+Diode (SAD-GDT)
• Network Configuration: Single POE Line
• Connection Method: Shielded RJ45
• Mounting: DIN Rail, Flange
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• UL Standard: UL497B
• UL Category: QVGQ
• UL File Number: E184939
• Standards: NOM-003-SCFI-2014, NOM-001-SCFI-1993
