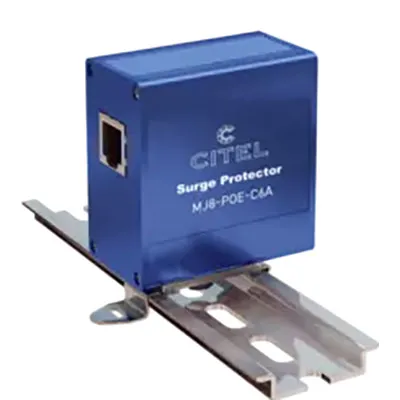

Dataline Surge Protection Device for POE and Gigabit Networks Hybrid GDT+Diode Single Line 16kA IMAX

This surge suppression device (SPD) is designed for POE++ and 10GB CAT6A Ethernet networks and is compatible with all 10/100/1000 Mbps configurations and maximum transmission up to 10 Gbps. Total bandwidth is up to 500 MHz. It features Hybrid GDT and diode technology for surge current rating up to 16 kA IMAX. It offers bi-directional protection and has shielded connectors. It mounts on a DIN rail but supports flange mounting, and it has screw lugs. This SPD comes with a 10-year warranty.

Specifications

• Data Speed (Mbps): 10/100/1000/10000
• Insertion Loss (@ Freq): <1 dB
• Impulse Current (Iimp): 500 A
• Max Load Current (IL): 2000 mA
• Line Current Max: 1.6 A
• Power Rating: 95 W
• Ambient Temp: -40°C to +60°C
• Surge Current (IMAX): 16 kA

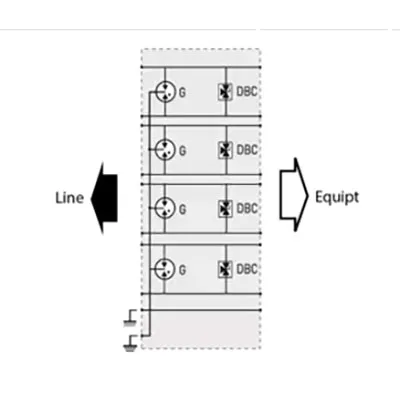

• Technology: Hybrid GDT+Diode (SAD-GDT)
• Network Configuration: Single POE Line
• Connection Method: Shielded RJ45
• Mounting: DIN Rail, Flange
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• Certification: UL Listed
• UL Standard: UL497B
• UL Category: QVGQ
• UL File Number: E184939
• Standards: NOM-003-SCFI-2014, NOM-001-SCFI-1993
