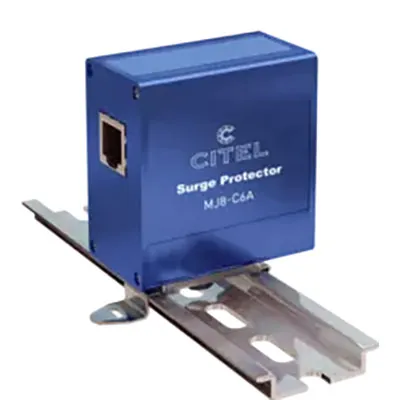

Dataline Surge Protection Device for CAT5 CAT5E and CAT6 Hybrid GDT+Diode Single Line 16kA IMAX

This surge suppression device (SPD) is designed for CAT5, CAT5E and CAT6 Ethernet networks and is compatible with all 10/100/1000 Mbps configurations. It features Hybrid GDT and diode technology for surge current rating up to 16 kA IMAX. It offers bi-directional protection and has shielded connectors. It mounts on a DIN rail but supports flange mounting, and it has screw lugs. This SPD comes with a 10-year warranty.

Specifications

  • Technology: SAD-GDT
  • Data SPD Type: UL497B LISTED
  • Volts: 6V
  • Wires: 8W+Shield+Ground
  • Line Current Max: 1.6 A
  • Power Rating: 95 W
  • Ambient Temp: -40°C to +85°C
  • MCOV (V): 8/72/72
  • IMAX (kA): 16
  • Iimp (kA): 0.500
  • Network Configuration: Single Line
  • Connection Method: Shielded RJ45
  • Mounting: DIN Rail, Flange
  • NEMA Rating (IP Rating): NEMA 2 (IP20)
  • UL Standard: UL497B
  • UL Category: QVGQ
  • UL File Number: E184939
  • Standards: NOM-003-SCFI-2014, NOM-001-SCFI-1993

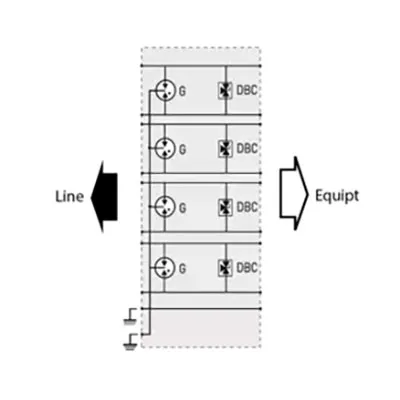

Connection Diagram

Compliance

Agency Approvals:UL497B

Dimensions & Appearance

Depth:55 mm
Width:34 mm
Height:55 mm
Mounting Type:DIN Rail

Input

Input Voltage:6 V

Features

Maximum Clamping Voltage:8 / 72 / 72
Failsafe Protection:No
Short Circuit Protection:N/A
IP Rating:IP20
Surge Current Rating:16 kA
Application:Ethernet, CAT5, CAT5E, CAT6
Protection Style:Bi-Directional
Technology:SAD-GDT
Voltage Rating:8 VDC
Current Rating:1.60 A
,
