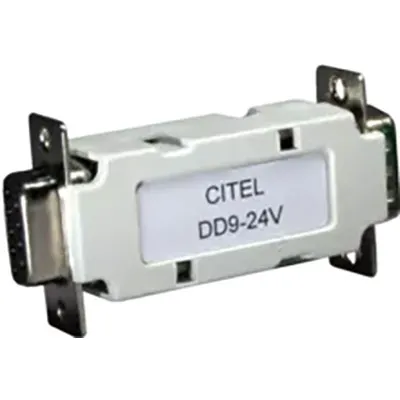

Dataline Surge Protection Device for 9-Pin RS Networks 24V SAD Diode 1kA IMAX

This data surge suppression device (SPD) is designed for RS Networks using 9-pin D-Sub connectors and supports data rates up to 40 Mbps. It uses SAD diode technology and provides up to 1 kA (IMAX) surge current. The in-line design allows for fast and easy installation. It is ideal for equipment level protection and is UL497B listed. It offers common mode or differential mode protection on the 9 wires + ground. It is IP20 rated for indoor applications and comes with a 10-year warranty.

Specifications

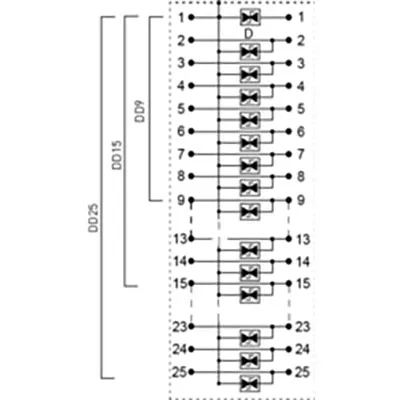

• Protection Mode: Common Mode, Differential Mode
• Data Speed (Mbps): 10/100
• Insertion Loss (@ Freq): <1 dB
• Max Capacitance: <30 pF
• Impulse Current (Iimp): 2.5 kA
• Max Load Current (IL): 750 mA
• Line Current Max: 0.3 A
• Nominal Line Voltage: 24 V
• Residual Voltage: 20 V
• Wires: 9W+Ground
• Ambient Temp: -50°C to +85°C
• MCOV (V):
