Dagu Magician Red Acrylic Chassis Kit

Features

• Max Motor Voltage: 6 VDC
• No Load Speed: 90±10rpm
• No Load Current: 190mA(max.250mA)
• Torque: 800gf.cm
• Stall Current: ~1A
• 65mm Diameter Wheels (30mm Wide)
• Plastic Rims with Solid Rubber Tires
• 4.33" x 6.85" (110 x 174mm)

Overview

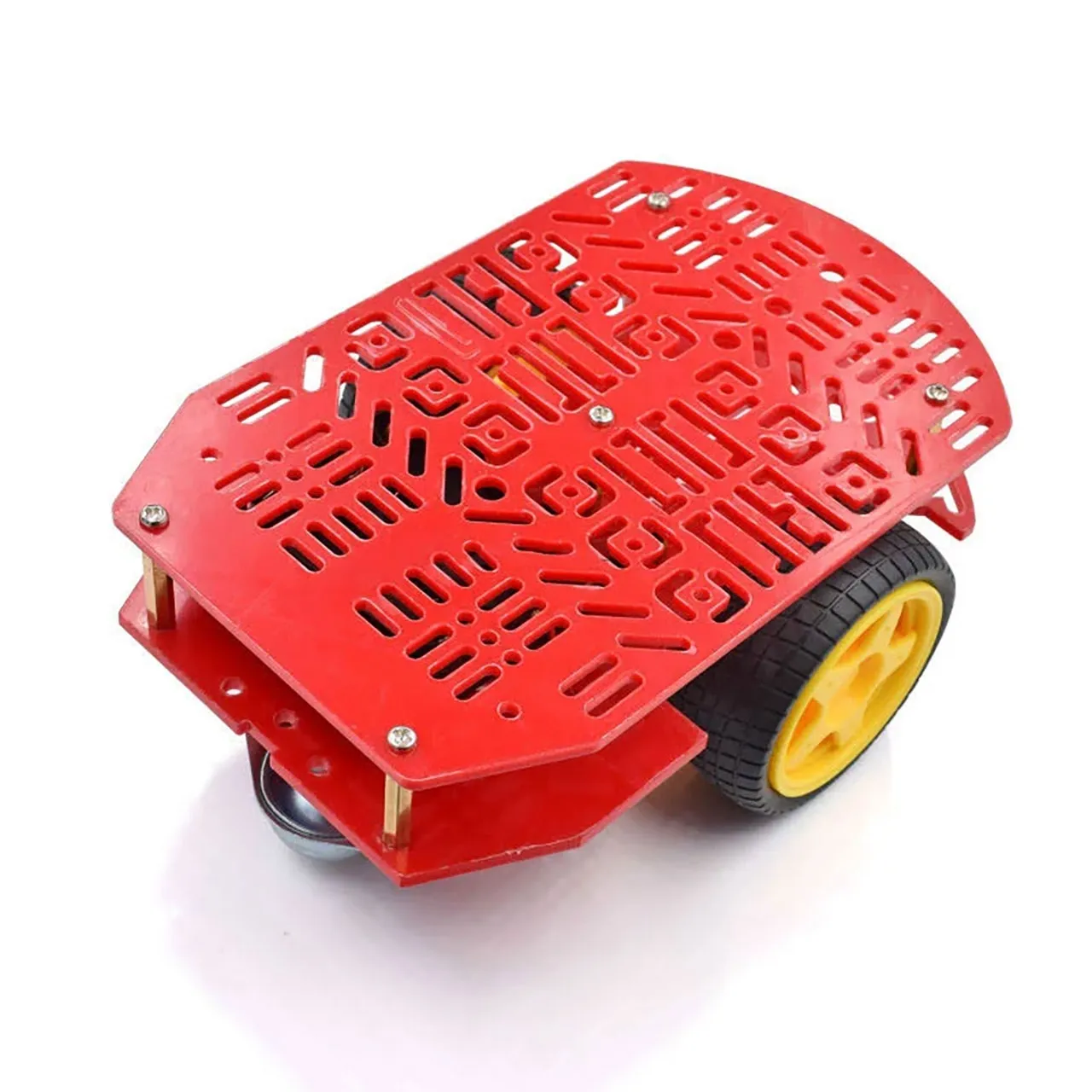

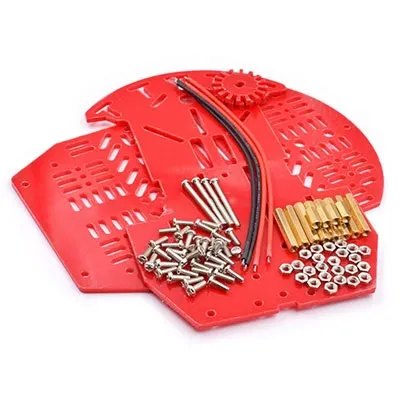

The Magician Chassis is our latest robot platform from Dagu. It has two gear motors with 65mm wheels and a rear caster. The chassis plates are made from acrylic with a wide variety of mounting holes for microcontrollers, sensors, batteries, etc. Simply screw the two pre-cut platforms together, attach the motors and caster and add your robotics controller and sensors. This kit includes all the parts needed to assemble the chassis as well as a 4xAA battery holder with barrel jack termination. Batteries are not included.

Note: The chassis requires assembly.

Parts List
