Current Probe 50 MHz 30Arms 50A Peak

Features

• Bandwidth: 50 MHz
• Maximum continuous current 30 Arms
• Peak current 50 A
• Switching ratio: 5 A/30 A
• Accuracy: 5 A(±1%±1 mA); 30 A(±1%±10 mA)
• Powered by oscilloscope via SAPBUS

Overview

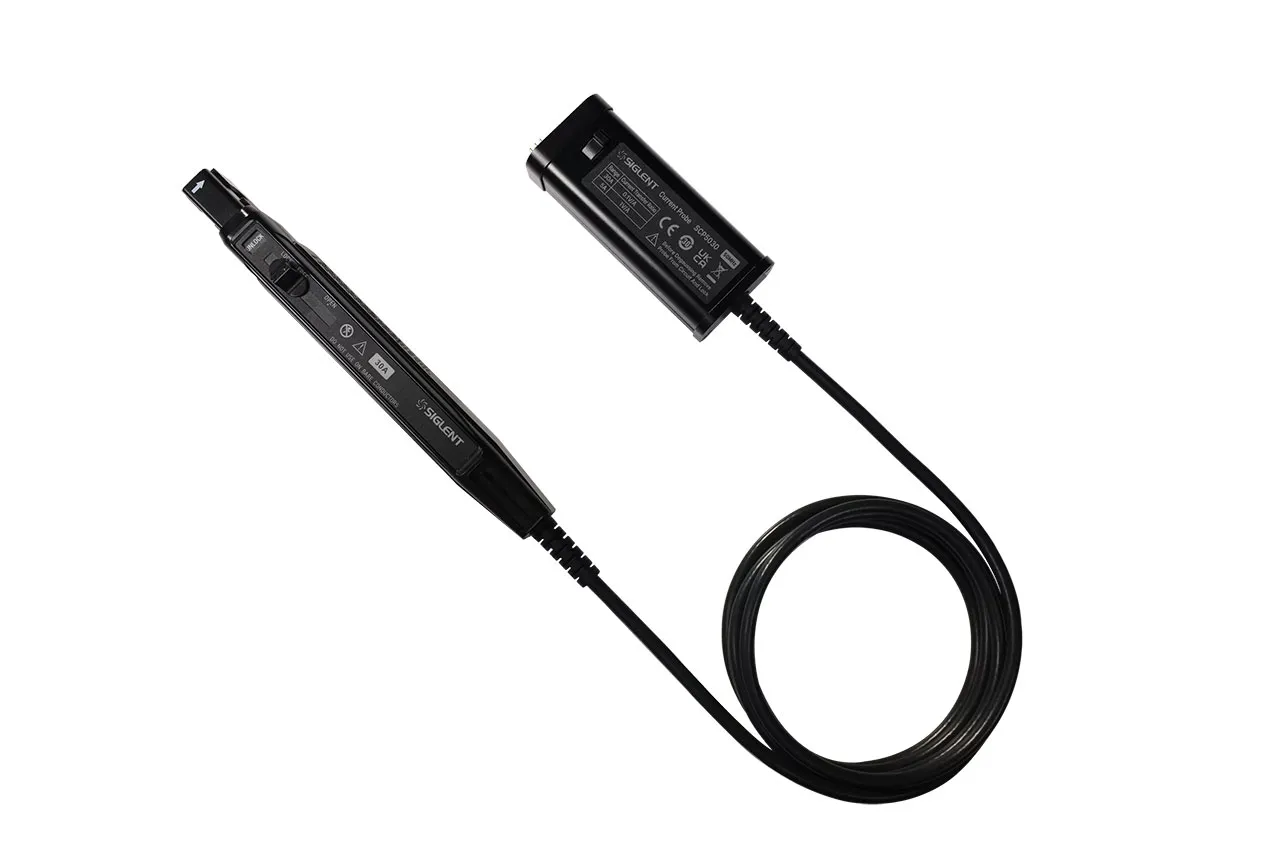

The wide band width DC / AC active current probes of the SCP5000 series have minimal circuit insertion loss, fast and accurate current wave capture, high bandwidth, and accuracy up to 1%. Any oscilloscope with a high-impedance SAPBUS input can be utilized with this probe.
