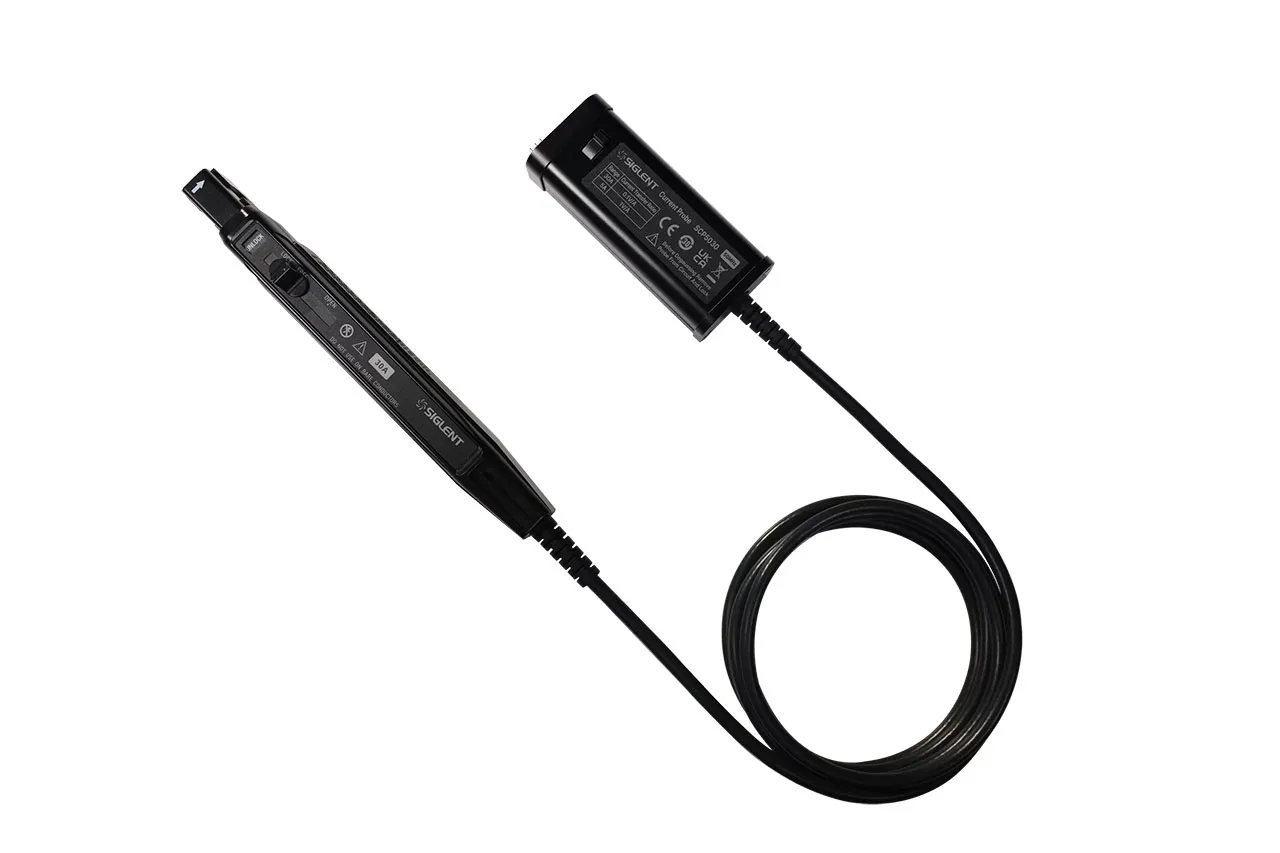

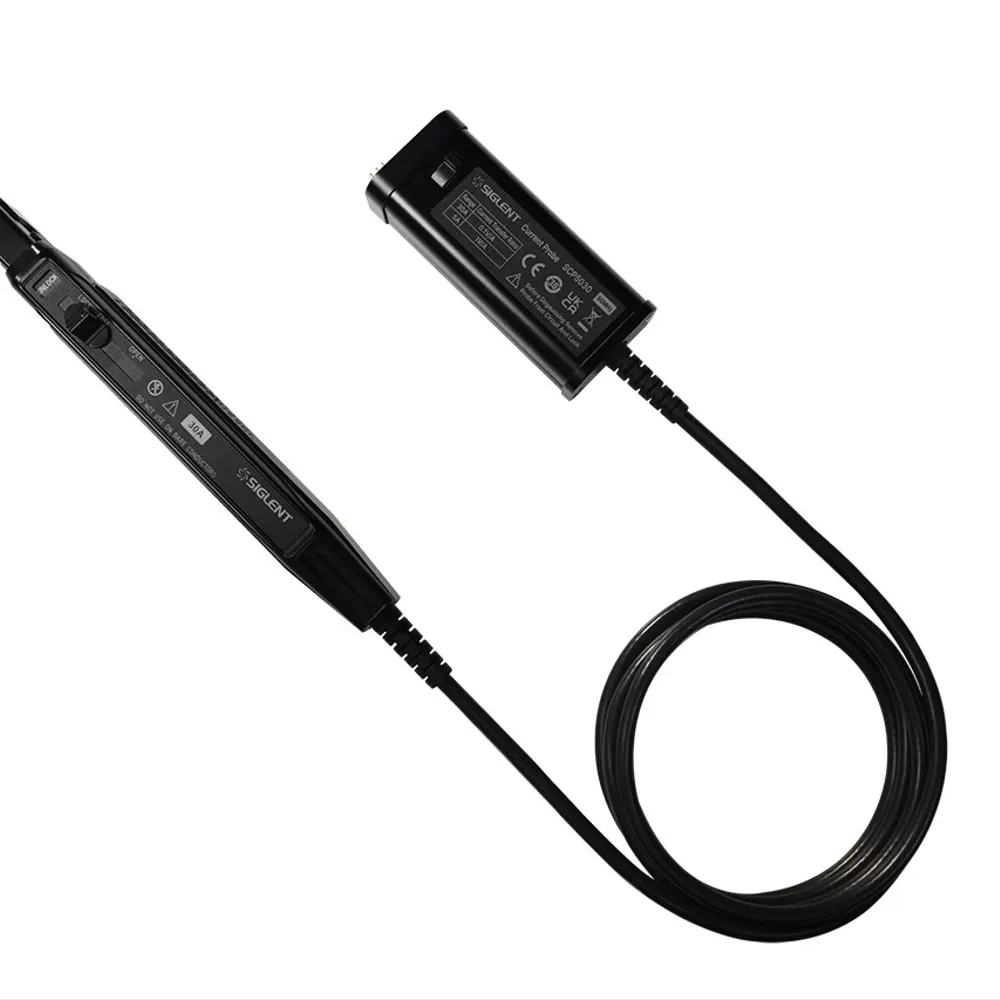

Current Probe 2 MHz 500Arms 750A Peak

Features

• Bandwidth: 2 MHz
• Maximum continuous current 500 Arms
• Peak current 750 A
• Switching ratio: 75 A/500 A
• Accuracy: 75 A(±1%±10 mA); 500 A(±1%±100 mA)
• Powered by oscilloscope via SAPBUS

Overview

The wide band width DC / AC active current probes of the SCP5000 series have minimal circuit insertion loss, fast and accurate current wave capture, high bandwidth, and accuracy up to 1%. Any oscilloscope with a high-impedance SAPBUS input can be utilized with this probe.
