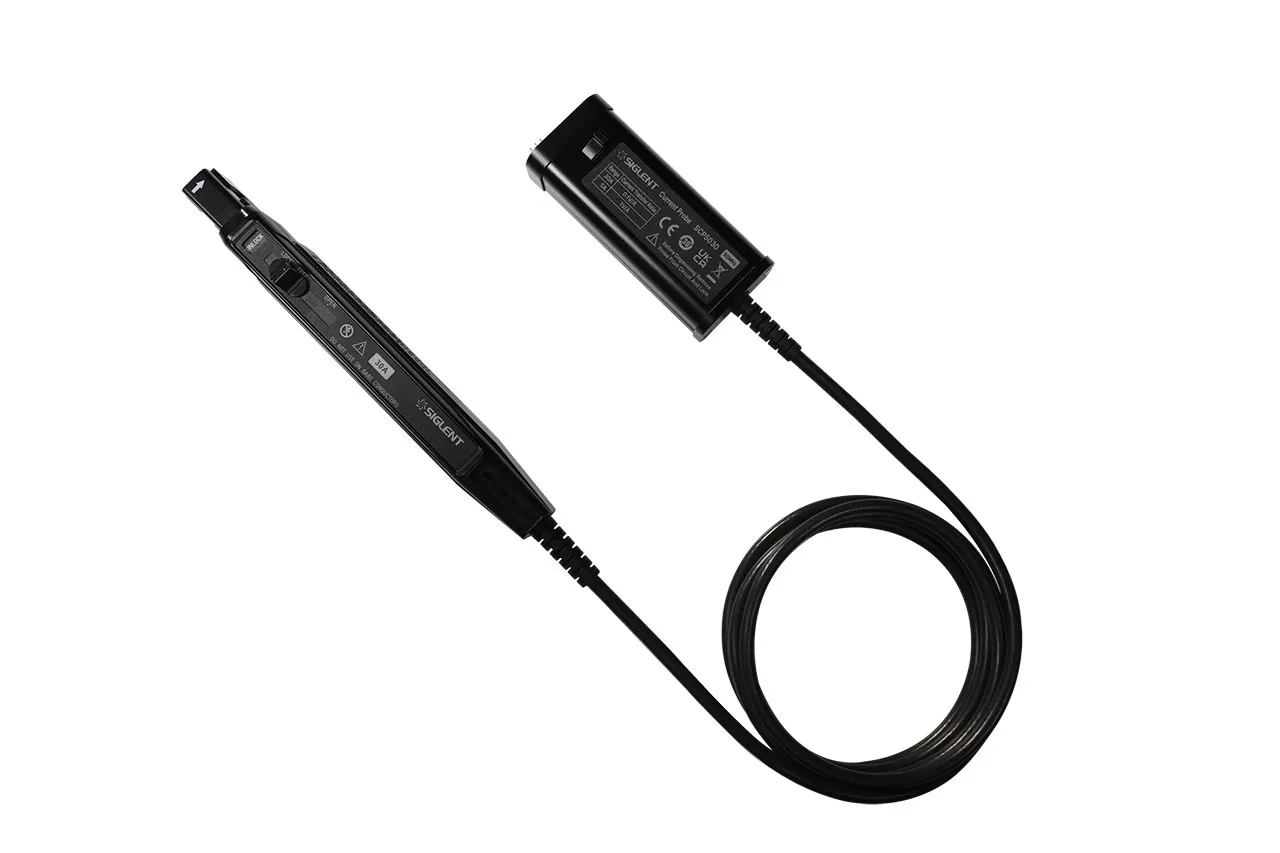

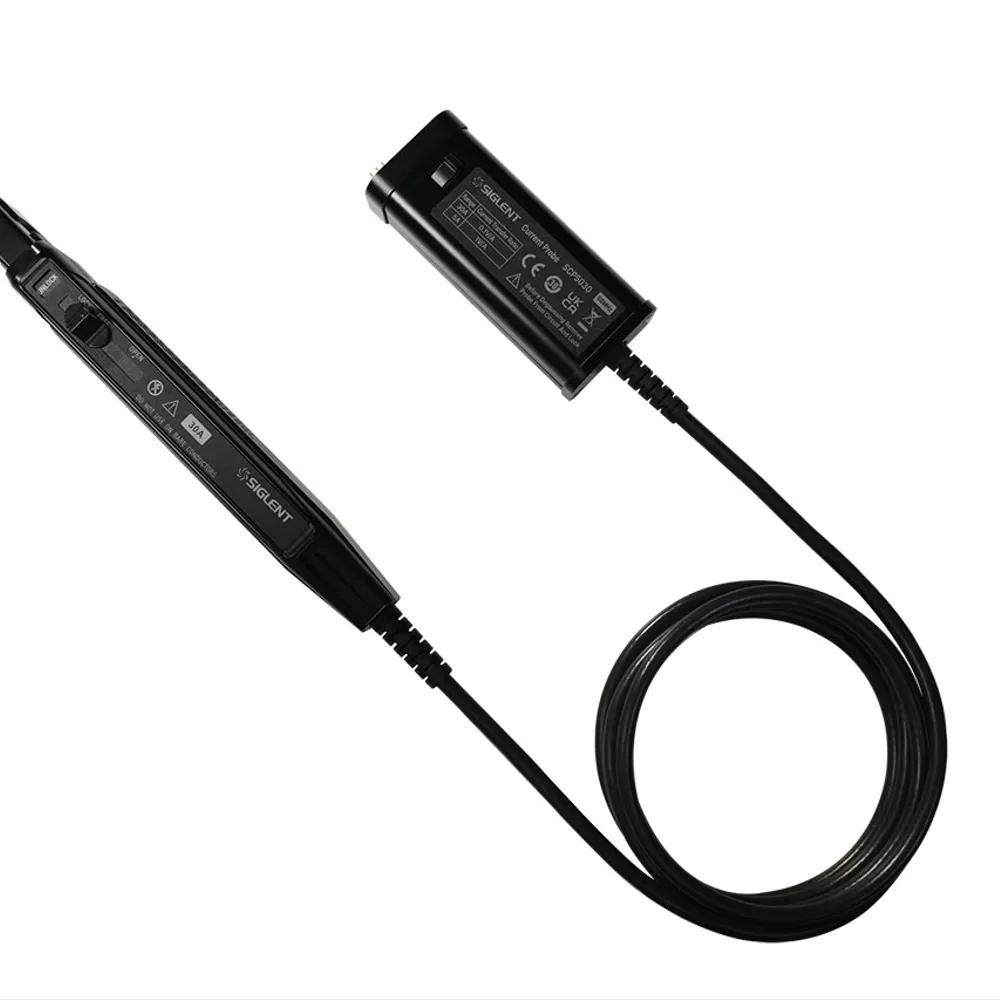

Current Probe 12 MHz 150Arms 300A Peak

Features

• Bandwidth: 12 MHz
• Maximum continuous current 150 Arms
• Peak current 300 A
• Switching ratio: 30 A/150 A
• Accuracy: 30 A(±1%±10 mA); 150 A(±1%±100 mA)
• Powered by oscilloscope via SAPBUS

Overview

The wide band width DC / AC active current probes of the SCP5000 series have minimal circuit insertion loss, fast and accurate current wave capture, high bandwidth, and accuracy up to 1%. Any oscilloscope with a high-impedance SAPBUS input can be utilized with this probe.
