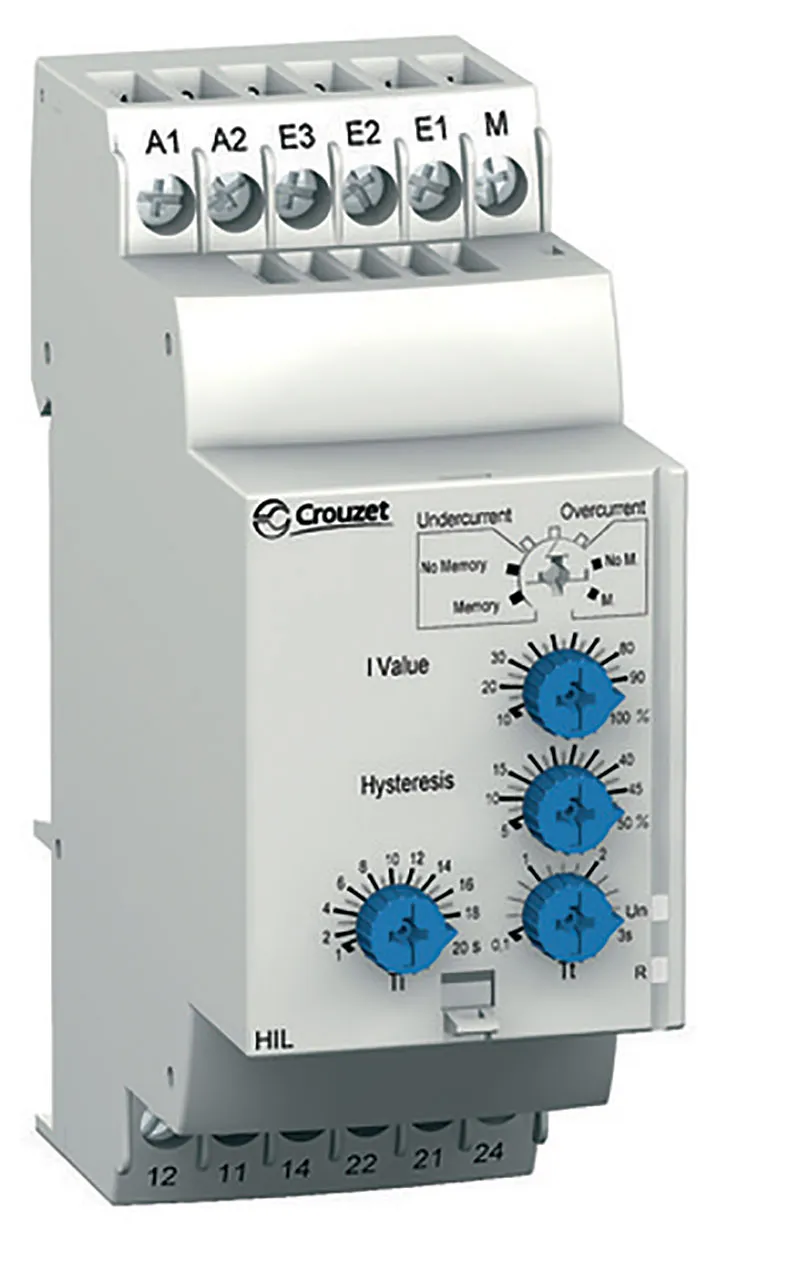

Current Monitoring Relay with 2NO/2NC Contacts 3 Phase 24-240VAC/DC DIN Rail Mount HIL Series
Features
- Product Type: Current Sensing AC/DC
- Output: DPDT (2 Form C)
- Protection Style: Energized High/Low
- Contact Rating: 5A @ 250VAC
- Mounting: DIN Rail
- Manufacturer Series: C-Lynx
- Voltage Rating: 24 VAC 240 VAC, 24 VDC to 240 VDC
- Additional Feature: Trip Range: 2 ~ 500mA AC/DC
- Harmonized Code: 9032890090
- ECCN: EAR99
Overview
Current Monitoring Relay with 2NO/2NC Contacts 3 Phase 24-240VAC/DC DIN Rail Mount HIL Series.
