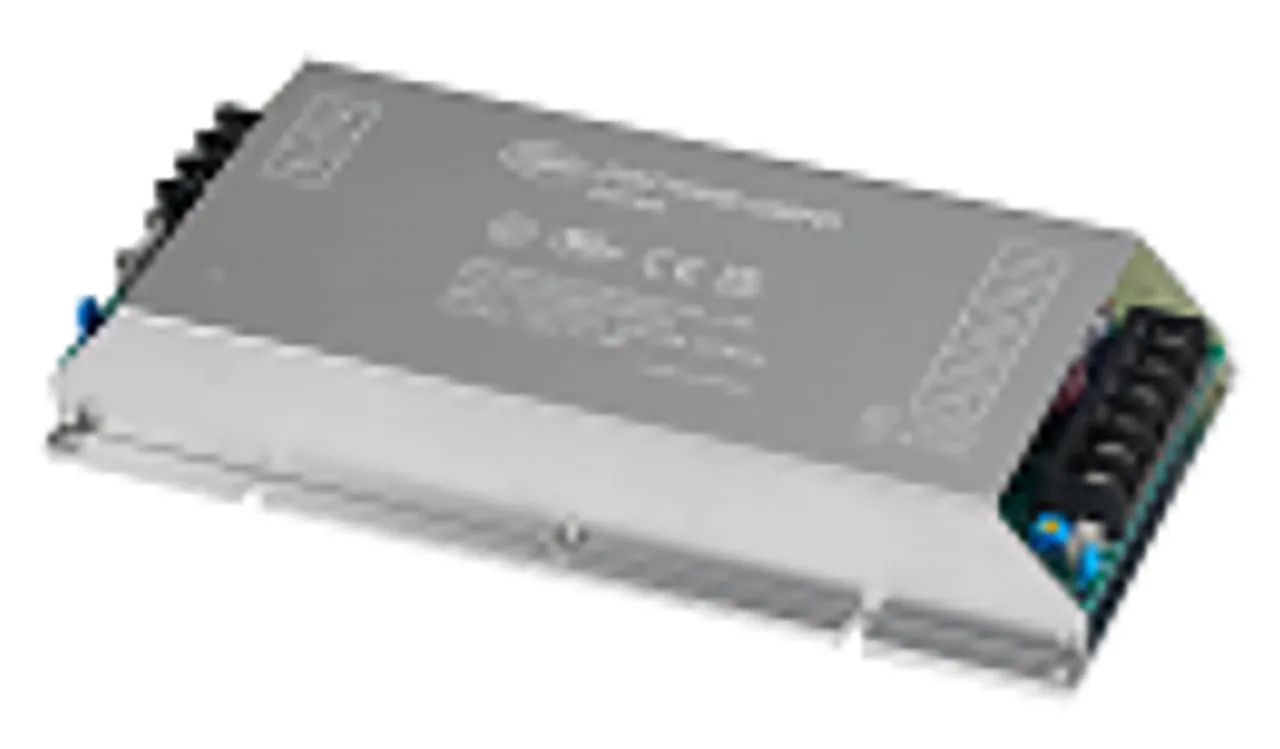

Covered Open Frame AC-DC Power Supply with PFC 700W Class B 24V 29.2A Chassis Mount Built-in Filter
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:PDF700S CMFC(D/D-P)
Compliance
Agency Approvals: CE, CUL, D, EN, UKCA, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.65 in.
Width:4.33 in.
Length:9.45 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:95°C
Input
Input Frequency:47 Hz to 63 Hz, 440 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:9 A
Output
Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Connector Type:Dinkle DT-49-B01W-06 or equiv
Output Voltage:24 VDC
Output Current (Channel 1):29.20 A
Output Current:29.20 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000VAC
Efficiency:90%
Power Rating:700 W
