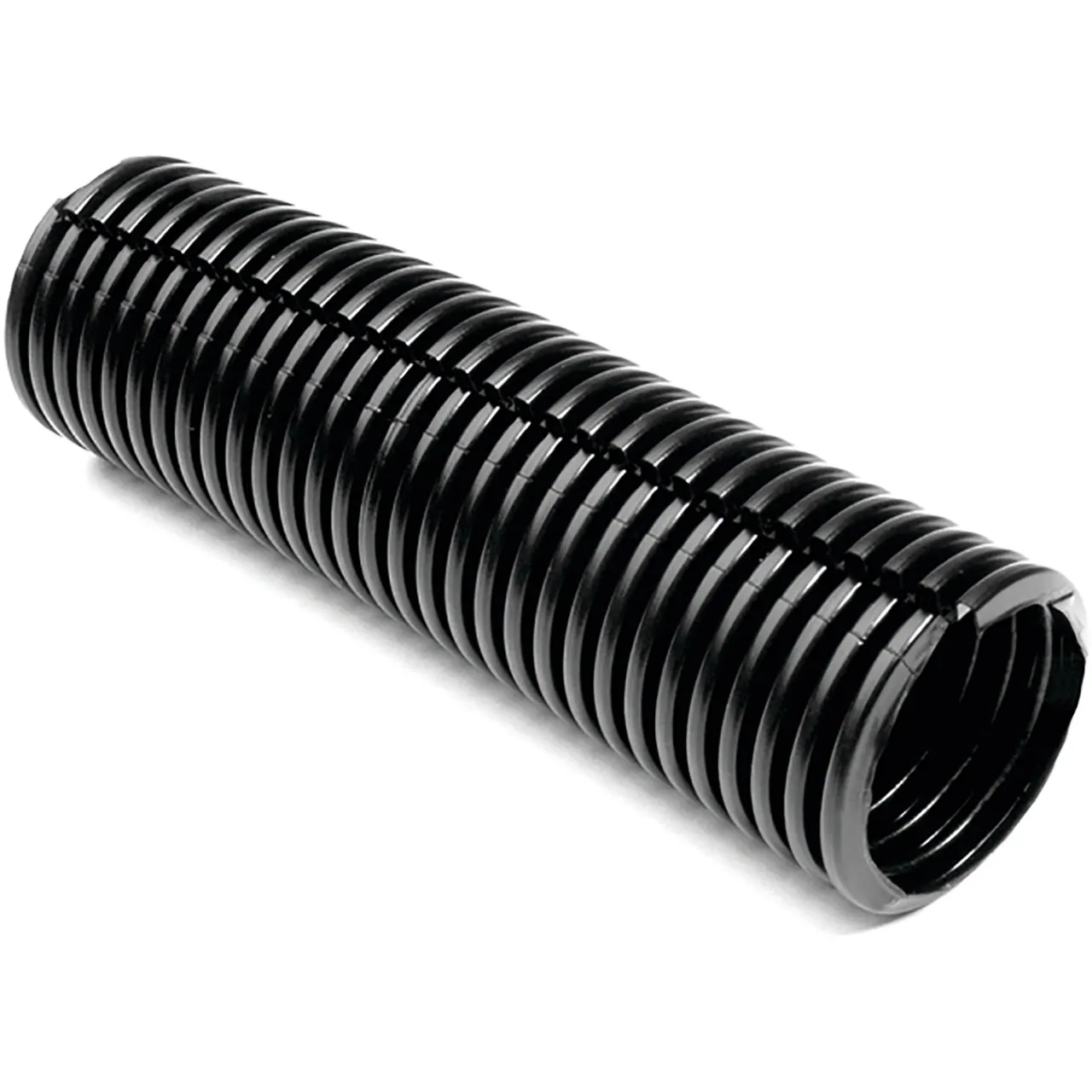

Convoluted Tubing, Slit, 1.5" Dia, PE, Black, 1000 ft/carton

Features

• Split side is ideal for applications where braided tubing or spiral wrap may be difficult to install. Tubing provides full coverage where spiral wrap or other coverings may not be suitable. In harsh applications the tubing provides resistance to crushing, impact, and abrasion. Tubing offers excellent protection against automotive fluids, vibration wear, water, snow, ice, and the effects of heat, cold, and sunlight on cables and wires.
• Product Type: Convoluted Tubing

Technical Specifications

• Material: Polyethylene (PE)
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Diameter D (Imperial): 1.947"
• Diameter D (Metric): 49.45 mm
• Diameter D2 (Imperial): 1.647"
• Diameter D2 (Metric): 41.83 mm
• Inner Diameter ID (Imperial): 1.647"
• Inner Diameter ID (metric): 41.83 mm
• Length L (Imperial): 1000.0 ft
• Length L (Metric): 304.8 m
• Nominal Diameter (Imperial): 1.5"
• Nominal Diameter (Metric): 38.1 mm
• Outside Diameter D2 (imperial): 1.947"
• Outside Diameter D2 (metric): 49.45 mm
• Outside Diameter OD (imperial): 1.947"
• Outside Diameter OD (metric): 49.45 mm
• Trade Size: 1-1/2"
• Variant: Slit
• Wall Thickness WT (Imperial): 0.006"
• Wall Thickness WT (Metric): 0.152 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• CE Certified: No
• CSA Certified: No
• Flammability: Not Flame Retardant
• Flammable (Yes/No): Yes
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306013693

Overview

HellermannTyton’s Convoluted Tubing, also known at Split Loom Tubing, provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly. It can also serve to protect valuable hoses and cables. Convoluted tubing offer’s excellent protection against vibration wear, water, snow, ice and the effects of heat, cold and sunlight on cables and wires.
