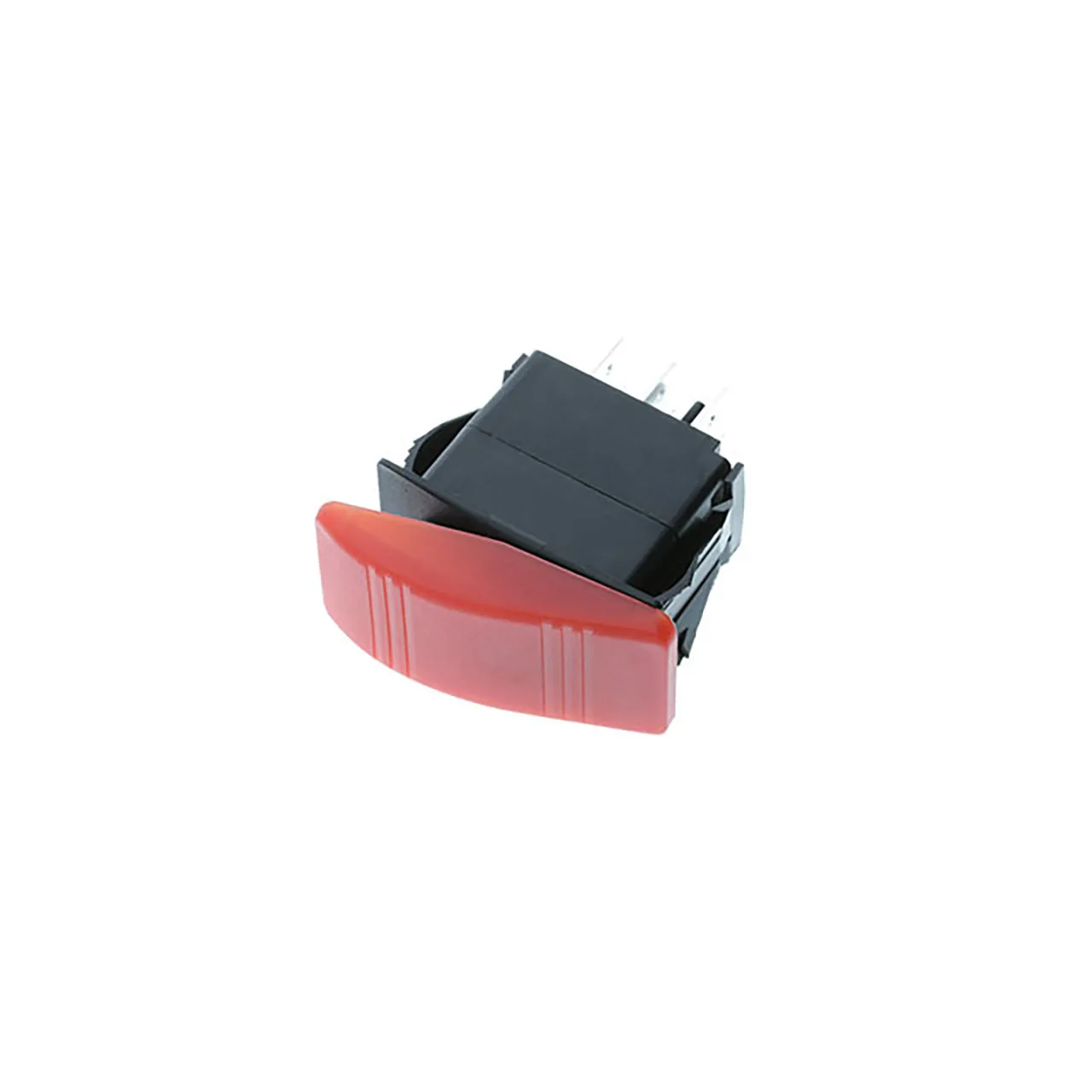

Contura Style Rocker - 6P DPDT ON-OFF-ON Red (IP56) Line Texture

Features

  • Series: SRD2
  • Mounting Type: Panel Mount, Snap-In
  • Circuit: DPDT
  • Switch FunctiON: ON-OFF-ON
  • Current Rating (Amps): 20 (AC), 21 (DC)
  • Voltage Rating - AC: 125 V
  • Voltage Rating - DC: 14 V
  • Actuator Type: Convex (Reverse V)
  • Color - Actuator/Cap: Red
  • Actuator Marking: No Marking
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Ingress Protection: IP56 - Dust Protected, Water Resistant
  • Panel Cutout Dimensions: Rectangular - 36.80mm x 21.20mm
  • Operating Temperature: -25°C to 85°C
  • Product Type: Rocker Switch
  • Harmonized Code: 8536.50.4000
  • ECCN: EAR99
  • 360 Animation Download (.zip)

Overview

Contura Style Rocker - 6P DPDT ON-OFF-ON, Red (IP56).

Product Identification

Product Type:Rocker Switch

Dimensions & Appearance

Mounting Style:Panel Mount, Snap-In
Height:0.51 in.
Depth:1.47 in.
Width:0.96 in.
Length:1.95 in.
Body Color:Black

Features

Pins:6
UL Flammability Code:94V-2
Lead Spacing A (inch):0.310
Termination Style:Quick Connect - 0.250" (6.3mm)
IP Rating:IP56 - Dust Protected, Water Resistant
Switch Function:ON-OFF-ON
Actuator Type:Convex (Reverse V)
Contact Form:DPDT
Color - Actuator/Cap:Red (No Marking)
Actuator Length:0.510 in.
Current Rating:21A @ 14VDC, 20A @ 125VAC, 10A @ 250VAC
,
