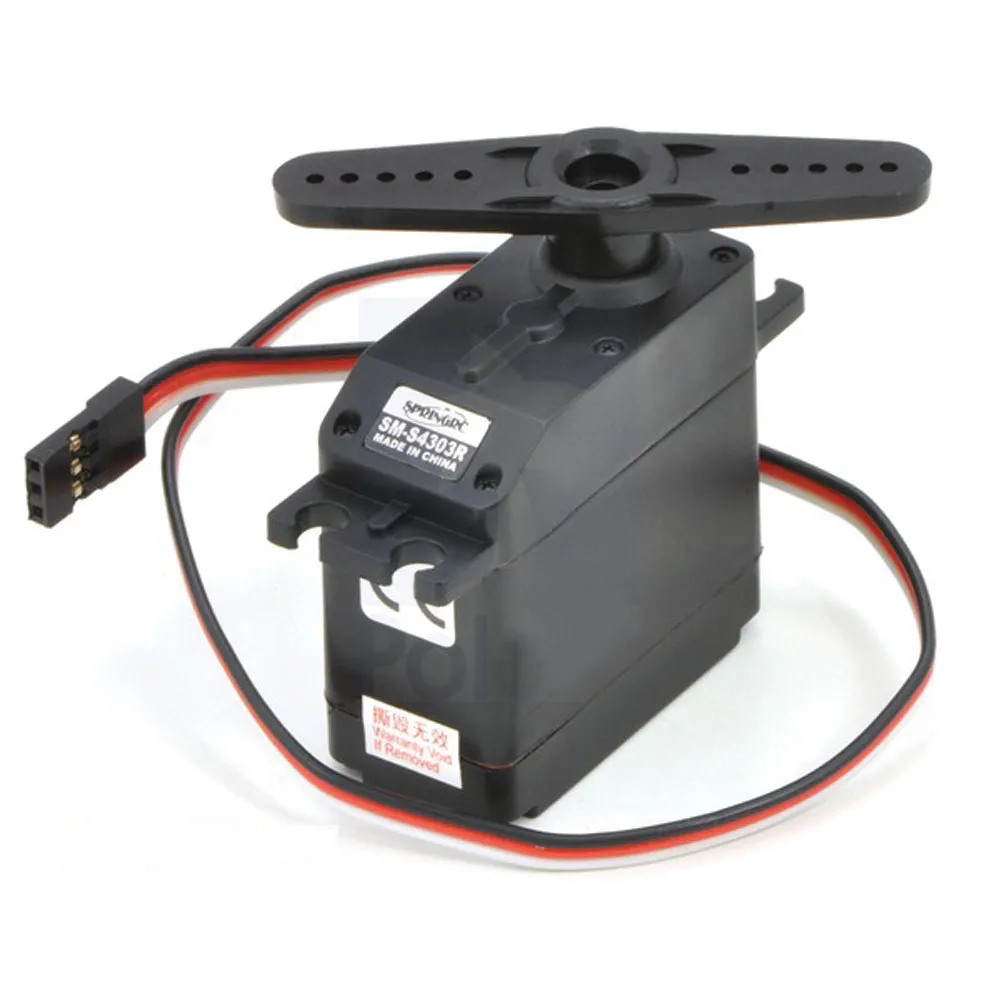

Continuous Rotation Servo Motor 5.1 kg-cm @ 6V

This is a standard-sized servo motor that has been built specifically for continuous rotation, making it an easy way to get your robot moving. It features two ball bearings on the output shaft for reduced friction, and it offers easy access to the rest-point adjustment potentiometer.

Features

  • Size: 1.56" x 0.81" x 1.65"
  • Weight: 44 grams (1.55 oz)
  • Leads: 11" length
  • Input Voltage: 4.8V-6V
  • Speed: 0.14 sec/60° @ 6V input
  • Stall torque: 66.7 oz-in @ 6V input
  • SpringRC P/N: SM-S4303R

    Applications

  • Building a miniature walking robot
  • Creating grippers or other mechanisms for small robots
  • Moving control surfaces on small model aircraft


    • Find out more about how servo motors work.

    Compliance

    RoHS Status:ROHS Compliant

    Dimensions & Appearance

    Width:0.8 in.
    Height:1.6 in.
    Length:1.7 in.

    Features

    Rotation:Clockwise
    No-Load Speed (4.8V):0.12 sec/60°
    Direction Type:Continuous Rotation
    Current Drain mA- Idle/No Load:15/140
    Stall Torque (4.8V):45.82 oz.in (3.3 kg.cm)
    Stall Torque (6.0V):70.95 oz.in (5.1 kg/cm)
    Motor Drive Type:Standard Servo
    ,
