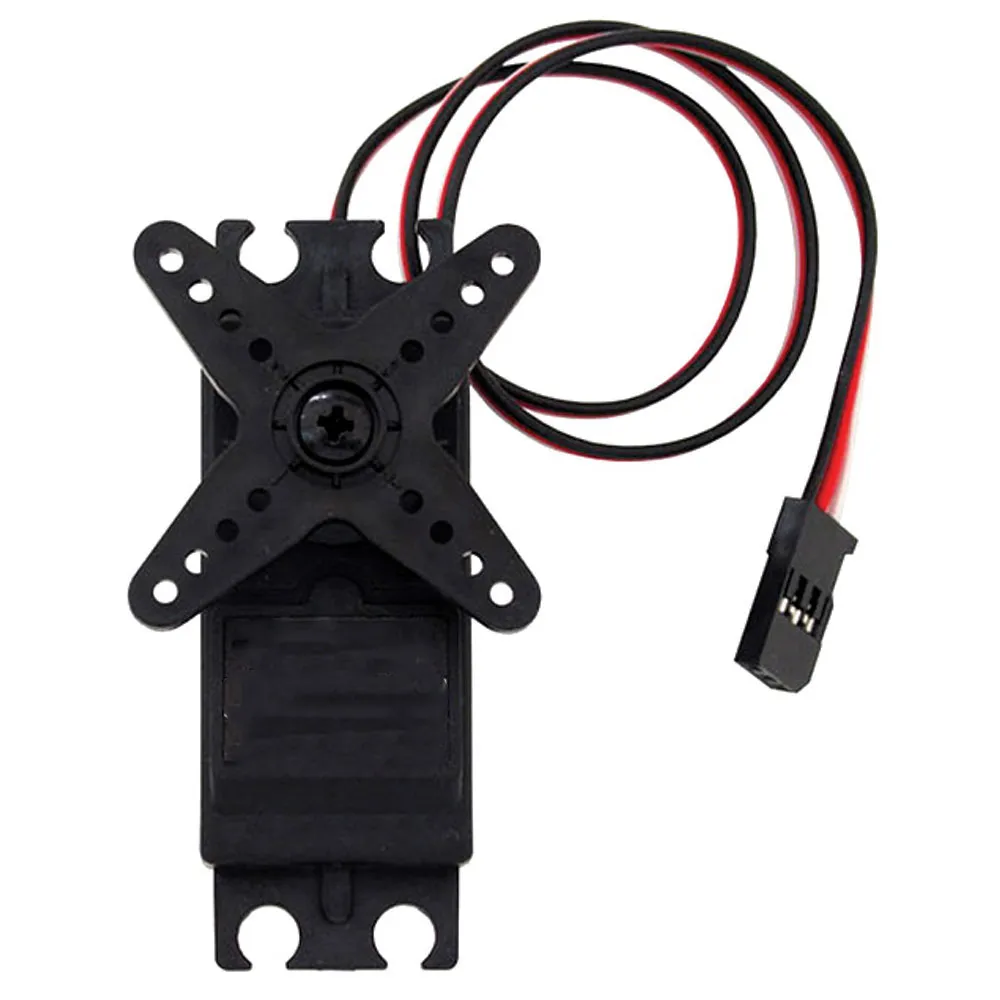

Continuous Rotation Servo

Features

• Bidirectional continuous rotation
• 0 to 50 RPM, with linear response to PWM for easy ramping
• Accepts four mounting screws
• Easy to interface with a PWM-capable device
• Very easy to control with PBASIC's or SX/B's PULSOUT commands

Specifications

• Power requirements: 6 VDC*
• Communication: Pulse-width modulation
• Dimensions: 2.2 x 0.8 x 1.6 in (55.8x 19 x 406 mm) excluding servo horn
• Operating temp range: +14 to +122°F (-10 to +50°C)

Note: Servo current draw can spike while under load. Be sure that your application's power supply and voltage regulator is prepared to supply adequate current for all servos used. Do not try to power this servo directly from a BASIC Stamp module's Vdd or Vin pins; do not connect the servo's Vss line directly to the BASIC Stamp module's Vss pin.

Find out more about how servo motors work.
