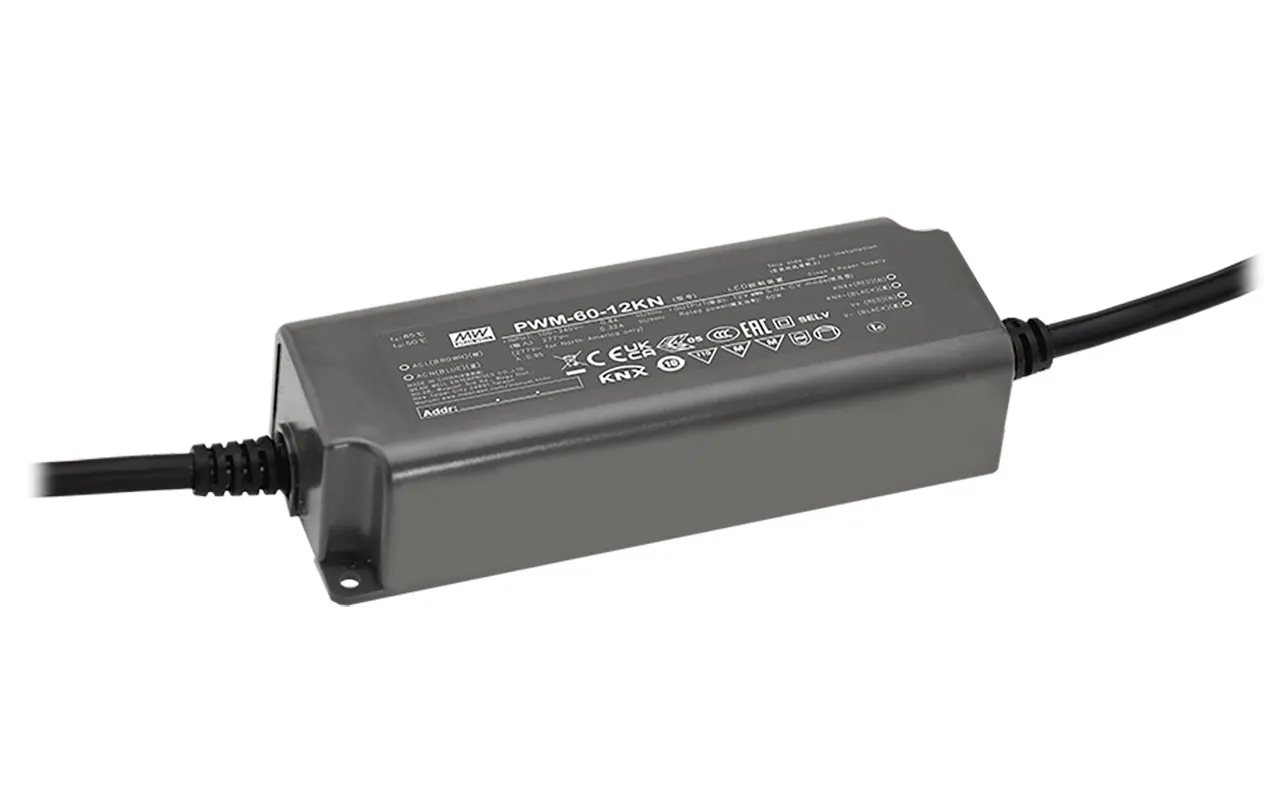

Constant Voltage PWM Output LED Driver 60W 12V 5A KNX Control
Features
- Constant voltage PWM style output with user changeable frequency up to 4KHz compliant IEEE 1789-2015 and EU Ecodesign SVM requirement
- Minimum dimming level 0.01%
- Built-in active PFC function and class II design
- Plastic housing
- Standby power consumption <0.5W
- Integrated KNX control protocol
- No need for KNX-DALI gateway
- Typical lifetime: >50,000 hours
- 5-year warranty
Overview
The PWM KN series is a 60W AC/DC constant LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. The built-in KNX interface is to avoid using the complicated KNX-DALI gateway.
The PWM-KN operates from 90-305VAC and offers two models with output voltage 12V and 24V. Thanks to the efficiency up to 89%, with the fanless design, then entire series can operate with -35C to +90C case temperature under free air convection. The minimal dimming level low to 0.01% is suitable for low light level applications like cinemas. The output frequency is changeable up to 4KHz compliant to IEEE1789-2015 no risk requirement and EU Ecodesign stroboscopic visibility measure (SVM) requirement providing a great solution for health concern due to light flickering.
Applications
- LED indoor lighting
- LED strip lighting
- LED decorative lighting
- LED architectural lighting
- Industrial lighting
