Constant Voltage PWM Output LED Driver 60W 12V 5A DALI Control

Features

• Constant voltage PWM style output
• Emergency lighting application is available according to IEC61347-2-13
• Built-in active PFC function and class II design
• No load/Standby power consumption <0.5W
• DALI control
• Fully encapsulated with IP67 level
• Minimum dimming level 0.2%
• Typical lifetime: >50,000 hours
• 5-year warranty

Overview

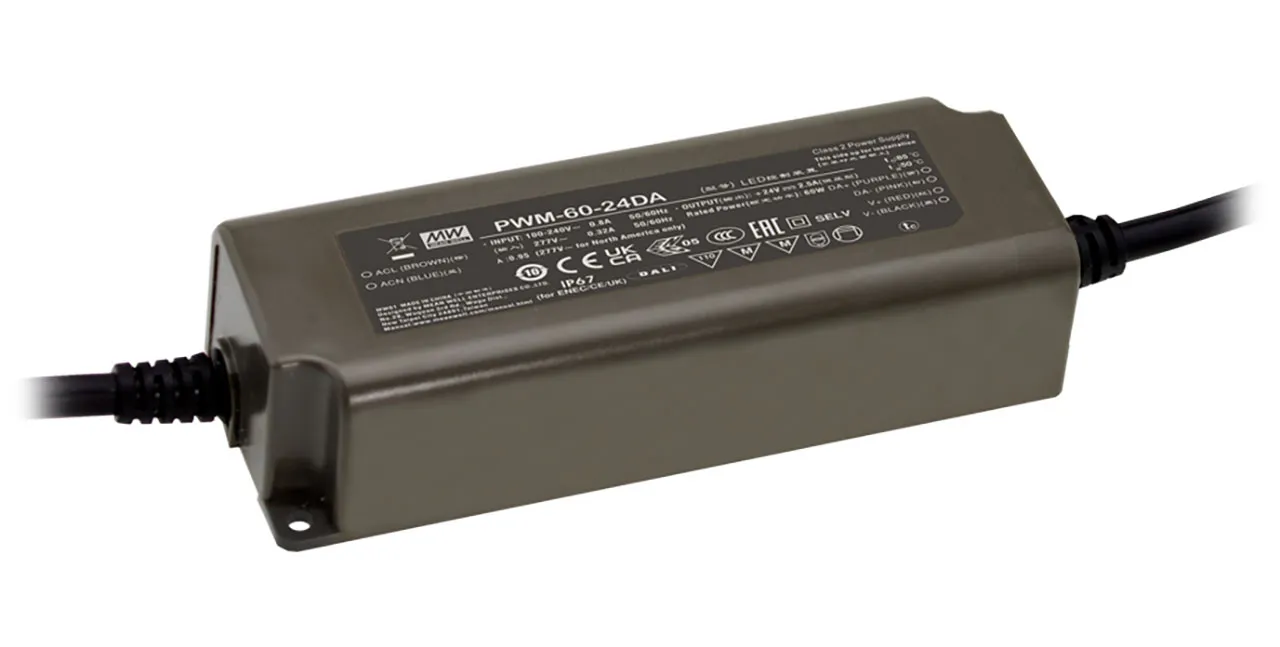

The PWM-60 series is a 60W AC/DC constant LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. The PWM-60 operates from 90-305VAC and offers different rated voltage ranging between 12V and 48V. Thanks to the efficiency up to 90%, with the fanless design, then entire series can operate with -40C to +85C case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-60 is equipped with dimming functions that varies the duty cycle of the output, providing great flexibility for LED strip applications.

Applications

• LED indoor lighting
• LED strip lighting
• LED decorative lighting
• LED architectural lighting
• Industrial lighting
• Type "HL" for use in Class 1, Division 2 hazardous (classified) location
