Constant Voltage Constant Current Mode LED Driver 2.4A-4A 12V-20V IP65 Adjustable Current and Dimming 180-528VAC

Features

• Wide input range 180-528VAC
• Constant Voltage + Constant Current mode output
• AB model - Output current adjustable through built-in potentiometer & 3-in-1 dimming (1-10VDC, 10V PWM signal and resistance)
• Class 2 power unit
• Metal housing with Class I design
• Built-in active PFC function
• IP65 design for indoor or outdoor installations
• Typical lifetime: >50,000 hours
• 5-year warranty

Applications

• Street lighting
• Fishing lighting
• Harbor lighting
• Mining lighting
• Greenhouse lighting
• Bay lighting

Overview

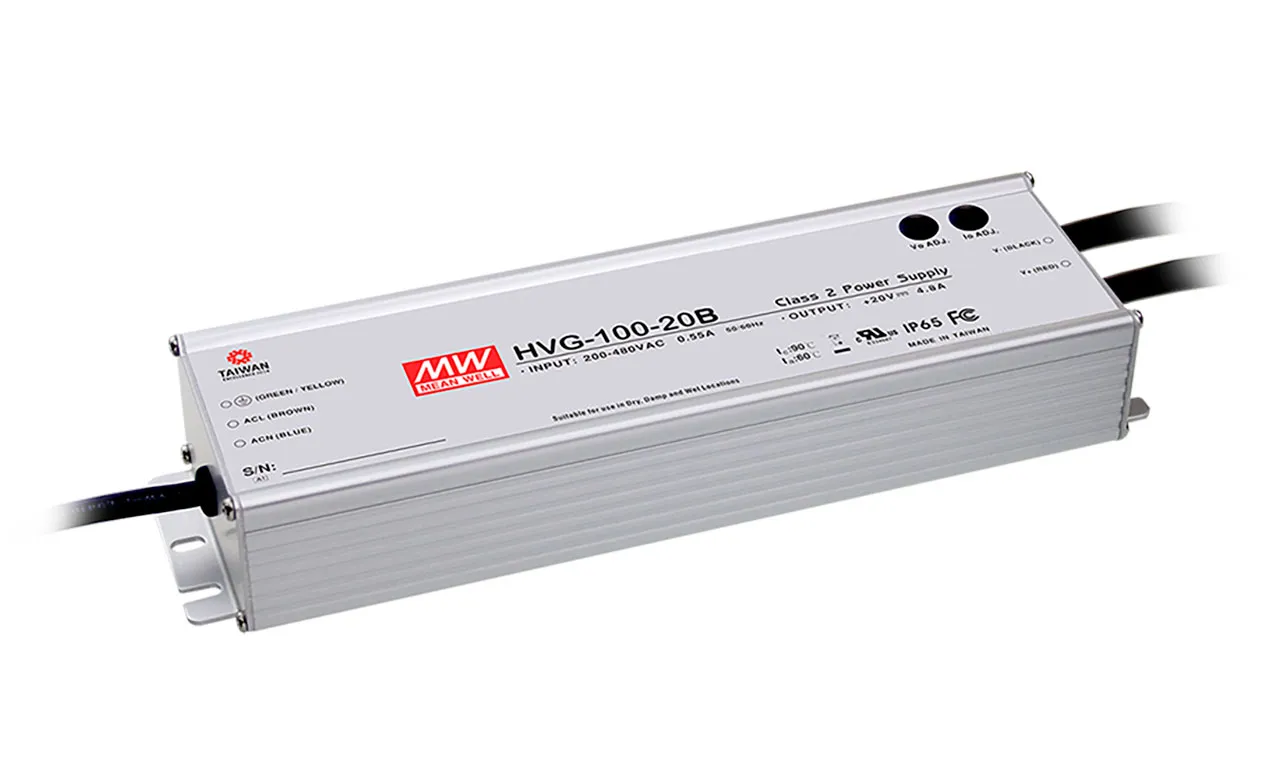

HVG-100 series is a 100W AC-DC LED driver featuring the dual mode constant voltage and constant current output. It operates from 180-528VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 91% and with the fanless design, the entire series can operate with -40C to +90C case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.
