Constant Voltage Constant Current Mode LED Driver 1.77A 27V-54V IP65 Adjustable Current and Dimming
Features
- AB model - Output current and voltage adjustable through built-in potentiometer & 3-in-1 dimming (1-10VDC, 10V PWM signal and resistance)
- Universal AC input / Full range (up to 305VAC)
- Built-in active PFC function
- IP65 design for indoor or outdoor installations
- Typical lifetime: >62,000 hours
- 7-years warranty
- Street lighting
- High-bay lighting
- Parking space lighting
- Fishing lamp
- Greenhouse lighting
- Type "HL" for use in Class I, Division 2 hazardous (classified) locations
Applications
Overview

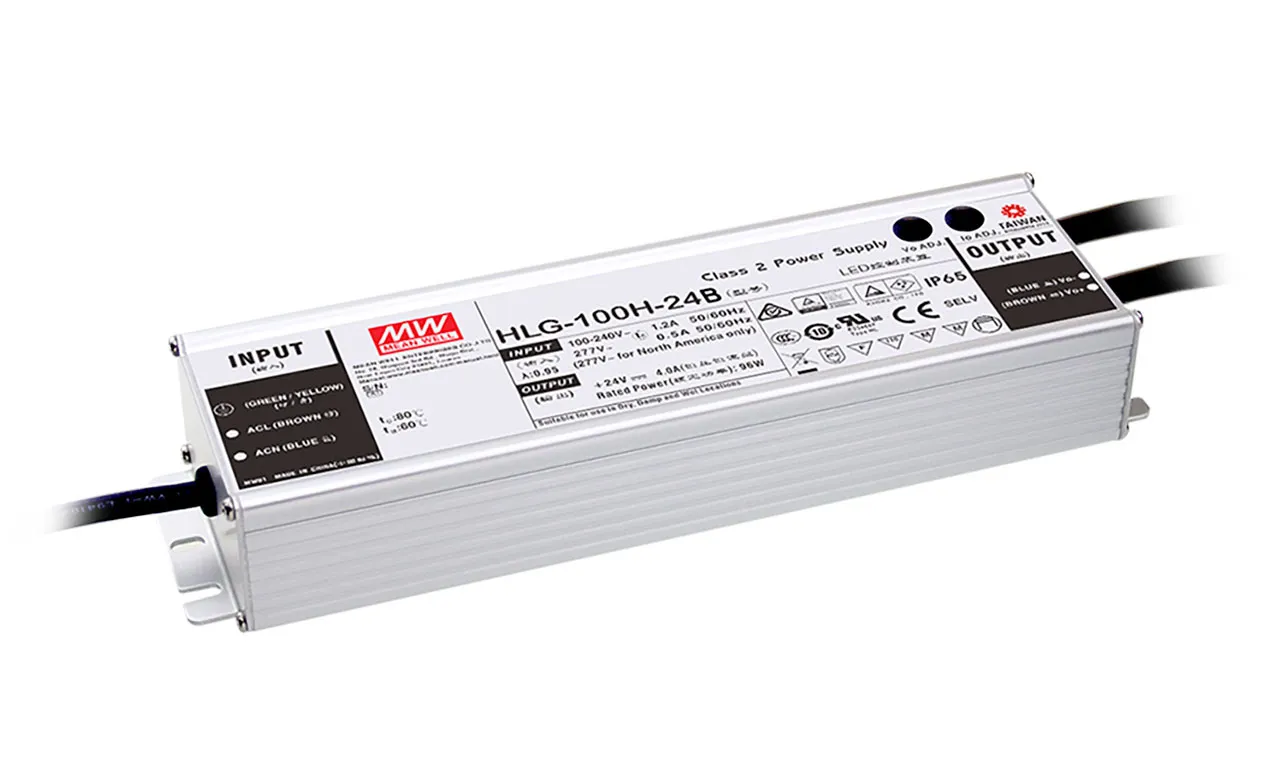

HLG-100H series is a 100W AC-DC LED driver featuring the dual mode constant voltage and constant current output. It operates from 90-305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93% and with the fanless design, the entire series can operate with -40C to +80C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.
Product Identification
Manufacturer Series:HLG-100H
Product Type:Auto Switching SMPS
Compliance
Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.53 in.
Width:2.68 in.
Length:8.66 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:1.2 A
Output
Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:54 VDC
Output Current:1.77 A
Output Range:N/A
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP65
Efficiency:93%
Power Rating:95.58 W
