Constant Voltage Constant Current Mode LED Driver 10A-20A 12V-24V IP65 Adjustable Current and Dimming 180-528VAC

Features

• Wide input range 180-528VAC
• Constant Voltage + Constant Current mode output
• AB model - Output current adjustable through built-in potentiometer & 3-in-1 dimming (1-10VDC, 10V PWM signal and resistance)
• Metal housing with Class I design
• Built-in active PFC function
• IP65 design for indoor or outdoor installations
• Typical lifetime: >50,000 hours
• 5-year warranty

Applications

• Greenhouse lighting
• Stadium lighting
• Mining lighting
• Type "HL" for use in Class I, Division 2 hazardous (classified) locations

Overview

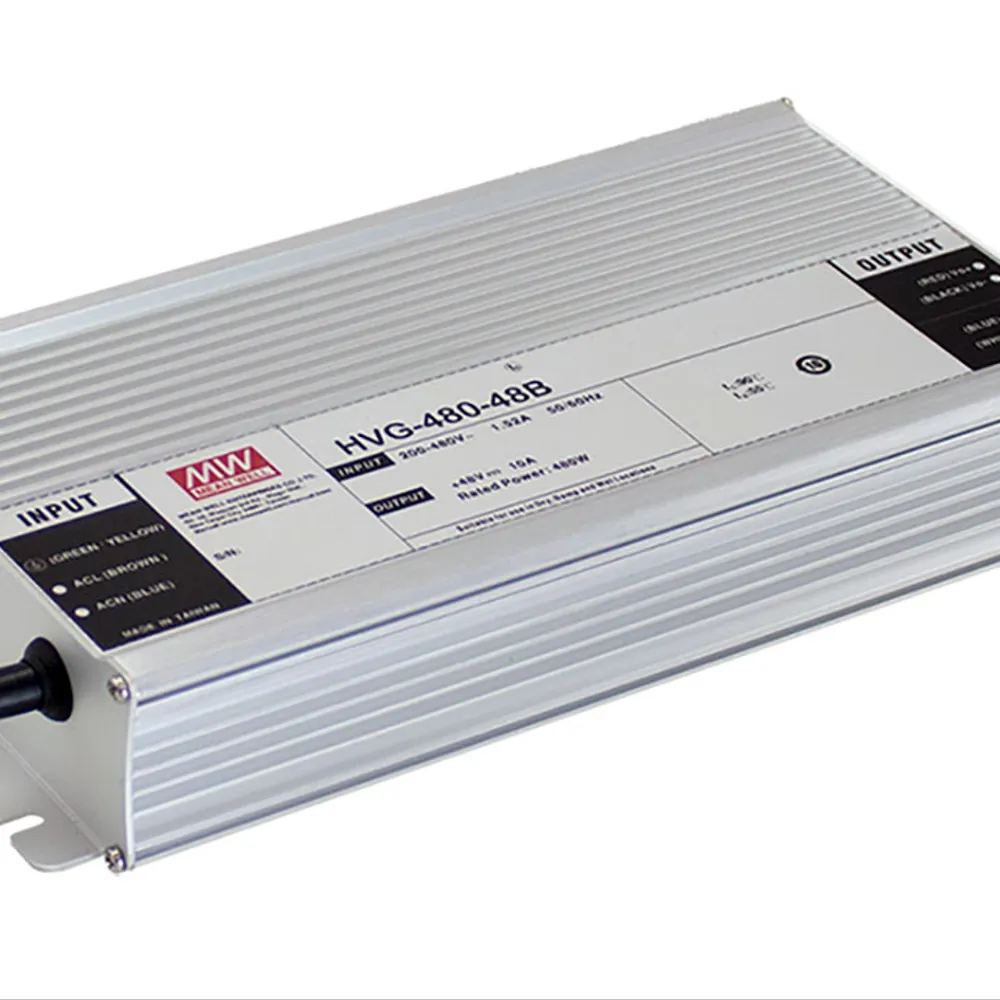

HVG-480 series is a 480W AC-DC LED driver featuring the dual mode constant voltage and constant current output. It operates from 180-528VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95% and with the fanless design, the entire series can operate with -40C to +85C case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVG-480 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.
