Constant Voltage Constant Current LED Driver 15V-30V 8A-16A Smart Timer Dimming and Programmable Made in Taiwan

Features

• Constant Voltage + Constant Current mode output
• Metal housing design with Class I design
• Built-in active PFC function
• IP67 or IP65 (model depending) for indoor or outdoor installations
• Function options: output adjustable via potentiometer, 3-in-1 dimming (dim-to-off), Smart timer dimming
• Typical lifetime >62,000 hours
• 7-year warranty
• Made in Taiwan

Overview

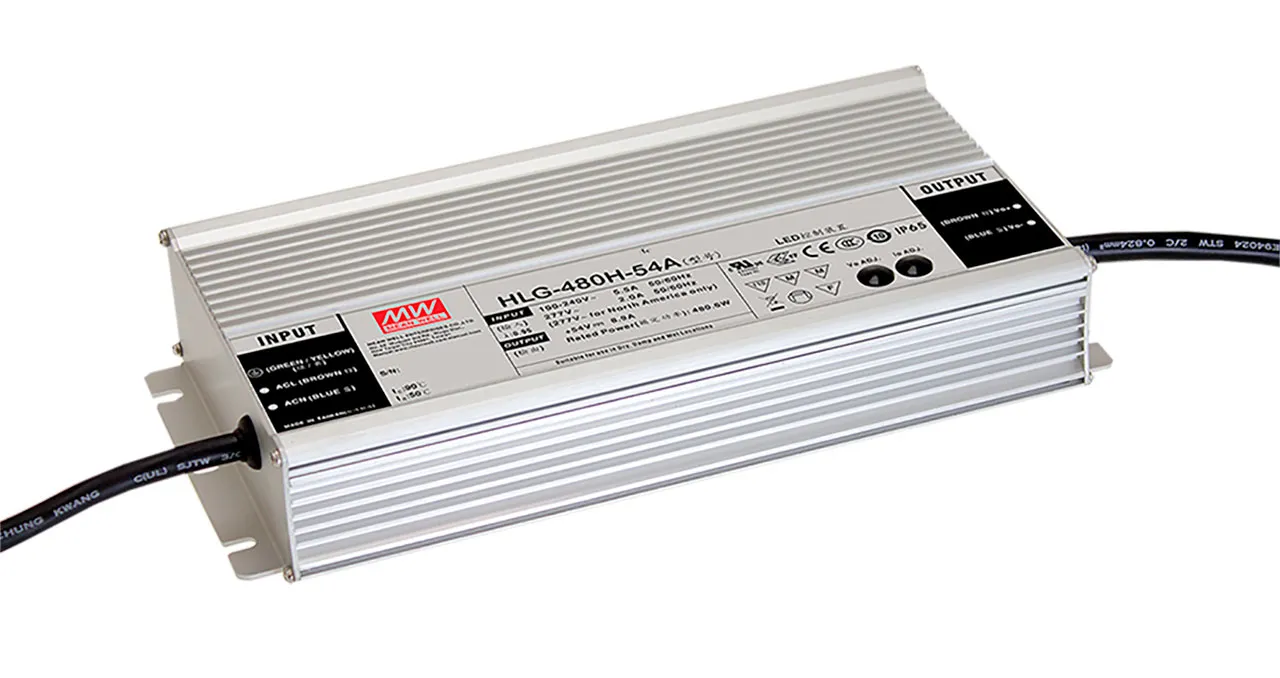

HLG-480H series is a 480W LED AC/DC driver featuring the dual mode constant voltage and constant current output. HLG-480H operates from 90-305 VAC and offers models with different rated voltages ranging between 24V and 54V. Thanks to the high efficiency up to 95.5% and the fanless design, the entire series can operate with -40C to +90C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-480H is equipped with various function options, such as dimming methodologies, to provide the optimal design flexibility for LED lighting systems.

Applications

• LED street lighting
• LED architectural lighting
• LED bay lighting
• Mining lighting
• Stadium lighting
• Harbor lighting
• Greenhouse lighting
• LED flood lighting
• Tyle "HL" for use in Class I, Division 2 hazardous (Classified) locations
