Constant Voltage and Constant Current LED Driver 60W-75W 36V 2.1A Adjustable Output with Dimming

Features

• Constant Voltage + Constant Current mode output
• Metal housing design with functional Ground
• Built-in active PFC function
• Class 2 power unit
• No load / Standby power consumption <0.5W
• IP67 or IP65 (model depending) for indoor or outdoor installations
• Function options: output adjustable via potentiometer, 3-in-1 dimming (dim-to-off), Smart timer dimming, DALI
• Typical lifetime >50,000 hours
• 5-year warranty

Applications

• LED street lighting
• LED architectural lighting
• LED bay lighting
• LED flood lighting
• Tyle "HL" for use in Class I, Division 2 hazardous (Classified) locations

Overview

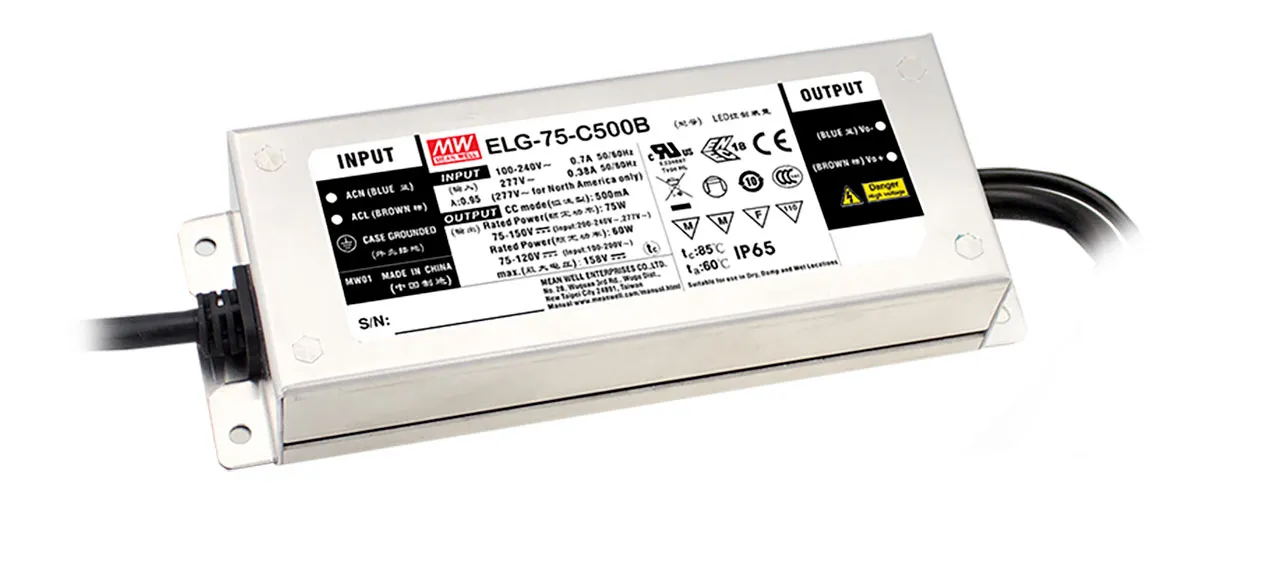

ELG-75 series is a 75W LED AC/DC driver featuring the dual mode constant voltage and constant current output. ELG-75 operates from 100-305 VAC and offers models with different rated voltages ranging between 12V and 48V. Thanks to the high efficiency up to 90% and the fanless design, the entire series can operate with -40C to +85C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.
