Constant Power Mode LED Driver 5.2A-8.67A 29V-58V Adjustable Current and DALI-2 Control
Features
- Wide input range of 90-305VAC
- Full power at 60% to 100% max current (Constant Power)
- Circular metal housing with IP67 design
- Built-in active PFC function
- Function options: output adjustable via potentiometer; 3 in 1 dimming (Dim to off and Isolation); DALI-2 control
- Typical lifetime: >50,000 hours
- 5-year warranty
Applications
- Bay lighting
- Stage lighting
- Flood lighting
- Stadium lighting
- Type "HL" for use in Class I, Division 2 locations
Overview

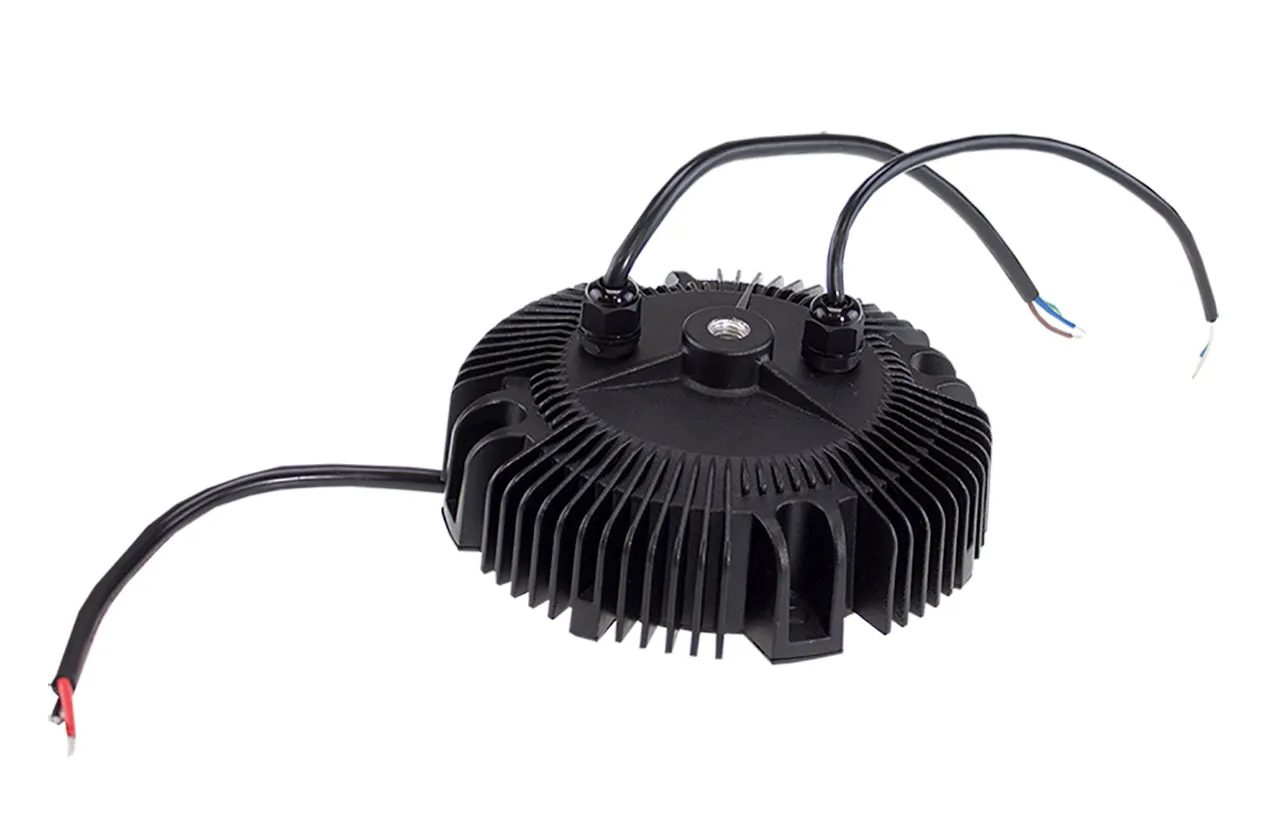

HBGC-300 series is a 300W AC-DC LED driver featuring the constant power mode and high voltage output. It operates from 90-305VAC and offers models with different rated current ranging between 1300mA and 8670mA. Thanks to the high efficiency up to 94.5% and with the fanless design, the entire series can operate with -40C to +80C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability allows this series to reliably light LEDs for all kinds of applications environments just about anywhere you can think. HBGC-300 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.
