Constant Power Mode LED Driver 256W-301W 2.6A-4A 58-116V DALI-2 Control and Current Adjustable
Features
- Full power at 65% to 100% operation (constant power)
- Protection functions: over current, short circuit, over voltage, over temperature
- IP67 for indoor or outdoor installations
- Function options: output adjustable via potentiometer, 3-in-1 dimming (dim-to-off), DALI-2 dimming
- Typical lifetime >50,000 hours
- 5-year warranty
- Surge protection with 6KV/4KV
- Latest safety requirements of IEC61347/GB19510 and UL8750
Applications
- LED bay lighting
- LED stage lighting
- LED fishing lighting
- LED flood lighting
- LED horticulture lighting
- Tyle "HL" for use in Class I, Division 2 hazardous (Classified) locations
Overview

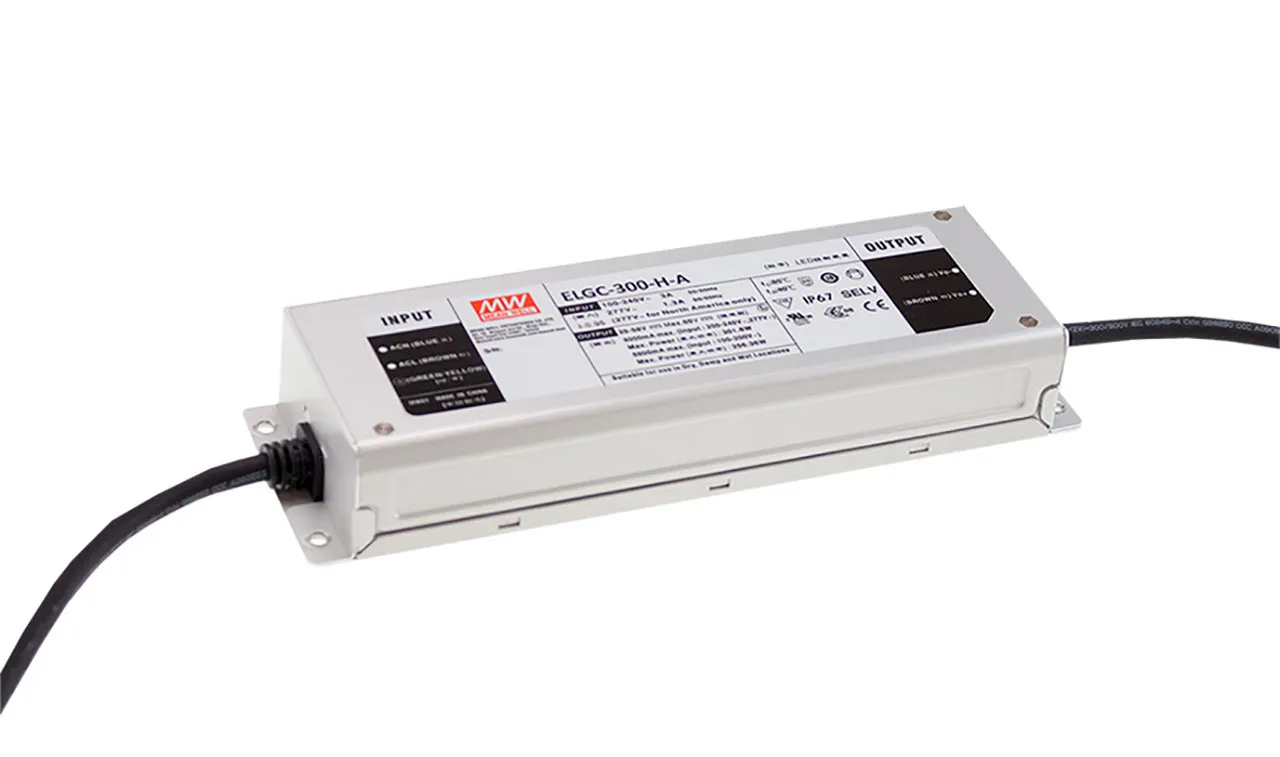

ELGC-300 series is a 300W LED AC/DC driver featuring constant power mode and high voltage output. ELGC-300 operates from 100-305 VAC and offers models with different rated current ranging between 1300mA and 8000mA. Thanks to the high efficiency up to 94.5% and the fanless design, the entire series can operate with -40C to +85C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability allows this series to reliably light LEDs in all kinds of application environments in just about any place you can think to install LED luminaires. ELGC-300 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.
