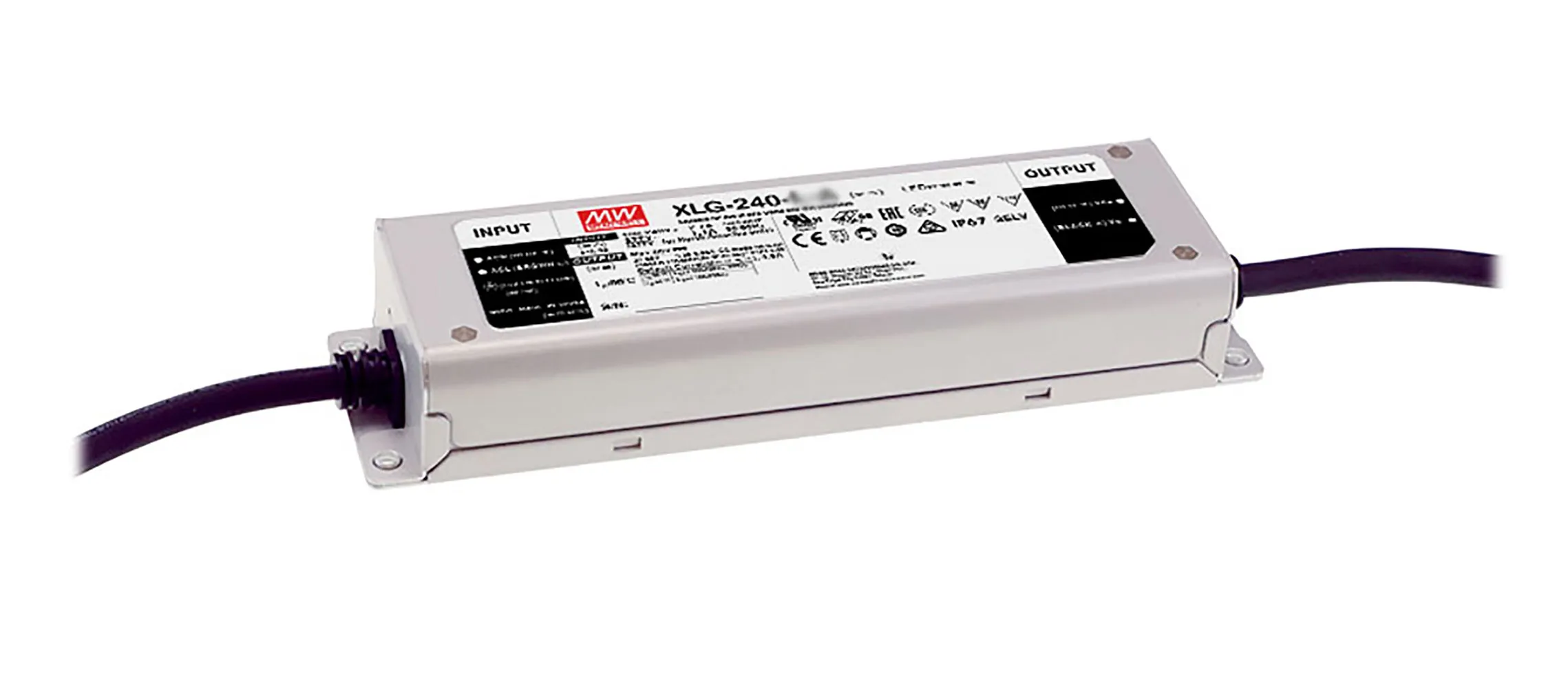

Constant Power LED Driver with Adjustable Output Current and Dimming Function 240W 90V to 171V 1.4A

90 to 171 Volts DC @ 1.4 Amps (Constant current region: 90V to 171V; Full Power Current Range: 1.4A to 2.1A)

Find out more about MEAN WELL power solutions for outdoor lighting.

Features

  • 3 in 1 dimming function (Dim to off and Isolation design), (0-10VDC, 10V PWM signal and resistance)
  • Wide input voltage range: 100 to 305 VAC (Class I), 2.7A@115VAC, 1.3A@230VAC, 1.1A@277VAC
  • Full power output at 70 to 100% constant power mode operation
  • Metal case with IP67, suitable for outdoor applications
  • Surge protection with 6 KV/4 KV
  • Power Factor Correction (PFC)
  • Protection functions: Over voltage, short circuit, over current, over temperature
  • Life time: >50,000 hours
  • 5 year warranty

Specifications

  • DC Voltage: 90 to 171 V
  • Rated current: 1.4 A
  • Rated power: 239.4 W
  • Current adjustment range: 2.4 A to 6.66 A
  • Dimensions: 8.62"L x 2.48"W x 1.40"H

Applications

  • Skyscraper and commercial building lighting
  • Street lighting
  • Floodlights
  • Stage lighting
  • Fishing and marine lighting
  • Horticulture lighting
  • Bay lighting
  • Type HL for use in Class I, Division 2

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:XLG-240

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.4 in.
Width:2.48 in.
Length:8.62 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:2.7 A

Output

Number of Outputs:1
Output Current (Channel 1):1.40 A to 2.10 A
Output Connector Type:Stripped and Tinned
Output Voltage (Channel 1):90 VDC to 171 VDC
Output Voltage:See Output Range
Output Current:1.40 A
Output Range:90 VDC to 171 VDC

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:92.5%
Power Rating:239.4 W
,
