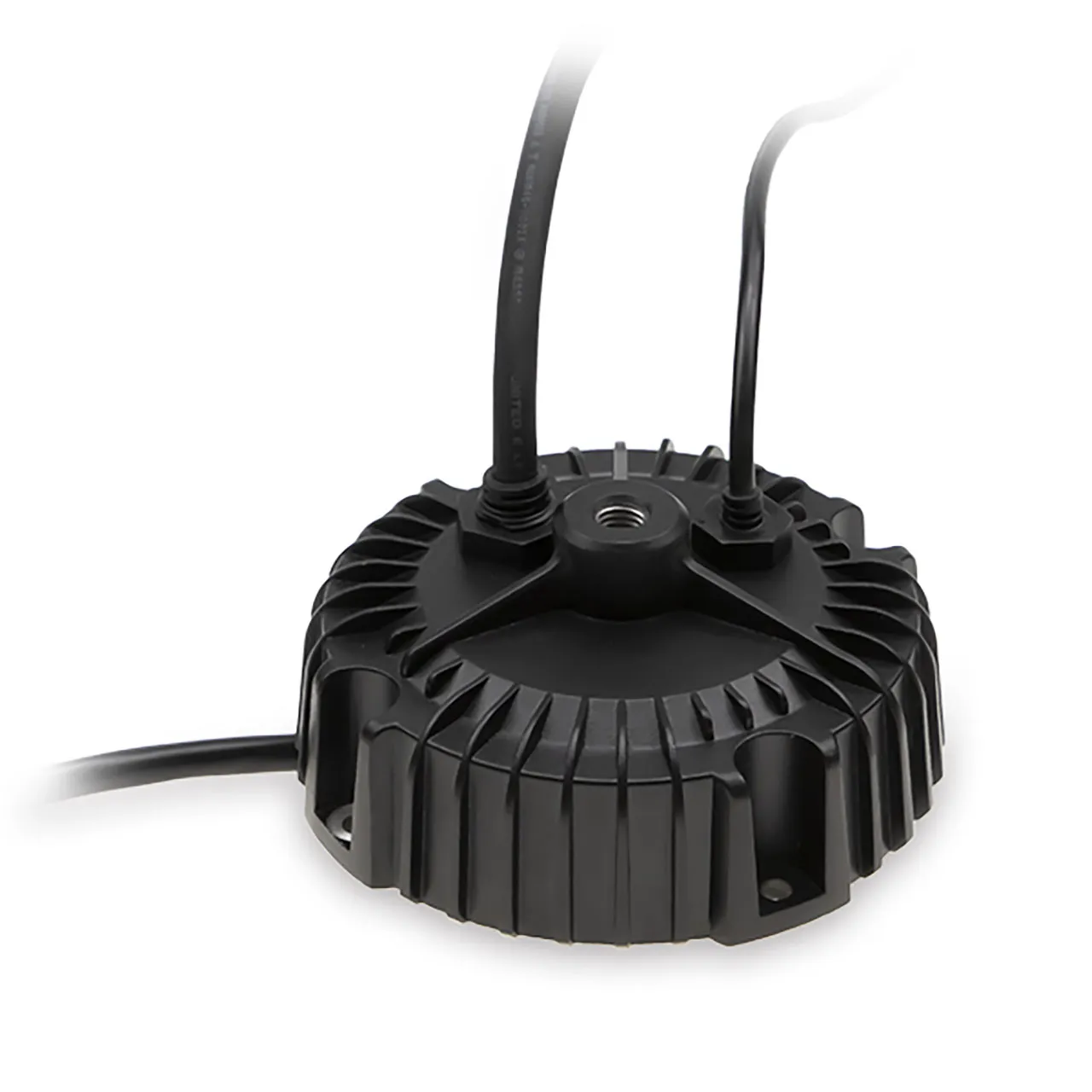

Constant Power LED Driver 240W 2000-5700mA 27V-56V Constant Power Adjustable with Connector

Features

  • Full power output at 70%-100% constant current range operation
  • Wide input range 90-305VAC with active PFC function
  • Metal housing design with IP67
  • Multiple dimming functions: 3-in-1 (0-10V/PWM/resistance), *-AB models only
  • Dimming circuit with Isolation for latest safety regulation
  • Surge protection with 6KV/4KV
  • Typical lifetime >50,000 hours and 5-year warranty
  • AC input cable with connector for flexible installation (*-C models only)

Overview

XBG-240 series is a 240W AC/DC LED driver featuring constant power mode. XBG-240 operates from 90-305VAC and offers different rated current ranging between 4000mA and 5700mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series can operate with -40C to +90C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability allows this series to reliably light the LEDs of all kinds of application environments. XHB-240 series complies with the latest version of IEC61347/IEC60598-1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation.

Applications

  • LED bay lighting
  • LED stage lighting
  • LED spot lighting
  • Explosion-proof lighting
  • Type HL LED driver for Class 1, Division 2

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:XBG-240

Compliance

Agency Approvals: CB, CCC, CE, C-TICK, CUL, EAC, EN, ENEC, IS, SELV, UKCA, UL

Dimensions & Appearance

Style:Enclosed
Color:Black
Height:2.56 in.
Width:6.93 in.
Length:6.93 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:3.2 A

Output

Number of Outputs:1
Output Voltage (Channel 1):30 VDC to 60 VDC
Output Current (Channel 1):2 A to 5.70 A
Output Connector Type:Stripped and Tinned
Output Range:30 VDC to 60 VDC
Output Voltage:See Output Range
Output Current:5.70 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:93%
Power Rating:240 W
,
