Constant Power LED Driver 160W 1425-4100mA 27V-56V Output Adjustable and Dimming with Connector
Features
- Full power output at 70%-100% constant current range operation
- Wide input range 90-305VAC with active PFC function

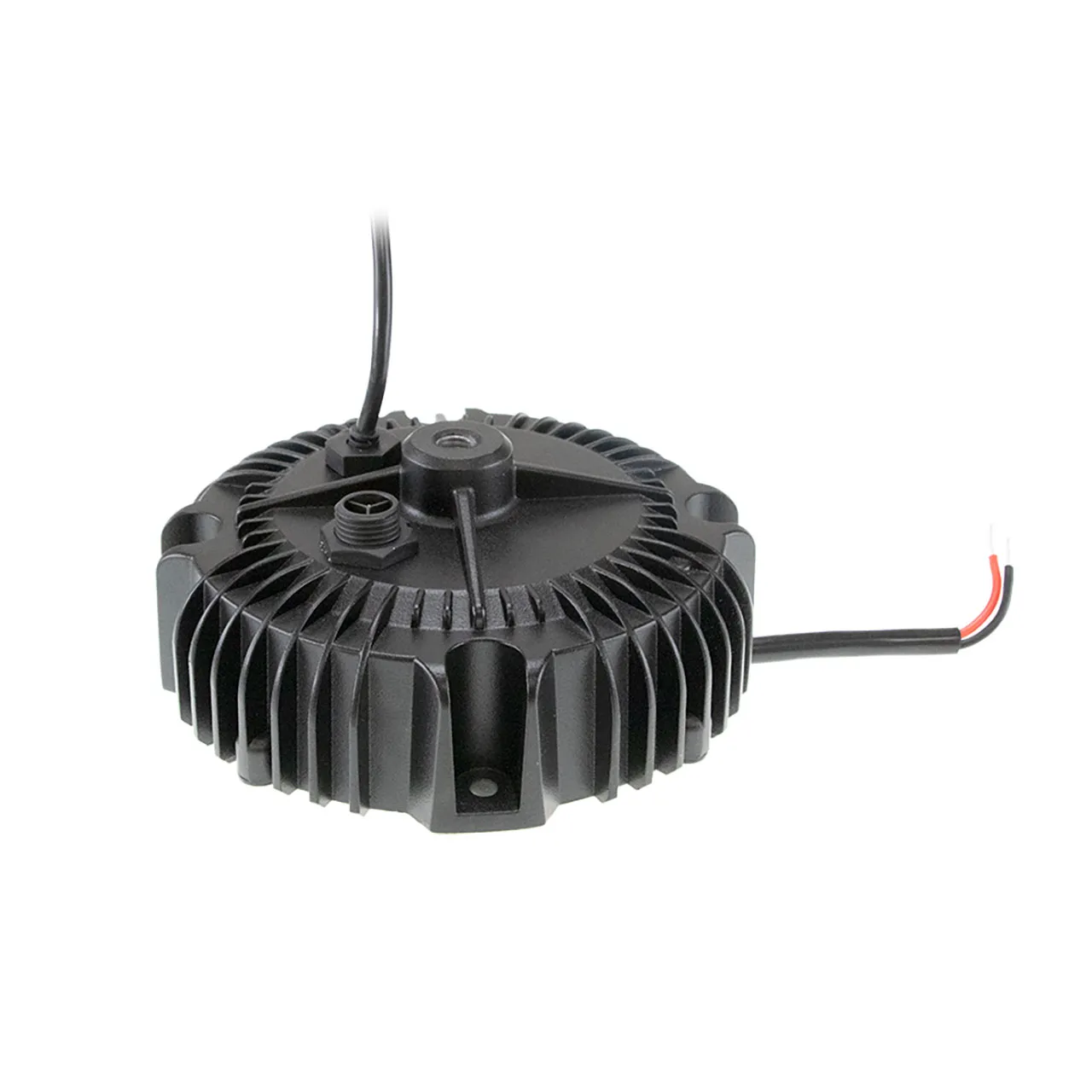

- Metal housing design with IP67
- Multiple dimming functions: 3-in-1 (0-10V/PWM/resistance), *-AB models only
- Dimming circuit with Isolation for latest safety regulation
- Typical lifetime >50,000 hours and 5-year warranty
- AC input cable with connector for flexible installation (*-C models only)
Overview
XBG-160 series is a 160W AC/DC LED driver featuring constant power mode. XBG-160 operates from 90-305VAC and offers different rated current ranging between 28500mA and 4100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series can operate with -40C to +90C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability allows this series to reliably light the LEDs of all kinds of application environments in just about any spot you could think of to install LED luminaires. XHB-160 series complies with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation.
Applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Explosion-proof lighting
- Type HL LED driver for Class 1, Division 2
