Constant Current Mode LED Driver 700mA 214V-428V IP67 DALI Control

Features

  • Constant Current mode output
  • DA model - DALI control technology
  • Universal AC input / Full range (up to 305VAC)
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 design for indoor or outdoor installations
  • Typical lifetime: >62,000 hours
  • 7-year warranty

      • Applications

      • Street lighting
      • Fishing lighting
      • Harbor lighting
      • building architectural lamp
      • Greenhouse lighting
      • Bay lighting

      Overview

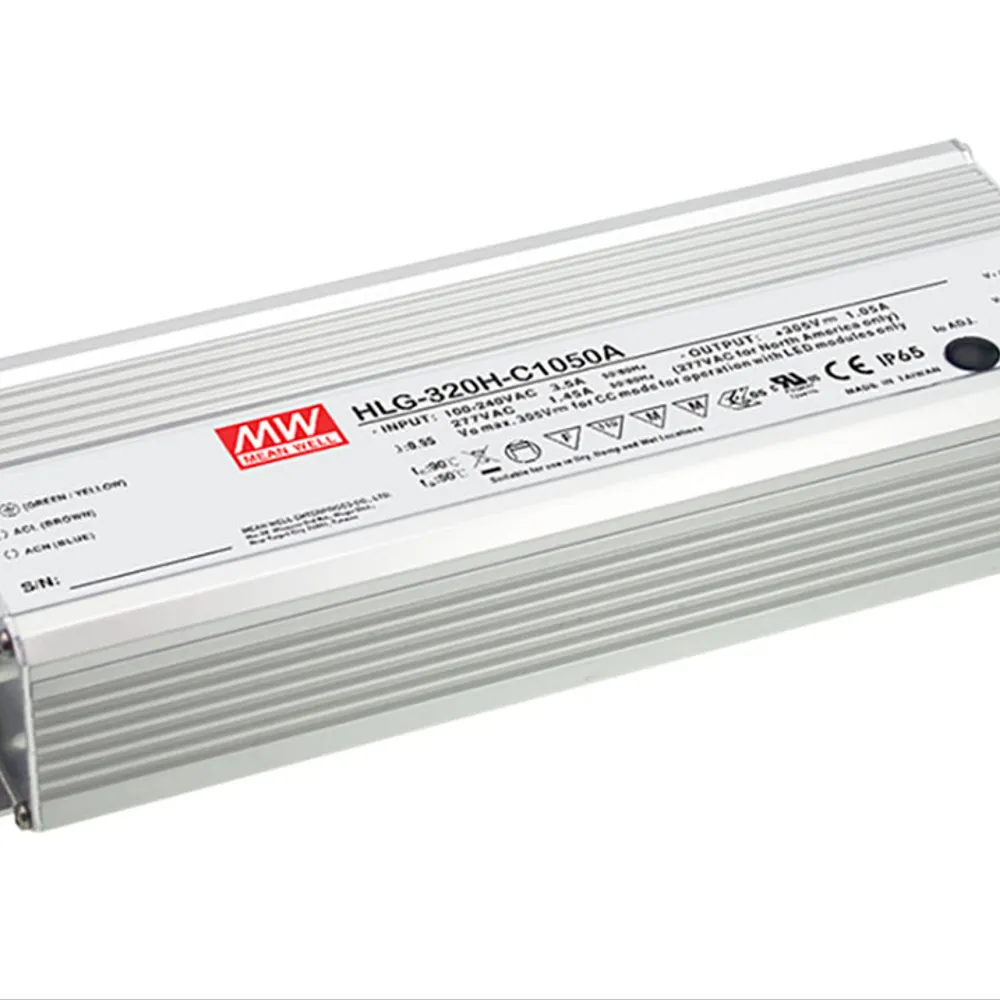

      HLG-320H-C series is a 320W AC-DC LED driver featuring the constant current mode and high voltage output. It operates from 90-305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94% and with the fanless design, the entire series can operate with -40C to +85C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.

Product Identification

Manufacturer Series:HLG-320H-C
Product Type:Auto Switching SMPS

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, ENEC, EAC, CCC

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.72 in.
Width:3.54 in.
Length:9.92 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:3.5 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Current:0.70 A
Output Voltage:See Output Range
Output Range:214 VDC to 428 VDC

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:94%
Power Rating:299.6 W
,
