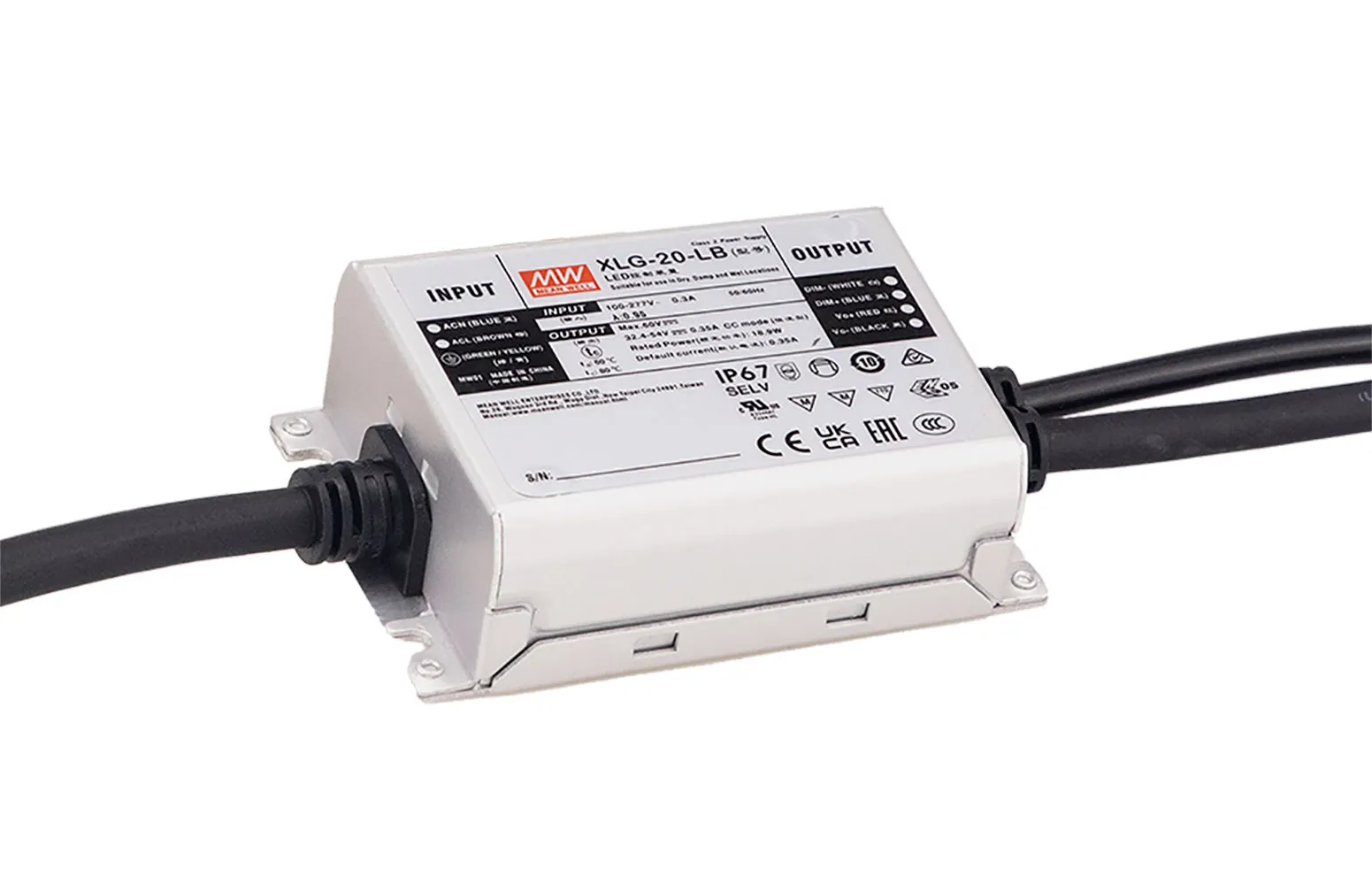

Constant Current Mode LED Driver 350mA 32.4V to 54V IP67 Fixed Output Current and 3-in-1 Dimming
Find out more about MEAN WELL power solutions for outdoor lighting.Features
- Constant current mode output
- Wide input range 90-305 VAC (Class I)
- Built-in active PFC function
- Class 2 power unit
- No load power consumption <0.5W
- 3 in 1 dimming function (Isolation design) (1-10VDC, 10V PWM signal, and resistance)
- IP67 rating for indoor or outdoor installations
- Lifetime >50,000 hours and 5 year warranty
Specifications
- Rated Output Current: 350 mA
- Constant Current Region: 32.4 to 54 VDC
- Rated Power: 18.9 W
- Input Voltage Range: 90 to 305 VAC @ 47 to 63 Hz; 0.3A (115VAC)
- Efficiency: 89%
- Agency Approvals: UL, CUL, CB, CE, EN, EAC, ENEC, UKCA, C-Tick
- Size: 3.74"L x 2.48"W x 1.18"H
Applications
- Street lighting
- Architectural lighting
- Low bay lighting
- Floodlights
- Industrial lighting
- Type "HL" for use in Class I, Division 2 hazardous (Classified) locations
Product Identification
Product Type:Constand Current Mode LED Driver SMPS
Manufacturer Series:XLG-20
Compliance
Agency Approvals:UL, CUL, CB, CE, EN, EAC, ENEC, UKCA, C-Tick
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.18 in.
Width:2.48 in.
Length:3.74 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C
Input
Input Frequency:47 Hz to 63 Hz
Maximum Input Current:0.3 A
Input Voltage:90 VAC to 305 VAC
Output
Number of Outputs:1
Output Current (Channel 1):0.35 A
Output Voltage (Channel 1):32.4 VDC to 54 VDC
Output Current:0.35 A
Output Connector Type:Wires
Output Voltage:See Output Range
Output Range:32.4 VDC to 54 VDC
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:89%
Power Rating:18.9 W
