Constant Current Mode LED Driver 3500mA 68V-138V IP65 Adjustable Current and Dimming

Features

  • Constant Current mode output
  • AB model - Output current adjustable through built-in potentiometer & 3-in-1 dimming (1-10VDC, 10V PWM signal and resistance)
  • Universal AC input / Full range (up to 305VAC)
  • Metal housing with class I design
  • Built-in active PFC function
  • IP65 design for indoor or outdoor installations
  • Typical lifetime: >62,000 hours
  • 7-year warranty

      • Applications

      • Street lighting
      • Fishing lighting
      • Harbor lighting
      • Mining lighting
      • Greenhouse lighting
      • Bay lighting

      Overview

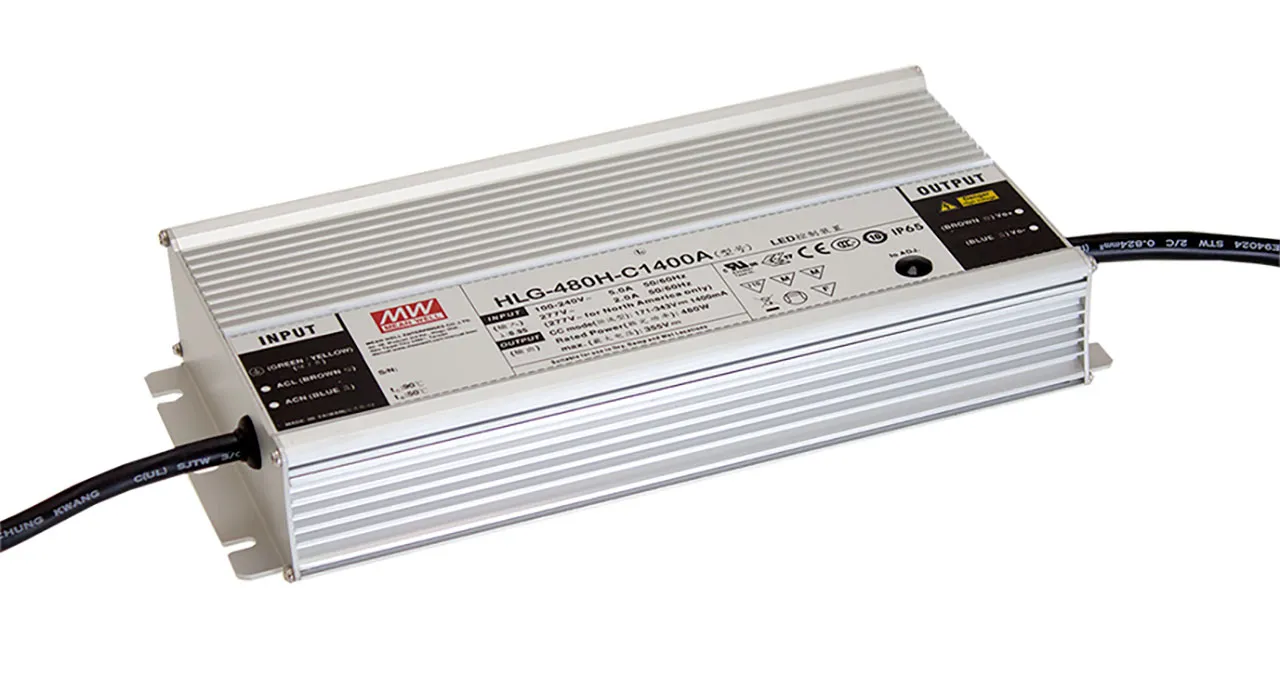

      HLG-480H-C series is a 480W AC-DC LED driver featuring the constant current mode and high voltage output. It operates from 90-305VAC and offers models with different rated current ranging between 1400mA and 3500mA. Thanks to the high efficiency up to 94% and with the fanless design, the entire series can operate with -40C to +85C case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability allows this series to reliably light LEDs in all kinds of application environments in almost any place that one can install LED luminaires. HLG-480H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.

Product Identification

Manufacturer Series:HLG-480H-C
Product Type:Auto Switching SMPS

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.72 in.
Length:10.31 in.
Width:4.92 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:5 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Range:68 VDC to 137 VDC
Output Current:3.50 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP65
Efficiency:95%
Power Rating:480 W
,
