Constant Current Mode LED Driver 1750mA-3500A 45V-91V IP65 Adjustable Current and Dimming
Features
- Wide input range 180-528VAC
- Constant Current mode output
- AB model - Output current adjustable through built-in potentiometer & 3-in-1 dimming (1-10VDC, 10V PWM signal and resistance)
- Metal housing with Class I design
- Built-in active PFC function
- IP65 design for indoor or outdoor installations
- Typical lifetime: >50,000 hours
- 5-year warranty
- Greenhouse lighting
- Stadium lighting
- Mining lighting
- Type "HL" for use in Class I, Division 2 hazardous (classified) locations
Applications
Overview

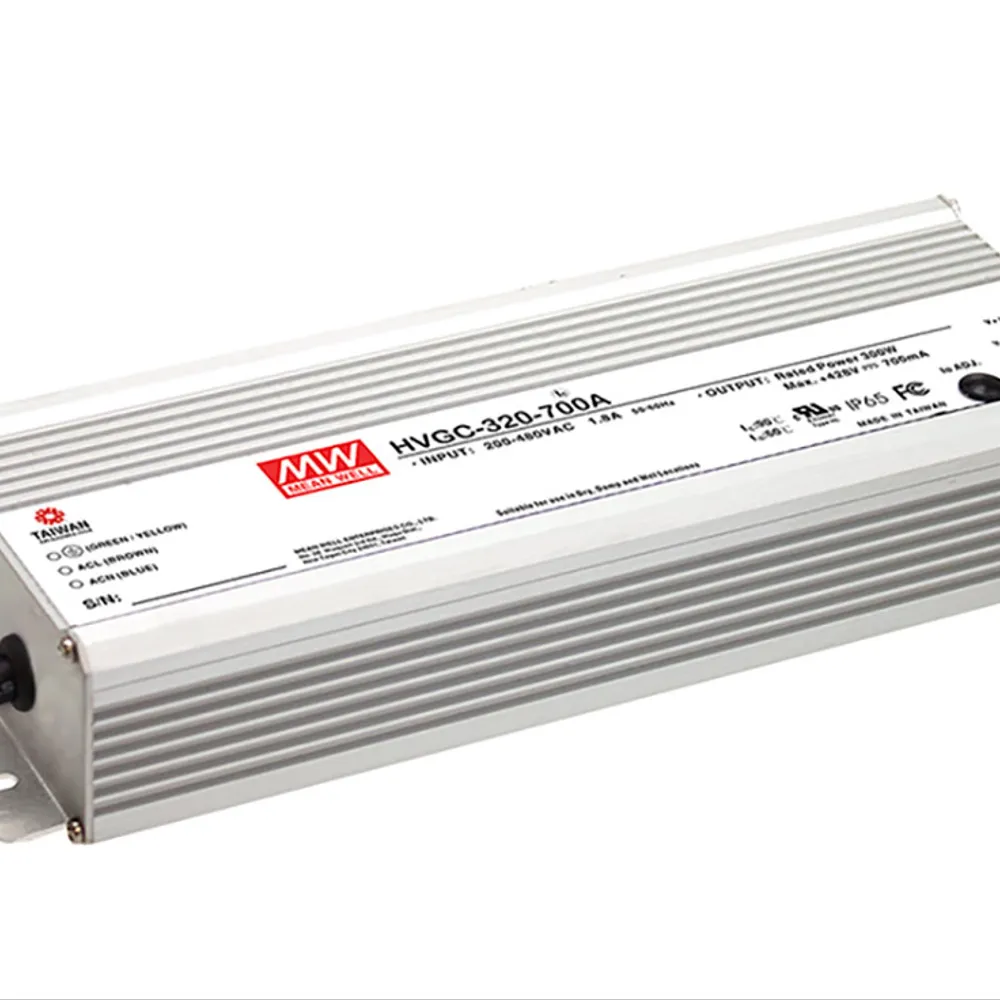

HVGC-320 series is a 320W AC-DC LED driver featuring the constant current mode and high voltage output. It operates from 180-528VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 93.5% and with the fanless design, the entire series can operate with -40C to +90C case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-320 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:HVGC-320
Compliance
Agency Approvals: CE, CUL, EAC, EN, ENEC, FCC, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.72 in.
Length:10.32 in.
Width:3.54 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 528 VAC
Maximum Input Current:1.1 A
Output
Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:See Output Range
Output Range:45.7 VDC to 91.4 VDC
Output Current:3.50 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP65
Efficiency:93%
Power Rating:320 W
