Constant Current Mode LED Driver 105W-150W 1400mA 54-107VDC Fixed Output 3-Wire Input

Features

• Constant current mode output
• Metal housing design with functional Ground
• Built-in active PFC function
• No load / Standby power consumption <0.5W
• IP67 or IP65 (model depending) for indoor or outdoor installations
• Function options: output adjustable via potentiometer, 3-in-1 dimming (dim-to-off), Smart timer dimming, DALI
• Typical lifetime >50,000 hours
• 5-year warranty

Applications

• LED street lighting
• LED harbor lighting
• LED bay lighting
• LED greenhouse lighting
• LED flood lighting
• Tyle "HL" for use in Class I, Division 2 hazardous (Classified) locations

Overview

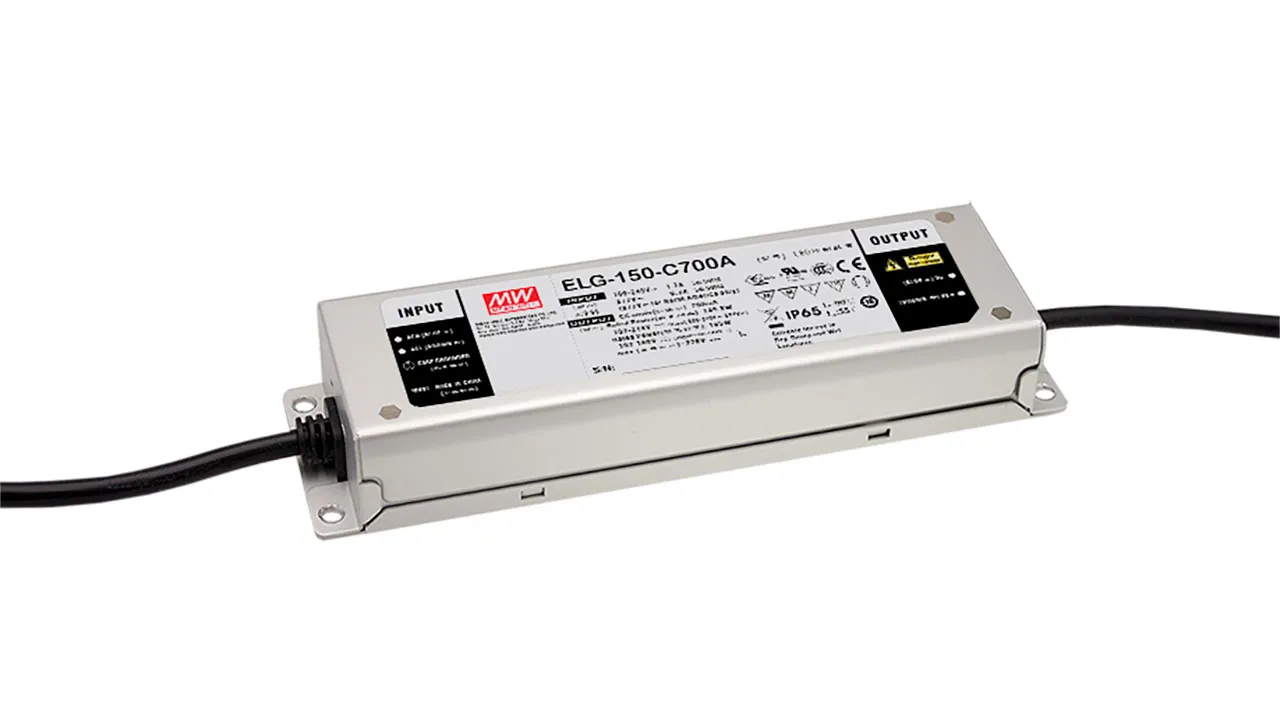

ELG-150-C series is a 150W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-150-C operates from 100-360 VAC and offers models with different rated current ranging between 500mA and 2100mA. Thanks to the high efficiency up to 92% and the fanless design, the entire series can operate with -40C to +85C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-150-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.
