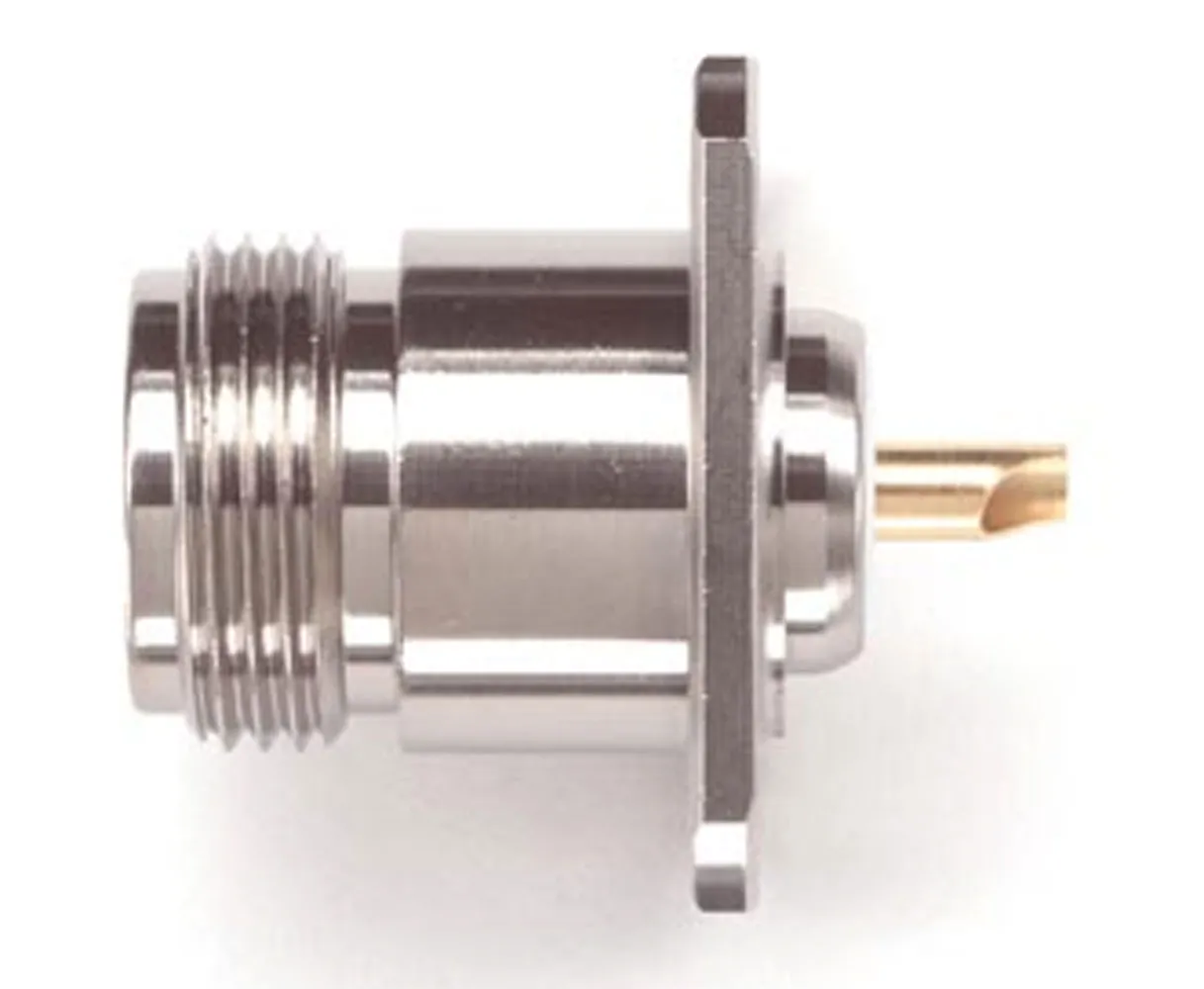

N-Type Connector Receptacle Female Socket 50 Ohm Panel Mount Solder Cup

Specifications

  • Connector Style: N Type
  • Connector Type: Receptacle, Female Socket
  • Contact Termination: Solder Cup
  • Shield Termination: Solder
  • Impedance: 50 Ohm
  • Mounting Type: Panel Mount
  • Mounting Feature: Flange
  • Fastening Type: Threaded
  • Number of Ports: 1
  • Housing Color: Silver
  • Center Contact Material: Beryllium Copper
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Operating Temperature: -65°C to 165°C
  • Voltage Rating: 1000 V

Product Identification

Family:N-Type

Dimensions & Appearance

Body Material:Brass
Body Orientation:Straight
Mounting:Panel Mount
Diameter:14.99 mm
Depth:11.69 mm
Height:25.40 mm
Length:28.45 mm
Body Plating:Nickel

Operating conditions

Maximum Operating Temperature:165°C
Minimum Operating Temperature:-65°C

Features

Contact Material:Beryllium Copper
Terminates To:Coaxial Cable
Operating Frequency:N/A
Contact Plating:Gold
Insulation Material:Polytetrafluoroethylene (PTFE)
Impedance:50 Ohm
Termination Method:Solder Cup
Gender:Receptacle, Female Socket
,
