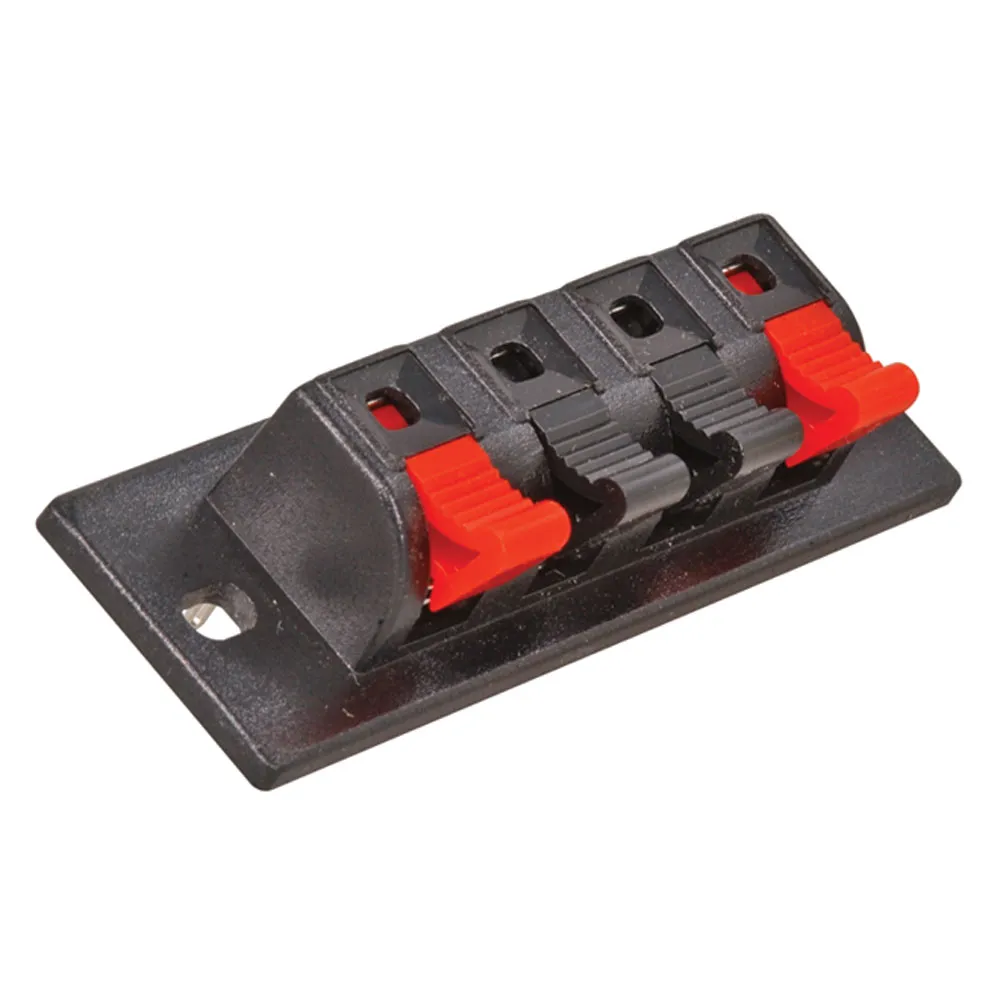

4-position Pushbutton Terminals
Features:
- Use on speaker and amplifier connections
- 2 red and 2 black spring loaded posts
- 3" x 1" x 1-1/8"
- 2-1/2" mounting center
Product Identification
Product Type:Spring, Stereo
Dimensions & Appearance
Body Orientation:Straight
Color:Black, Black/Red, Red
Mounting:Panel Mount
Dimensions:31.8L x 25.4W x 76.2H (mm)
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:65°C
Features
Number of Contacts:4
Contact Material:Copper Alloy
Termination Method:Solder Lug
Contact Plating:Nickel
Gender:Jack
Housing Material:Thermoplastic
Voltage Rating:25 VDC
Current Rating:2 A
