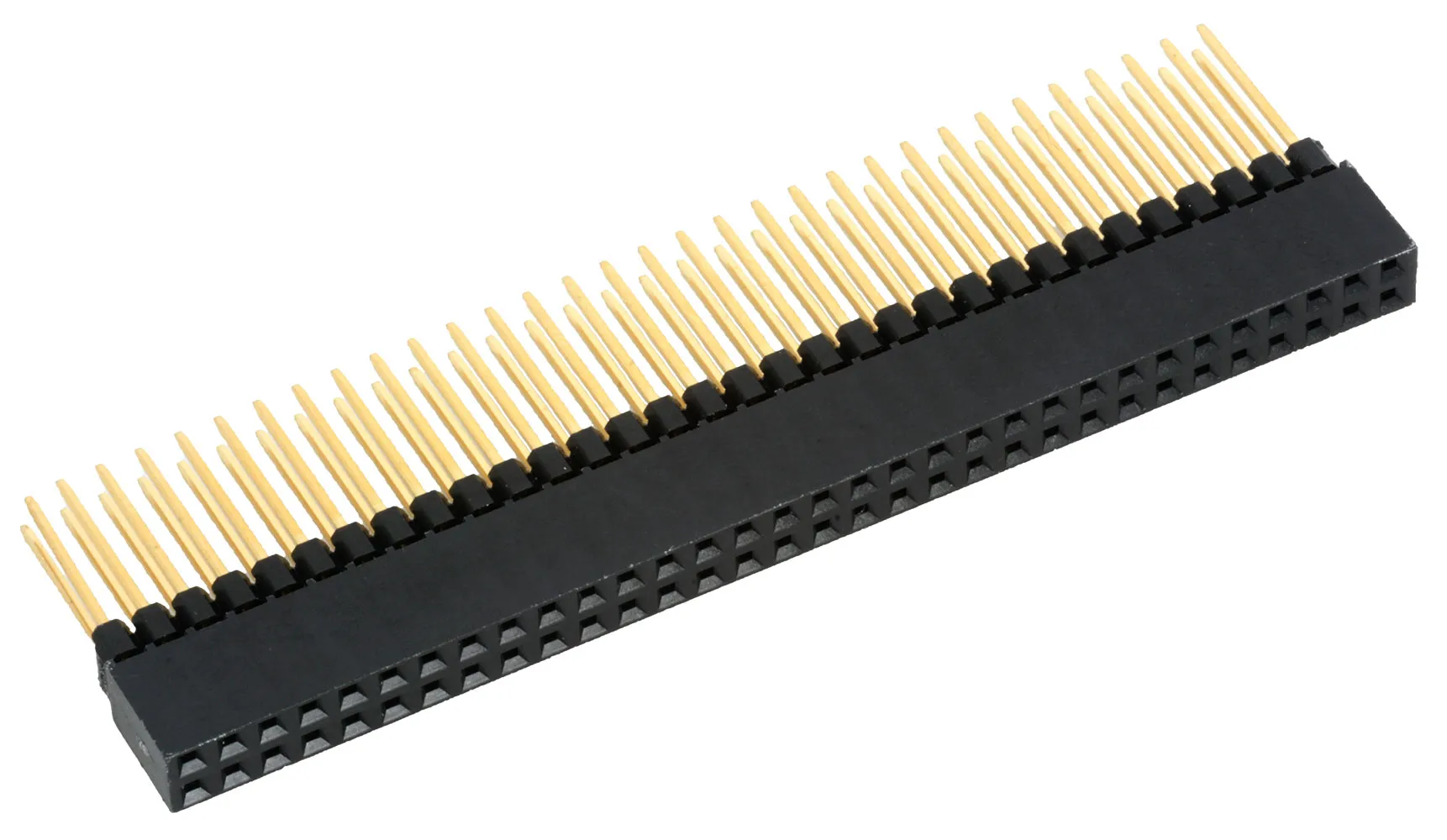

Connector Stackthrough Unkeyed 64 Position Through Hole Black PC/104 Gold Finish

Specifications

  • Connector Type: Stackthrough, Unkeyed (PC/104)
  • Connector Style: PC/104
  • Number of Positions: 64
  • Number of Positions Loaded: All
  • Pitch: 0.100" (2.54 mm)
  • Number of Rows: 2
  • Mounting Type: Through Hole
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 3 µin (0.076 µm)
  • Color: Black
  • Current Rating (Amps): 3 A
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C to 105°C

Product Identification

Manufacturer Series:ValuePro

Dimensions & Appearance

Depth:11.05 mm
Length:82.05 mm
Body Orientation:Straight

Features

Number of Rows:2
Housing Color:Black
Maximum Contact Resistance:30 mOhm
Contact Plating:Gold
Gender:Female
Contact Material:Phosphor Bronze
Number of Contacts:64
Housing Material:Thermoplastic
Voltage Rating:12 VDC
Pitch:2.54 mm
Current Rating:1 A
,
