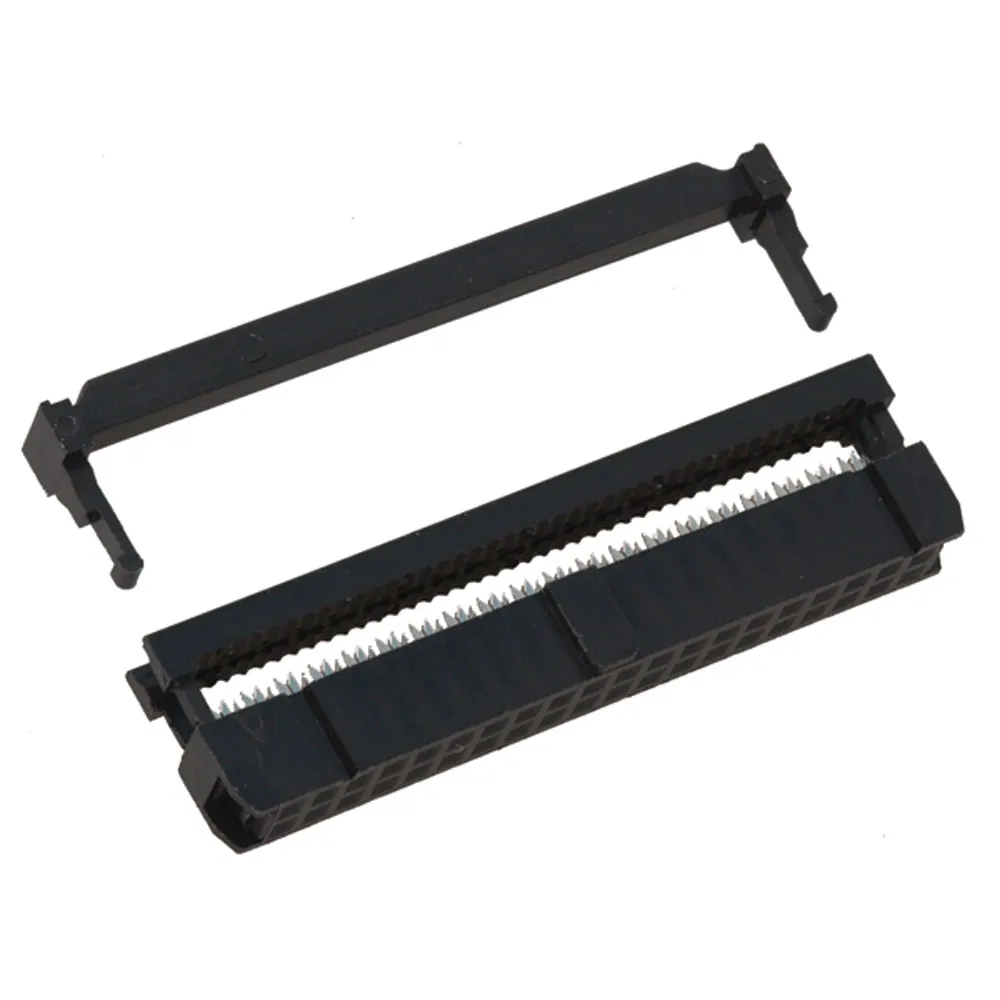

Connector Socket Strip 40 Position 0.1" (2.54MM) IDC Right Angle Cable Mount

Jameco Part #:

Manufacturer #:

Product Price:

$0.890

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$0.890	-	-
10+	$0.790	0.10	11.24%
50+	$0.690	0.20	22.47%
100+	$0.590	0.30	33.71%
500+	$0.490	0.40	44.94%

0.1" (2.54mm) IDC Socket Connector, 40 Position, Polarized

Double row
40 contacts
Current rating: 1A
Mates with 2 rows of 0.025" square/diameter posts on patterns of 0.1" centers
(straight double row or right angle double row, or shrouded box headers)
Industry standard IDC socket (plastic)
Temp. rating: -55°C to +105°C
Use crimper P/N 73252
Includes strain relief
For Ribbon Cable

Length:55.37 mm

Body Orientation:Right Angle

Terminal Pitch:0.1 in, 2.54 mm

Number of Rows:2

Housing Color:Black

Maximum Contact Resistance:30 mOhm

Contact Material:Phosphor Bronze

Contact Plating:Phosphor Bronze

Number of Contacts:40

Housing Material:Polybutylene Terephthalate

Gender:Receptacle

Current Rating:1 A

Voltage Rating:250 VAC, 250 VDC
