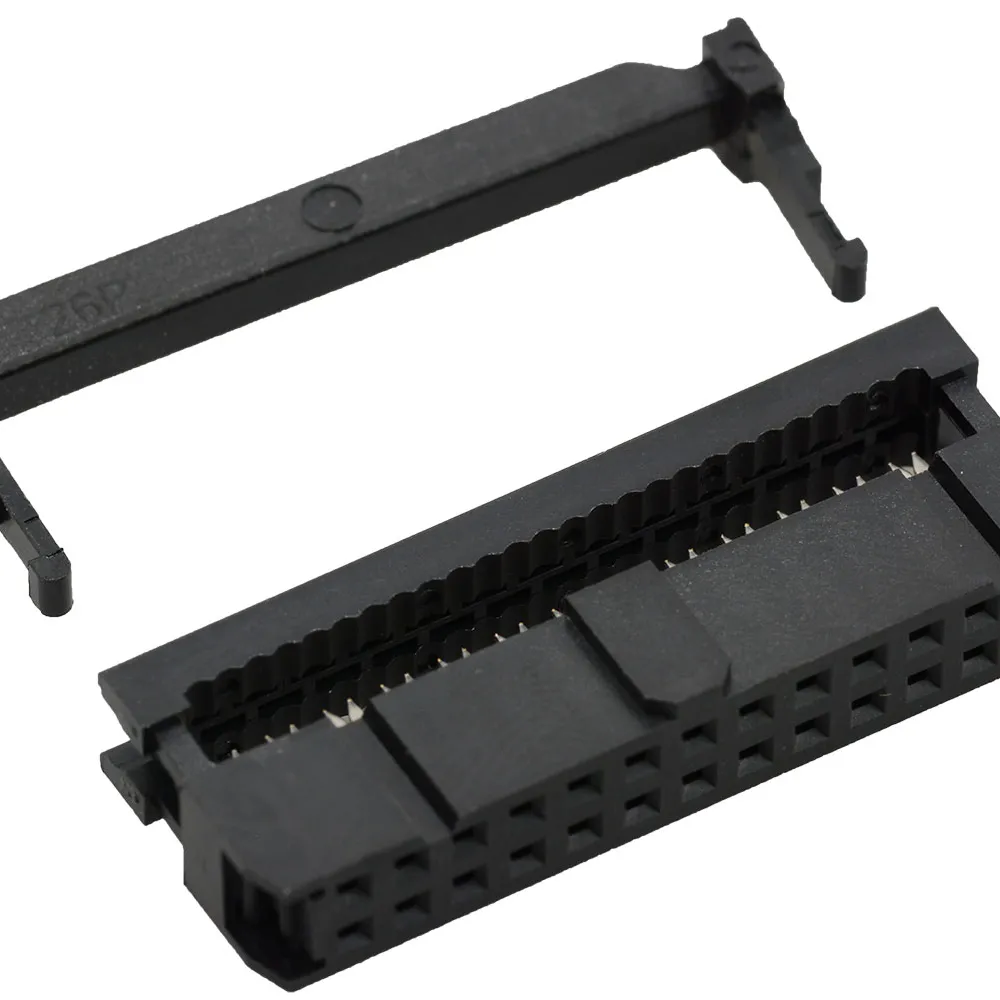

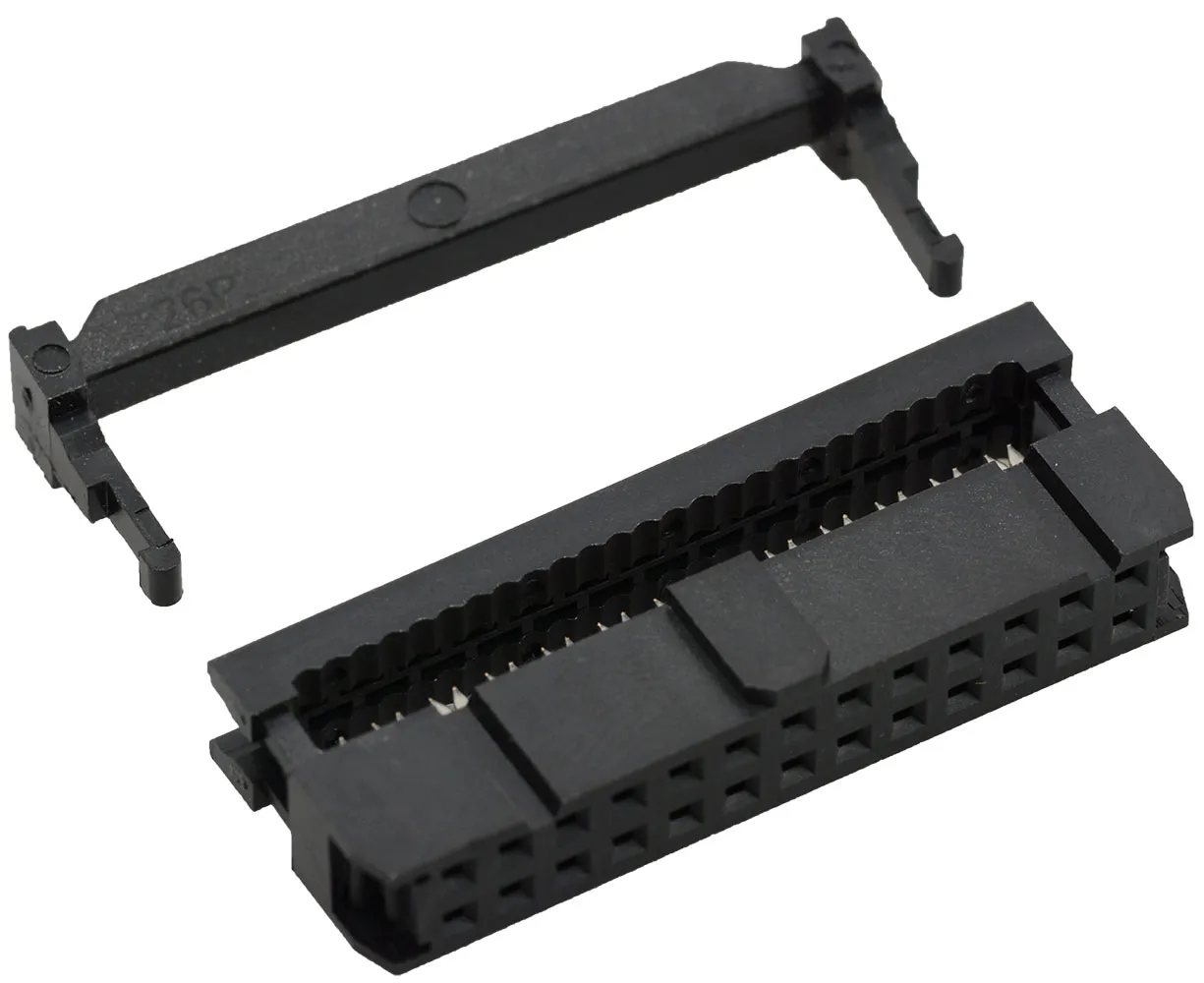

0.1" (2.54mm) IDC Socket Connector, 26 Position, Polarized

Specifications

  • Double row
  • 26 contacts
  • Current rating: 1A
  • Mates with 2 rows of 0.025" square/diameter posts on patterns of 0.1" centers
    (straight double row or right angle double row, or shrouded box headers)
  • Industry standard IDC socket (plastic)
  • Temp. rating: -55°C to +105°C
  • Use crimper P/N 73252
  • Includes strain relief

    • Dimensions & Appearance

    Length:37.59 mm
    Body Orientation:Right Angle

    Features

    Terminal Pitch:0.1 in, 2.54 mm
    Number of Rows:2
    Housing Color:Black
    Maximum Contact Resistance:20 mOhm
    Contact Plating:Gold
    Contact Material:Copper Alloy
    Number of Contacts:26
    Housing Material:Polybutylene Terephthalate
    Gender:Receptacle
    Current Rating:1 A
    Voltage Rating:250 VAC, 250 VDC
    ,
