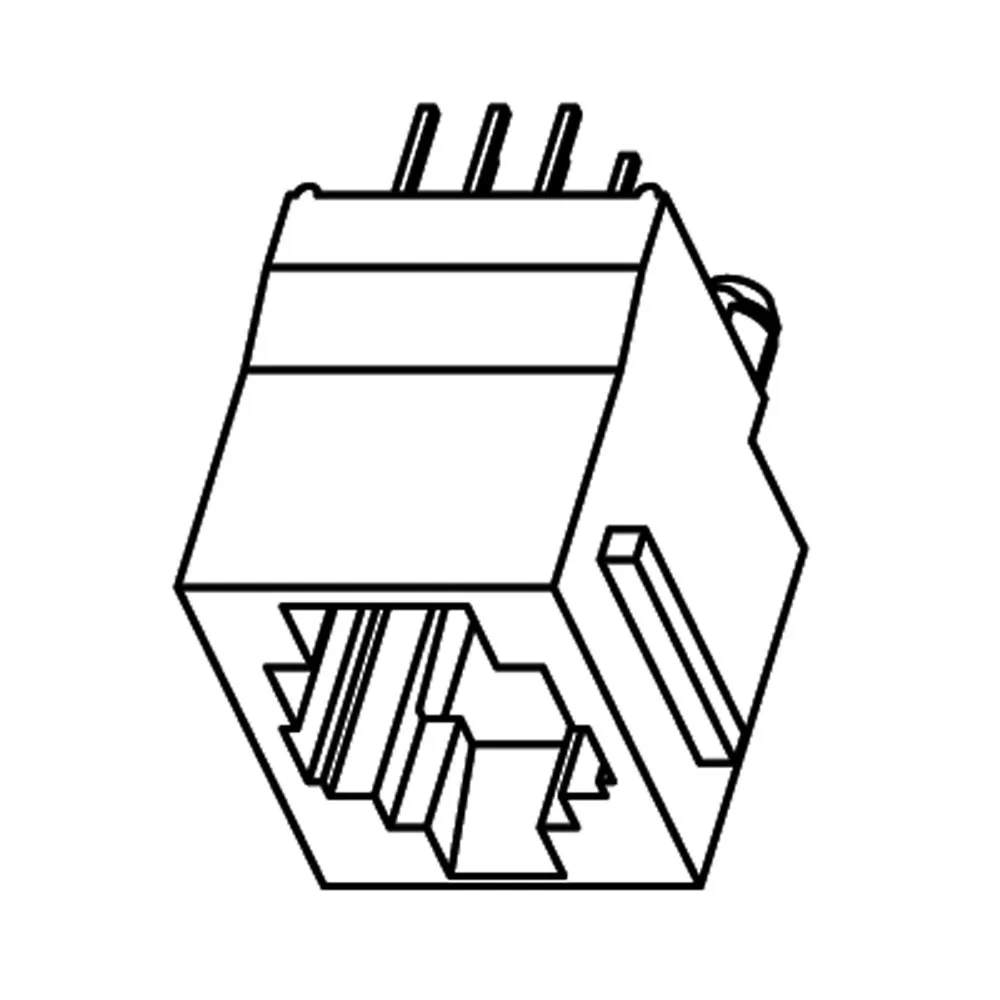

Modular Jack Connector 6P6C Vertical Unshielded Cat3
Features
- Connector Type: Jack
- Number of Ports: 1
- Number of Rows: 1
- Number of Positions/Contacts: 6P6C (RJ11, RJ12, RJ14, RJ25)
- Mounting Type: Through Hole
- Orientation: Vertical
- Termination: Solder
- Shielding: Unshielded
- Ratings: Cat3
- Features: Board Lock, panel stops
- LED Color: Does Not Contain LED
- Ingress Protection: n/a
- Tab Direction: User Selectable
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Contact Finish Thickness: 50 µin (1.27 µm)
- Housing Material: Polybutylene Terephthalate (PBT), Polyester
- Operating Temperature: -40°C to 85°C
- Base Number: 5520258
