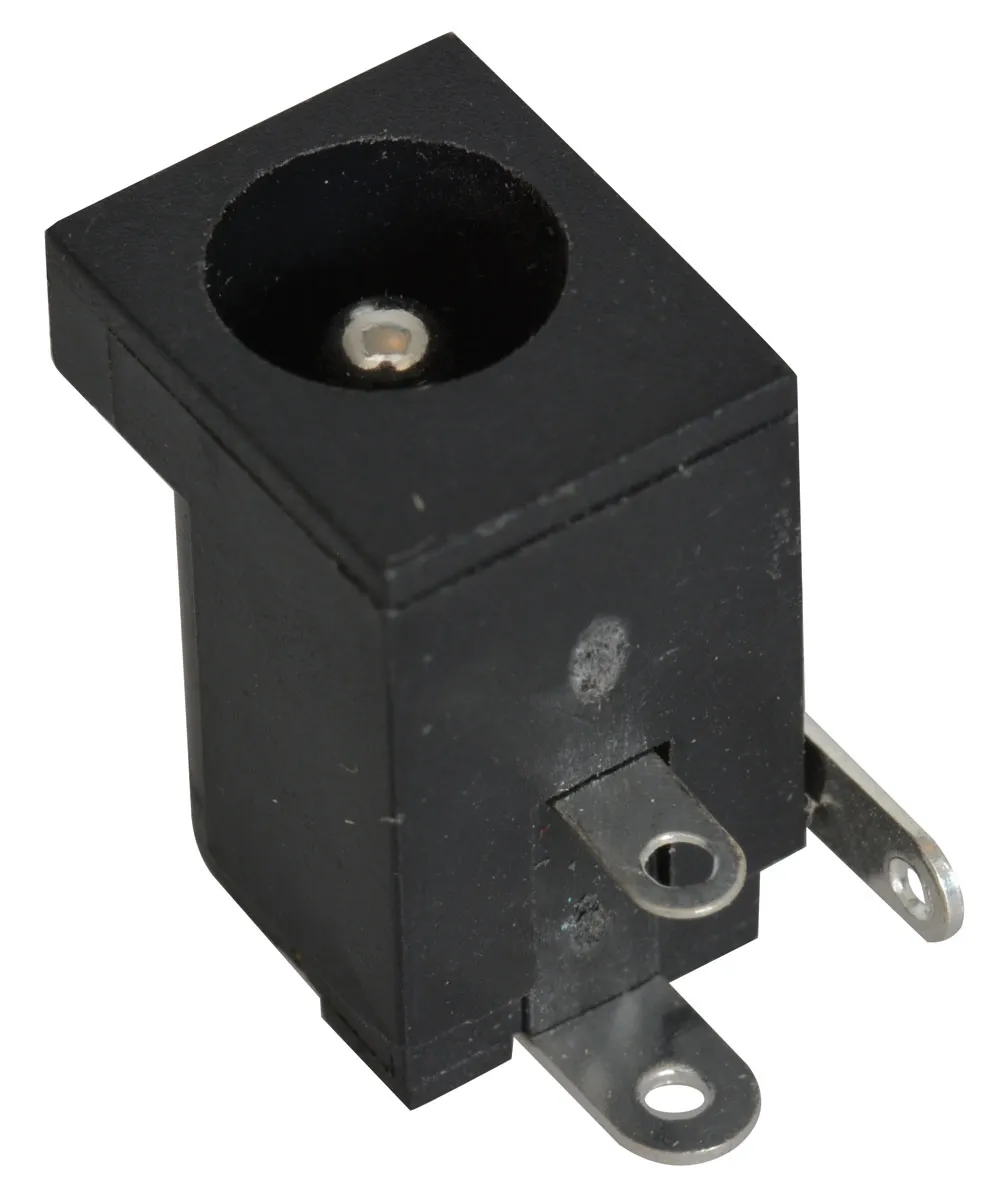

2.5mm Male Power Jack
Features
- Jack type: 2.5mm male
- Current rating: 5A max. @ 24VDC
- Insulation resistance: 100MΩ min. @ 500VDC
- Dielectric withstand voltage: 500VAC for 1 minute
- PCB mounting
- Solder eyelet terminals
- Size: 11.0mm H x 9.0mm W x 14.5mm D
- RoHS compliant
Product Identification
Product Type:DC Power Jack
Manufacturer Series:ValuePro
Dimensions & Appearance
Body Orientation:Right Angle, Square
Mounting Type:Panel Mount
Body/Shell Style:Jack
Features
Pin/Inner Diameter (mm):2.5mm
Voltage Rating:24 VDC
Termination:Solder Lug
Outer Diameter:5.5mm
Current Rating:5 A
