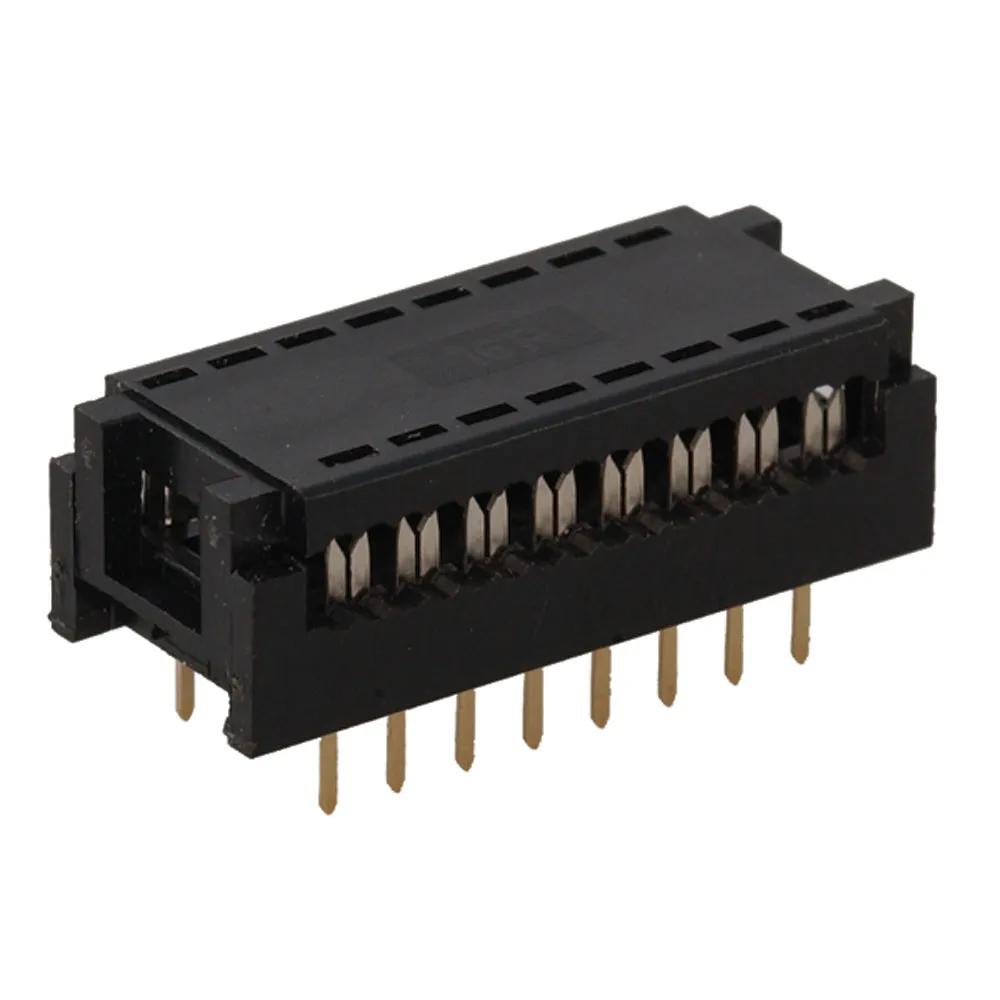

Connector IDC Flat Cable DIP Plug 16 Pin 0.3" Wide 0.1" Pitch Gold Pins

Specifications

  • Mates with standard 16 DIP sockets with 0.1" spacing
  • Use with 28 AWG flat ribbon cable
  • Plastic with gold-plated contacts
  • Current rating: 1A
  • Use with flat ribbon cable

Dimensions & Appearance

Width:0.3 in.
Length:25.12 mm
Body Orientation:Straight

Features

Terminal Pitch:0.1 in, 2.54 mm
Number of Rows:2
Housing Color:Black
Maximum Contact Resistance:30 mOhm
Contact Plating:Gold
Number of Contacts:16
Contact Material:Phosphor Bronze
Housing Material:Polybutylene Terephthalate
Gender:Plug
Current Rating:1 A
Voltage Rating:250 VAC, 250 VDC
,
