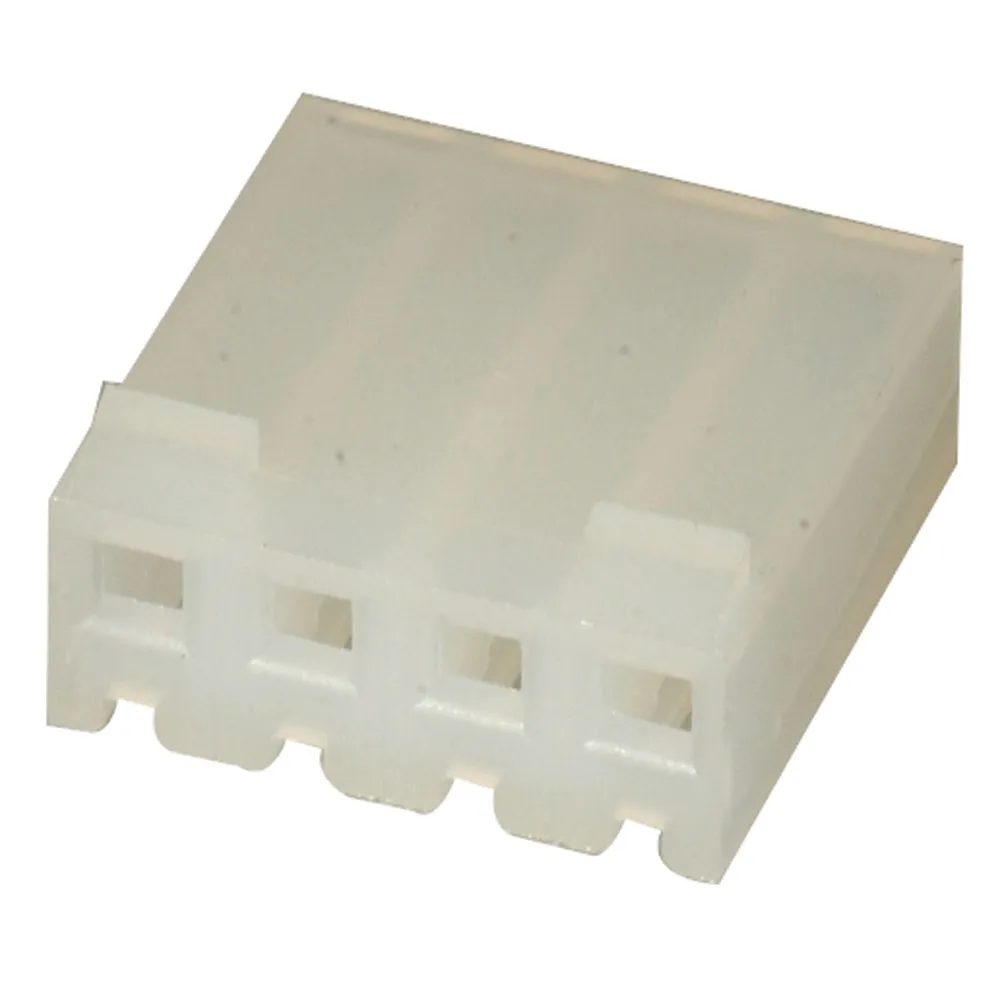

0.156" 4 Position KK Series Female Terminal Housing

Features

  • Locking Ramp
  • Current: 7A
  • Voltage:250V
  • Orientation: Straight

    • Product Identification

    Additional Feature:Contacts Not Included
    Product Type:Housing
    Manufacturer Series:KK396, 2139

    Dimensions & Appearance

    Mounting:Free Hanging (In-Line)
    Body Orientation:Straight
    Body/Shell Style:Receptacle

    Features

    Number of Rows:1
    Number of Contacts:4
    UL Flammability Code:94 V-2
    Housing Color:Natural, White
    Pitch:0.156 in., 3.96 mm
    Maximum Contact Resistance:N/A
    Fastening Method:Locking Ramp
    Contact Material:N/A
    Contact Plating:N/A
    Housing Material:Polyester
    Gender:Non-Gendered
    Termination:Crimp
    Voltage Rating:250 VAC, 250 VDC
    Current Rating:7 A
    ,
